Nio EL8 2024 Fuse Box

Nio EL8 2024 Fuse Box Info



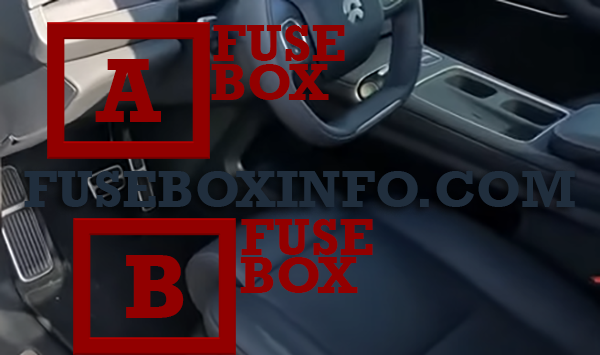

Passenger compartment fuse box location:

The instrument panel fuse box A (Main Fuse Box) is located to the left of the steering wheel, under the dashboard. The fuse box B (Pre-Fuse Box) is located in the floor, on the driver's side.



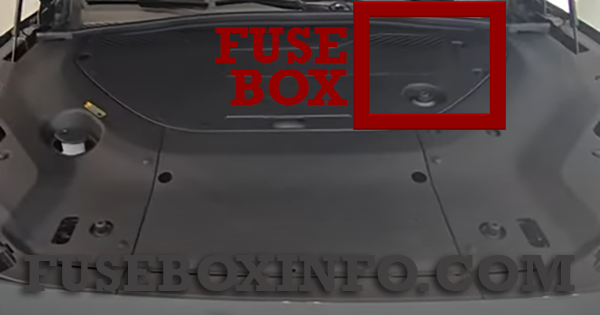

Under hood compartment fuse box location:

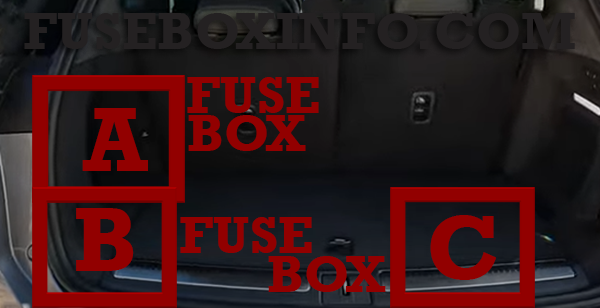

Luggage compartment fuse box location:

The luggage fuse box A (Left Fuse Box) is located on the left side of the trunk. The fuse box B (Pre-Fuse Box) is located on the left side of the trunk. The luggage fuse box C (Right Fuse Box) is located on the right side of the trunk.







Fuse Box Diagram | Layout

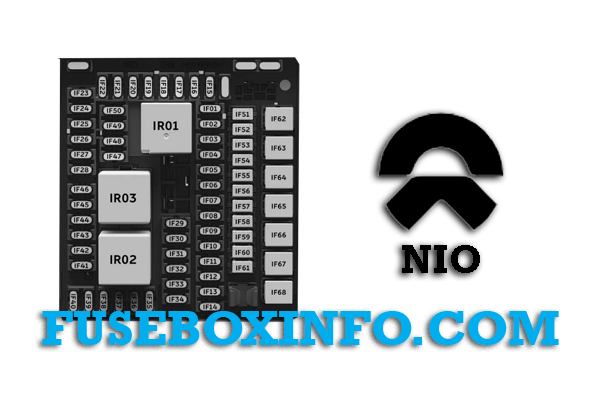

Passenger compartment fuse box A:

Fuse/Relay N° Rating Functions
IR01 ISO MINI KL15 relay
IR02 POWER MINI Power socket relay
IR03 POWER MINI Interior lighting/seat/trailer control relay
IF01 10A Battery management unit power supply 2
IF02 10A Rear feature console
IF03 10A Electronic shift module
IF04 10A Brake switch
IF05 10A Vehicle controller power supply 1
IF06 15A Central computing cluster (entertainment feature power supply 1)
IF07 10A Body gateway module power supply 1
IF08 10A Body controller (fuse box power supply)/front wireless charging module
IF09 10A Center display
IF10 30A Central computing cluster (ADAS feature power supply 1)
IF11 15A Pyrotechnic safety switch
IF12 10A Left/front Bluetooth antenna module
IF13 10A Steering column module
IF14 10A Head-up display/intelligent robot
IF15 10A Smart antennas
IF16 30A Central computing cluster (ADAS feature power supply 2)
IF17 10A A/C control unit
IF18 10A Four outer door handles/driver door switch/charging port capacitive sensor
IF19 10A IR01/IR02 relay coil-end
IF20 10A Diagnostic port
IF21 - -
IF22 10A ETC (CN)/alcohol interlock (EU)
IF23 15A Body controller (washer fluid pump)
IF24 10A A/C control unit/rain and light sensor/fragrance control module
IF25 20A Body controller power supply 1
IF26 20A Body controller power supply 2
IF27 10A Digital instrument cluster display
IF28 10A Radar sensor/parking controller
IF29 10A Electric power steering power supply 1
IF30 10A Electric power steering power supply 2
IF31 10A Airbag controller (KL15 power supply)
IF32 10A Vehicle controller (KL15 power supply)
IF33 10A Air conditioning control unit/ETC (CN)/rearview mirror assembly (KL15 power supply)
IF34 20A Left headlight
IF35 20A Right headlight
IF36 - -
IF37 10A Liftgate middle taillight
IF38 10A Body left taillight
IF39 10A Body right taillight
IF40 10A Body control module (IR01 relay feedback)/body gateway module (IR01 relay feedback)/IR03 relay coil-end
IF41 25A Front 12V power supply outlet
IF42 15A Center console armrest USB module
IF43 10A Body gateway module (IR02 relay feedback)
IF44 - -
IF45 10A Right rear trunk fuse box TRR02 relay/center console front storage box USB
IF46 - -
IF47 10A Interior lighting power supply 1
IF48 10A Interior lighting power supply 2
IF49 10A First-row and second-row seat massage
IF50 15A Trailer control module
IF51 30A Front right door control module/rear right door control module power supply 2
IF52 30A Driver seat control unit
IF53 30A Passenger seat control unit
IF54 30A Front left door control module power supply 1
IF55 30A Front right door control module power supply 1
IF56 30A Rear left door control module power supply 1
IF57 30A Rear right door control module power supply 1
IF58 30A Driver seat control unit
IF59 30A Passenger seat control unit
IF60 30A Second-row left seat control unit
IF61 30A Second-row right seat control unit
IF62 60A Brake pressure regulating module power supply 2
IF63 50A IR02 relay
IF64 40A IR01 relay
IF65 50A IR03 relay
IF66 40A Sunroof
IF67 30A Front left door control module/rear left door control module power supply 2
IF68 60A Brake pressure regulating module power supply 1

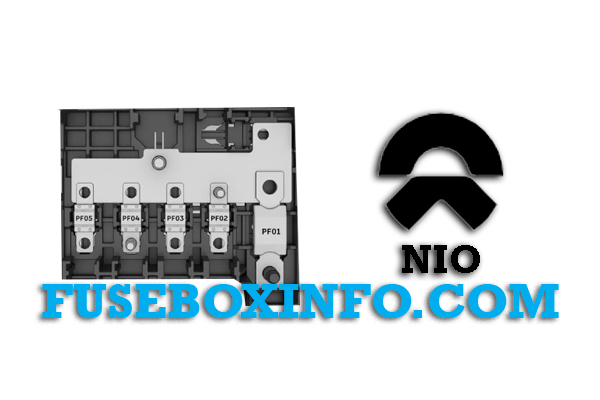

Passenger compartment fuse box B:

Fuse/Relay N° Rating Functions
PF01 450A High-voltage DC converter integrated component
PF02 200A Instrument panel fuse box
PF03 200A Front trunk fuse box
PF04 125A Electric power steering gear_1
PF05 125A Electric power steering gear_2

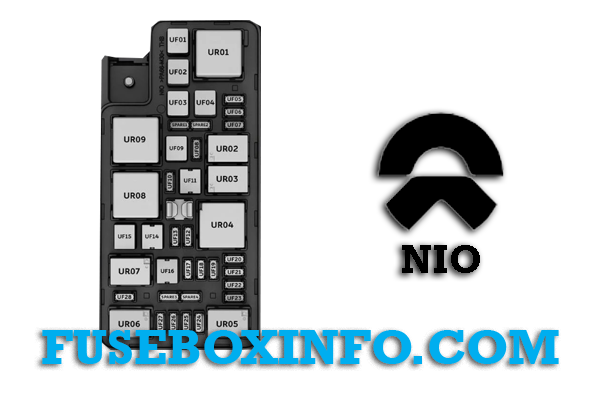

Under hood compartment fuse box:

Fuse/Relay N° Rating Functions
UR01 POWER MINI Cooling fan relay
UR02 ISO MICRO Steering wheel heating relay
UR03 ISO MICRO Electronic water pump - high-voltage battery relay
UR04 ISO MINI KL87 relay
UR05 ISO MICRO Horn relay
UR06 ISO MICRO Front windshield heating relay
UR07 ISO MICRO Electronic water pump - front motor relay
UR08 MINI Air supply unit relay
UR09 MINI Front fan relay
UF01 60A UR01 relay
UF02 40A Front row left retractor assembly
UF03 25A Front wiper motor
UF04 - -
UF05 10A High-voltage DC converter integrated component (CN)/high-voltage control system (EU)
UF06 10A Front inverter
UF07 15A UR02 relay
UF08 10A Charging indicator
UF09 50A UR09 relay
UF10 10A High-voltage control system (EU)
UF11 20A UR03 relay
UF12 - -
UF13 10A A/C system, UR09 Relay coil-end
UF14 20A UR07 relay
UF15 40A UR08 relay
UF16 - -
UF17 10A Integrated high-voltage distribution unit
UF18 15A Vehicle controller
UF19 - -
UF20 10A UR01/UR03 relay coil-end
UF21 10A Five-way cooling water valve
UF22 10A Brake switch
UF23 10A Front bumper movable grille
UF24 15A Flare
UF25 - -
UF26 15A Front windshield heating
UF27 - -
UF28 10A UR07 relay coil-end

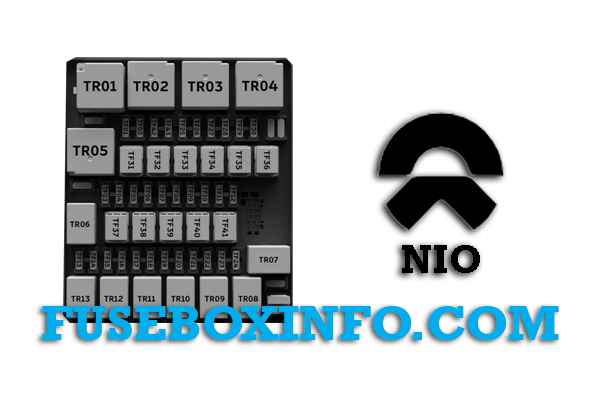

Luggage compartment fuse box A:

Fuse/Relay N° Rating Functions
TR01 - -
TR02 ISO MINI Rear windshield defog relay
TR03 ISO MINI KL15 relay (redundant backup)
TR04 - -
TR05 - -
TR06 - -
TR07 ISO MICRO Rear wiper relay
TR08 ISO MICRO Center console blower fan relay
TR09 - -
TR10 - -
TR11 - -
TR12 - -
TR13 - -
TF01 - -
TF02 - -
TF03 10A Battery management unit power supply 1
TF04 10A Body gateway module power supply 2
TF05 15A TR07 relay
TF06 10A Rear inverter
TF07 10A LiDAR
TF08 30A Central computing cluster (ADAS feature power supply 1)
TF09 - -
TF10 30A Central computing cluster (ADAS feature power supply 2)
TF11 30A Body controller (exterior lighting power supply 1)
TF12 30A Body controller (exterior lighting power supply 2)
TF13 10A Vehicle controller power supply 2
TF14 10A TR02 relay coil-end
TF15 10A Liftgate kick-activated sensor
TF16 15A Central computing cluster (entertainment feature power supply 2)
TF17 10A First and second-row seats control module common power supply
TF18 20A TR08 relay
TF19 10A TR03 relay coil-end
TF20 - -
TF21 10A AR extender
TF22 - -
TF23 20A Body controller
TF24 20A Trailer control module power supply 2
TF25 - -
TF26 - -
TF27 - -
TF28 - -
TF29 - -
TF30 - -
TF31 30A Flexible chassis controller power supply 4
TF32 20A Trailer control module power supply 1
TF33 30A Second-row left seat control module power supply 1
TF34 30A Liftgate control module
TF35 - -
TF36 30A Second-row right seat control module power supply 1
TF37 30A Flexible chassis controller power supply 1
TF38 20A Flexible chassis controller power supply 2
TF39 30A TR02 relay
TF40 40A TR03 relay
TF41 20A Flexible chassis controller power supply 3

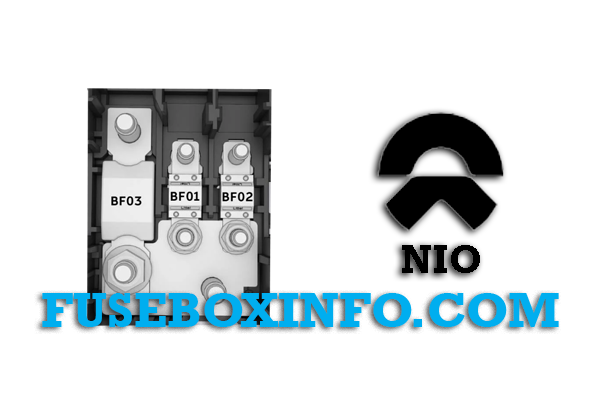

Luggage compartment fuse box B:

Fuse/Relay N° Rating Functions
BF01 200A Rear trunk fuse box
BF02 125A Right rear trunk fuse box
BF03 350A Front Pre-fuse Box

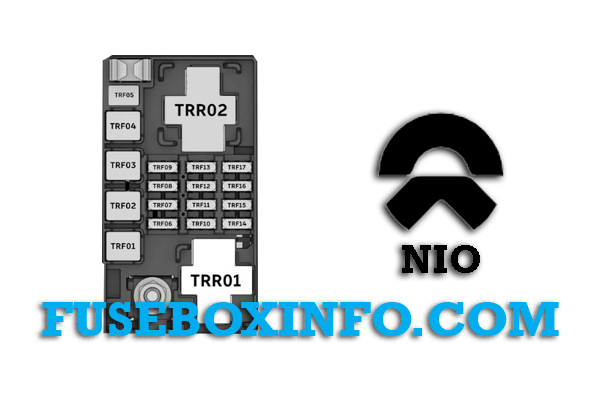

Luggage compartment fuse box C:

Fuse/Relay N° Rating Functions
TRR01 POWER MINI Rear fan relay
TRR02 POWER MINI Power socket relay
TRF01 30A Power amplifier control unit power supply 1
TRF02 30A Power amplifier control unit power supply 2
TRF03 20A TRR01 relay
TRF04 50A TRR02 relay
TRF05 15A Body controller (charging port flap)
TRF06 15A Three-in-one wireless charging board
TRF07 10A Child detection radar
TRF08 10A Right/rear/tail Bluetooth antenna module
TRF09 10A Refrigerator
TRF10 10A Charge port ground protection
TRF11 15A (Signature edition) second-row USB charge port
TRF11 10A (Signature edition) second-row USB charge port - left
TRF12 10A (Signature edition) second-row USB charge port - right
TRF13 10A (Signature edition) third-row USB charge port - left
TRF14 10A (Signature edition) third-row USB charge port - right
TRF15 25A Rear 12V power supply outlet
TRF16 - -
TRF17 - -
