Nio ET7 2023 Fuse Box Info

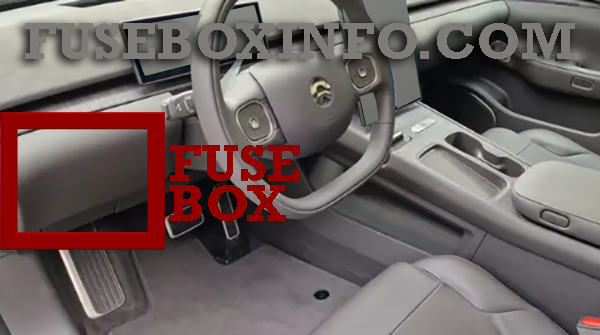

Passenger compartment fuse box location:
The instrument panel fuse box is located to the left of the steering wheel, under the dashboard.

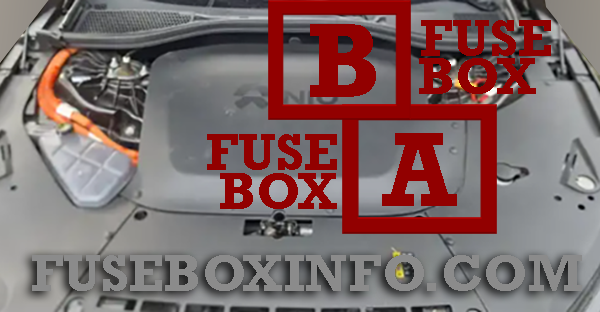

Under hood compartment fuse box location:

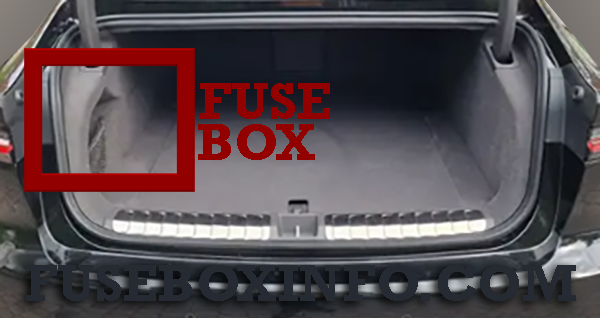

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IR01 | 40A | IF29/IF30/IF31/IF32/IF33/IF34/IF35/IF36/IF37/IF38/IF39/IF40 fuse (KL15 power supply) |
| IR02 | 70A | IF41/IF42/IF43/IF44/IF45/IF46 fuse (KL15 power supply) |
| IR03 | 70A | IF47/IF48/IF49/IF50 (KL15 power supply) |
| IF01 | 10A | Battery management unit (KL30 power supply) |
| IF02 | 15A | Pyrotechnic safety switch power (KL30 power supply) |
| IF03 | 10A | Electronic gear selection module (KL30 power supply) |
| IF04 | 10A | Brake switch (KL30 power supply) |
| IF05 | 10A | Vehicle controller 1 (KL30 power supply) |
| IF06 | 20A | Infotainment system console 1 (KL30 power supply) |
| IF07 | 10A | Body gateway module 1 power supply |
| IF08 | 10A | Front body control module (safe box) KL30 power supply/wireless charging power supply |
| IF09 | 10A | Center display power supply |
| IF10 | 30A | ADAS main controller 1 (KL30 power supply) |
| IF11 | 10A | Smart antenna power supply |
| IF12 | 10A | Bluetooth digital key antenna module power supply |
| IF13 | 10A | Steering column power supply |
| IF14 | 10A | Heads-up display/smart robot (KL30 power supply) |
| IF15 | 10A | LiDAR sensor power supply |
| IF16 | 30A | ADAS main controller 2 (KL30 power supply) |
| IF17 | 10A | Climate control module (KL30 power supply) |
| IF18 | 10A | Exterior door handle/driver’s side door control switch power supply |
| IF19 | 10A | IR01/IR02 relay power supply |
| IF20 | 10A | Diagnosis interface (KL30 power supply) |
| IF21 | 30A | Front body controller (exterior light 1) KL30 power supply |
| IF22 | 10A | ETC (KL30 power supply) |
| IF23 | 15A | Front body controller (washer pump) KL30 power supply |
| IF24 | 10A | Rear control panel/rain & light sensor/fragrance control module power supply |
| IF25 | 20A | Front body control module 1 (KL30 power supply) |
| IF26 | 20A | Front body control module 2 (KL30 power supply) |
| IF27 | 10A | Digital instrument cluster (KL30 power supply) |
| IF28 | 10A | Radar/parking radar controller power supply |
| IF29 | 10A | Electric power steering power supply 1 |
| IF30 | 10A | Electric power steering power supply 2 |
| IF31 | 10A | Airbag controller (KL15 power supply) |
| IF32 | 10A | Body controller (KL15 power supply) |
| IF33 | 10A | Climate control module/ETC/Rearview mirror assembly (KL15 power supply) |
| IF34 | 15A | Left headlight (KL15 power supply) |
| IF35 | 15A | Right headlight (KL15 power supply) |
| IF36 | 10A | Ambient lighting/vanity mirror light/reading light/multi-color footwell light/storage box light (KL15 power supply) |
| IF37 | 10A | Middle liftgate light (KL15 power supply) |
| IF38 | 10A | Left body taillight (KL15 power supply) |
| IF39 | 10A | Right body taillight (KL15 power supply) |
| IF40 | 10A | Front body controller KL15_1/KL15_2 relay feedback/IR03 relay coil power supply |
| IF41 | 25A | Front 12V power socket power supply |
| IF42 | 10A | Safe box USB port power supply |
| IF43 | 10A | Front body controller power socket relay feedback |
| IF44 | 10A | Rear control panel USB port (KL15 power supply) |
| IF45 | 10A | Rear seat USB power supply |
| IF46 | 25A | Rear 12V power socket power supply |
| IF47 | 15A | Driver seat pneumatic lumbar support/fan power supply |
| IF48 | 15A | Passenger seat pneumatic lumbar support/fan power supply |
| IF49 | 15A | Rear passenger backrest ventilation/massage power supply |
| IF50 | 15A | (Reserved) |
| IF51 | 25A | Front body controller (horn) KL30 power supply |
| IF52 | 25A | Driver seat control power supply |
| IF53 | 25A | Passenger seat control power supply |
| IF54 | 30A | Front left door control module KL30 power supply 1 |
| IF55 | 20A | Front left door control module KL30 power supply 2 |
| IF56 | 30A | Front right door control module KL30 power supply 1 |
| IF57 | 20A | Front right door control module KL30 power supply 2 |
| IF58 | 30A | Rear left door control module KL30 power supply 1 |
| IF59 | 20A | Rear left door control module KL30 power supply 2 |
| IF60 | 30A | Rear right door control module KL30 power supply 1 |
| IF61 | 20A | Rear right door control module KL30 power supply 1 |
| IF62 | 40A | Brake pressure regulator motor 2 power supply |
| IF63 | 50A | IR02 relay switch power supply |
| IF64 | 40A | IR01 relay switch power supply |
| IF65 | 50A | IR03 relay switch power supply |
| IF66 | 25A | (Reserved) |
| IF67 | 20A | Brake pressure adjustment module power supply |
| IF68 | 40A | Brake pressure regulator motor 1 power supply |
Under hood compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| UR01 | - | Cooling fan assembly (KL87 power supply) |
| UR02 | - | Steering column module (steering wheel heating power supply) |
| UR03 | - | Electronic water pump - power battery (KL87 power supply) |
| UR04 | - | UF12/UF13/UF17/UF18/UF20/UF21/UF22/UF23/UF28 fuse power supply |
| UR05 | - | (Reserved) |
| UR06 | - | Front windshield heating relay |
| UR07 | - | Electronic water pump - front motor (KL87 power supply) |
| UR08 | - | Air supply unit motor power supply |
| UR09 | - | Front fan (KL87 power supply) |
| UR10 | - | (Reserved) |
| UF01 | 60A | UR01 relay switch power supply |
| UF02 | - | (Reserved) |
| UF03 | 25A | Front body controller (front wiper motor) KL30 power supply |
| UF04 | - | (Reserved) |
| UF05 | 10A | High voltage DC converter integrated component |
| UF06 | 10A | Front inverter (KL30 power supply) |
| UF07 | 15A | UR02 relay switch power supply |
| UF08 | - | (Reserved) |
| UF09 | 50A | UR09 relay switch power supply |
| UF10 | - | (Reserved) |
| UF11 | 20A | UR03 relay switch power supply |
| UF12 | 10A | Electronic shift module (KL87 power supply) |
| UF13 | 10A | Climate control system/PM2.5 sensor/compressor assembly/heat exchanger electronic expansion valve/heat pump electronic expansion valve (KL87 power supply) |
| UF14 | 20A | UR07 relay switch power supply |
| UF15 | - | (Reserved) |
| UF16 | - | (Reserved) |
| UF17 | 10A | Rear inverter (KL87 power supply) |
| UF18 | 15A | Vehicle controller (KL87 power supply) |
| UF19 | - | (Reserved) |
| UF20 | 10A | UR01/UR03 relay coil power supply |
| UF21 | 10A | Five-way cooling water valve (KL87 power supply) |
| UF22 | 10A | Brake switch (KL87 power supply) |
| UF23 | 10A | Front bumper movable grille (KL87 power supply) |
| UF24 | - | (Reserved) |
| UF25 | - | (Reserved) |
| UF26 | 15A | Front windshield heating |
| UF27 | - | (Reserved) |
Under hood compartment fuse box B (Pre-Fuse Box):
| Fuse/Relay N° | Rating | Functions |
| DCDC | 450A | DC/DC converter |
| UEC POWER | 200A | Underhood electrical box |
| IEC POWER | 200A | Instrument panel fuse box |
| TEC POWER | 200A | Trunk Fuse Box |
| EPS1 POWER | 125A | Electric power steering gear |
| EPS2 POWER | 125A | Electric power steering gear |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| TR01 | - | (Reserved) |
| TR02 | - | Rear defogger power supply |
| TR03 | - | KL15 power supply (redundancy) |
| TR04 | - | (Reserved) |
| TR05 | - | (Reserved) |
| TR06 | - | (Reserved) |
| TF01 | - | (Reserved) |
| TF02 | 40A | IR02 relay switch power supply |
| TF03 | 40A | IR03 relay switch power supply |
| TF04 | - | (Reserved) |
| TF05 | 30A | Liftgate lock power supply |
| TF06 | 30A | Amplifier control unit power supply 1 |
| TF07 | 40A | Front retractor assembly - left (KL30 power supply) |
| TF08 | 10A | Rear inverter (KL30 power supply) |
| TF09 | 10A | Body controller 2 (KL30 power supply) |
| TF10 | 10A | Battery management unit power supply 1 (KL30) |
| TF11 | 20A | Infotainment system console (KL30 power supply) 2 |
| TF12 | 10A | Body gateway module power supply 2 |
| TF13 | 30A | ADAS domain controller power supply 2 |
| TF14 | 30A | ADAS domain controller power supply 4 |
| TF15 | 30A | Front body controller (exterior light 2) KL30 power supply |
| TF16 | 10A | Liftgate kick sensor power supply |
| TF17 | 10A | Right charging indicator (KL30 power supply) |
| TF18 | - | (Reserved) |
| TF19 | 10A | Rear millimeter-wave radar power supply |
| TF20 | - | (Reserved) |
| TF21 | 10A | TR02/TR03 relay coil power supply |
| TF22 | - | (Reserved) |
| TF23 | 20A | Front body controller (rear seat heating/backlight) KL30 power supply |
| TF24 | 20A | Flexible chassis controller power supply 3 |
| TF25 | 20A | Flexible chassis controller power supply 4 |
| TF26 | - | (Reserved) |
| TF27 | 20A | Flexible chassis controller power supply 2 |
| TF28 | 30A | Flexible chassis controller power supply 1 |
| TF29 | 30A | Amplifier control unit power supply 1 |
| TF30 | - | (Reserved) |
| TF31 | - | (Reserved) |
| TF32 | - | (Reserved) |
| TF33 | - | (Reserved) |
| TF34 | - | (Reserved) |
| TF35 | - | (Reserved) |
