MG ZS EV 2022 Fuse Box Info

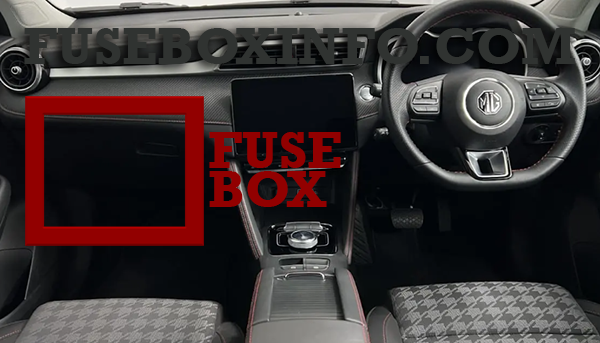

Passenger compartment fuse box location:
The fuse box is located below the glove box at the front passenger side.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Charging Plug Unlock Relay, Charging Plug Lock Relay |
| 2 | 10A | Diagnostic Line Connector |
| 3 | 5A | Combined Charging Unit, Electric Vehicle Communication Controller, Battery Pressure Alarm Switch |
| 4 | 15A | Front Wash Relay, Rear Wash Relay |
| 5 | 5A | Sensing Diagnostic Module |
| 6 | 5A | High Voltage PTC, ESS PTC |
| 7 | 10A | Energy Storage System |
| 8 | 5A | EPB Switch, Tyre Pressure Monitoring System |
| 9 | 5A | Vehicle Control Unit |
| 10 | 10A | Pedestrian Alert Control Module |
| 11 | 5A | Passive Entry Passive Start Module |
| 12 | 5A | Power Electronic Box |
| 13 | 30A | Driver Seat Adjust Switch |
| 14 | 5A | Backup Immobilizer Coil |
| 15 | 15A | Front Power Socket |
| 16 | 5A | Outside Mirror and Master Light Height Adjust Switch, Top USB, Left Headlamp Assembly, Right Headlamp Assembly |
| 17 | 5A | Phone Wireless Charger |
| 18 | 5A | Rear USB |
| 19 | 5A | E-Call TBOX |
| 20 | 5A | TBOX |
| 21 | 10A | Around View Module, Radio Broadcasting Reception Module, Front Central Display |
| 22 | 10A | Exterior Mirrors Heating Element |
| 23 | 25A | Rear Windscreen Heating Element |
| 24 | 20A | Front Infotainment Control Module |
| 25 | 15A | Automatic Temperature Controller |
| 26 | 5A | Instrument Pack |
| 27 | 10A | Information Faceplate, Outside Mirror and Master Light Height Adjust Switch, Driver Door Switch Pack |
| 28 | 5A | Rear Driving Assistance System, Rain Light Sensor |
| 29 | 10A | Gateway |
| 30 | 10A | Gateway |
| 31 | 30A | Sunroof Motor |
| 32 | 30A | Sunshade Motor |
| 33 | 5A | Shift Control Unit |
| 34 | 10A | Electronic Steering Column Lock |
| 35 | 15A | Super Lock Relay |
| 36 | 5A | Charging Flap Motor |
| 37-41 | - | - |
| 42 | 40A | Stability Control Module (Valve) |
| 43 | 30A | Driver Window Lifter, Rear Right Window Lift Switch |
| 44 | 30A | Passenger Window lift Switch, Rear Left Window Lift Switch |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | - | - |
| F2 | 15A | PEB Coolant Pump, Cooling Fan Relay Pack |
| F3 | - | - |
| F4 | - | - |
| F5 | 10A | Electric Air Conditioning Compresso |
| F6 | - | - |
| F7 | 30A | Front Wiper Enable Relay, Front Wiper High/Low Speed Relay |
| F8 | - | - |
| F9 | - | - |
| F10 | 10A | Right Headlamp Assembly |
| F11 | 10A | Left Headlamp Assembly |
| F12 | - | - |
| F13 | 15A | Horn Relay |
| F14 | - | - |
| F15 | 5A | Brake Pedal Switch |
| F16 | 15A | Rear Wiper Relay |
| F17 | - | - |
| F18 | 5A | Sensing Diagnostic Module |
| F19 | 5A | Vehicle Control Unit |
| F20 | - | - |
| F21 | 15A | Body Control Module |
| F22 | 10A | Front Left Seat Heating Relay |
| F23 | 10A | Front Right Seat Heating Relay |
| F24 | - | - |
| F25 | 15A | Body Control Module |
| F26 | - | - |
| F27 | 5A | Body Control Module, EVP Relay, Front Breathing Lamp |
| F28 | 15A | ESS Coolant Pump Relay |
| F29 | 10A | - |
| F30 | 10A | Shift Control Unit, Body Control Module, Instrument Pack, PDC Sensor, Front View Control Module, Front Detection Radar, E-Call TBOX, Airbag Display Module |
| FL1 | 200A | Combined Charging Unit |
| FL2 | 80A | Electric Power Steering Module |
| FL3 | 40A | Cooling Fan Relay Pack |
| FL4 | 80A | Passenger Compartment Fuse F1-F7, F19-F21, F34, F35, F42, F44 |
| FL5 | 80A | Windscreen/Mirror Heating Relay, Passenger Compartment Fuse F8-F14, F24-F33, F43 |
| FL6 | - | - |
| FL7 | 40A | Automatic Temperature Controller, Blower |
| FL8 | 20A | Body Control Module |
| FL9 | 40A | Stability Control Module (Pump) |
| FL10 | 30A | Body Control Module |
| FL11 | - | - |
| FL12 | 20A | Body Control Module |
| FL13 | - | - |
| FL14 | - | - |
| FL15 | 30A | KLR Relay |
| FL16 | 30A | Electric Parking Motor Control Unit |
| FL17 | 40A | EVP Relay |
