MG MG5 EV 2023 Fuse Box Info

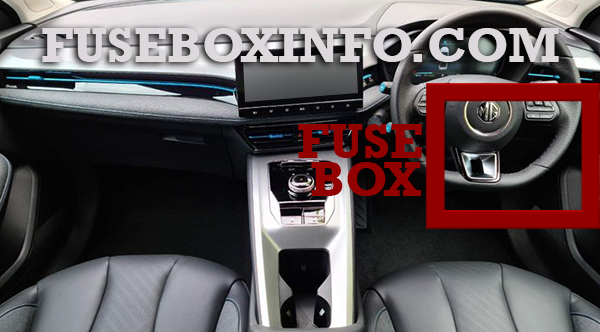

Passenger compartment fuse box location:
The fuse box is located behind the driver side knee trim panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Front Console Power Socket |
| 2 | 5A | Interior Mirror, Rear Console USB Charging Ports |
| 3-17 | - | - |
| 18 | 5A | Vehicle Control Unit, Sensing Diagnostic Module (Airbag), Shifter Control Unit, Instrument Pack, Front Detection Radar, Front View Control Module |
| 19 | 5A | Digital Audio Broadcasting Module |
| 20 | 10A | AC Control Module |
| 21 | 10A | Front Right Seat Heating Element |
| 22 | 5A | Diagnostic Socket |
| 23 | 10A | Front Left Seat Heating Element |
| 24 | 5A | PEPS Control Module |
| 25 | - | - |
| 26 | 30A | Front Right Window Lift, Rear Right Window Lift |
| 27 | - | - |
| 28 | 5A | Backup Immobilizer Coil |
| 29 | 15A | Entertainment System |
| 30 | 5A | Instrument Pack |
| 31 | 5A | EPB Switch |
| 32 | 5A | Driver Door Switch Pack, Tyre Pressure Monitoring System |
| 33 | 10A | Sensing Diagnostic Module (Airbag) |
| 34 | 10A | Gateway |
| 35 | - | - |
| 36 | 15A | Towing Device Reserved Interface |
| 37 | 25A | Driver Electric Seat Adjustment |
| 38 | - | - |
| 39 | 40A | Blower |
| 40-43 | - | - |
| 44 | 5A | 360 Around View Module |
| 45 | - | - |
| 46 | 10A | Electronic Steering Column Lock |
| 47 | 5A | High-voltage PTC |
| 48 | - | - |
| 49 | 5A | TBOX |
| 50 | 10A | Gateway |
| 51 | 5A | Shifter Control Unit |
| 52 | - | - |
| 53 | 5A | Pedestrian Alert Control Module |
| 54 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 121Ω | On-board Network Terminal Resistance |
| 2 | 121Ω | On-board Network Terminal Resistance |
| 3 | 30A | Body Control Module |
| 4 | 20A | Body Control Module |
| 5 | 15A | Body Control Module |
| 6 | 5A | Charging Plug Latch |
| 7 | 5A | Vehicle Control Unit |
| 8 | 5A | Electrical Battery Sensor |
| 9 | 15A | Horn Relay, Horn |
| 10 | 10A | Electric Vehicle Communication Controller |
| 11 | 15A | High Voltage Battery Pack |
| 12-24 | - | - |
| 25 | 30A | Front Left Window Lift, Rear Left Window Lift |
| 26 | 30A | Stability Control System (Valve) |
| 27 | 15A | Windscreen Washer System |
| 28 | 10A | Body Control Module |
| 29 | 20A | Body Control Module |
| 30 | 25A | Front Wiper System |
| 31 | 10A | Power Electronic Box |
| 32 | 25A | Body Control Module |
| 33 | 15A | Superlock System |
| 34 | 15A | Main relay, Power Electronic Box Water Pump, Brake Lamp Switch |
| 35 | 5A | Combined Charging Unit |
| 36 | 5A | Electric Air Conditioning Compressor, Charging Status Lamp |
| 37 | 10A | Daytime Running Lamp |
| 38 | 15A | Rear Wiper System |
| 39 | 15A | High-Voltage Battery Pack Coolant Pump |
| 40-42 | - | - |
| 43 | 7.5A | Heated Exterior Rearview Mirror |
| 44 | 25A | Heated Rear Window |
| 45 | - | - |
| 46 | 5A | Headlamp Levelling Adjustment Switch, Manual Headlamp Levelling |
| 47 | - | - |
| 48 | 5A | Charging Flap Motor |
| 49-52 | - | - |
| A | 80A | Electric Power Steering Module |
| B | - | - |
| C | 40A | Stability Control System (Pump) |
| D | - | - |
| E | 40A | Electric Parking Motor Control Unit |
| F | 30A | Electrical Parking Brake Control Module |
| G | 50A | Cooling Fan |
| H | 50A | iBooster |
| M | 150A | Combined Charging Unit |
| L | 30A | Electronic Parking Brake Control Module |
| K | 100A | Passenger Compartment Fuse Box |
