MG ZS 2022 Fuse Box Info

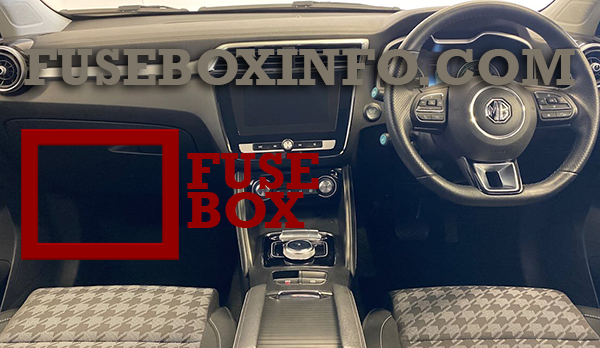

Passenger compartment fuse box location:
The fuse box is located below the glove box at the front passenger side.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Front Washer Relay, Rear Washer Relay |
| 2 | 10A | Diagnostic Socket |
| 3 | 5A | PRND Display |
| 4 | 10A | Front Left Seat Heating Relay |
| 5 | 10A | Airbag ECU (SDM) |
| 6 | 10A | Keyless Start/Stop Switch, Gateway |
| 7 | 30A | Driver Seat Adjust Switch |
| 8 | 15A | Super Lock Relay |
| 9-11 | - | - |
| 12 | 5A | Left Rear Driving Assistance Radar |
| 13-14 | - | - |
| 15 | 15A | Front Power Socket |
| 16 | 5A | Front Courtesy Lamp, Outside Mirror and Master Light Height Adjust Switch, Top USB, Left Headlamp Assembly, Right Headlamp Assembly |
| 17 | 5A | Rear USB |
| 18 | 5A | EPB Switch |
| 19 | 5A | Outside Mirror and Master Light Height Adjust Switch, Rain Light Sensor |
| 20 | 10A | Front Right Seat Heating Relay |
| 21 | 10A | 360° View Module, Passenger Compartment Fuse F12 |
| 22 | 10A | Exterior Mirrors Heating Element |
| 23 | 25A | Rear Windscreen Heating Element |
| 24 | 20A | Front Central Display, Front Infotainment Control Module |
| 25 | 10A | Electronic Temperature Controller |
| 26 | 5A | Instrument Pack |
| 27 | 10A | Transmission Control Module-AT |
| 28 | 5A | Information Faceplate |
| 29 | 30A | Sunroof |
| 30 | 5A | DAB Module |
| 31 | 5A | Tyre Pressure Monitoring System |
| 32 | 10A | Electronic Steering Column Lock |
| 33 | 30A | Sunroof |
| 34-41 | - | - |
| 42 | 25A | Stability Control Module(Valve)-MT |
| 42 | 40A | Stability Control Module(Valve)-AT |
| 43 | 30A | Passenger Window lift Switch, Rear Left Window Lift Switch |
| 44 | 30A | Driver Door Switch Pack, Driver Window Lifter, Rear Right Window Lift Switch |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | 10A | Right Headlamp Assembly |
| F2 | 15A | Downstream Lambda Sensor, Upstream Lambda Sensor, Positive Temperature Coefficient (1.5L), Intake Variable Camshaft Timing (1.0T), Exhaust Variable Camshaft Timing(1.0T), Oil Control Valve (1.0T), Canister Purge Valve (1.0T) |
| F3 | 10A | Left Headlamp Assembly |
| F4 | 10A | Compressor Relay |
| F5 | 5A | Engine Control Module |
| F6 | 10A | Fuel Injector (1.5L) |
| F7 | 30A | Front Wiper Enable Relay, Front Wiper High/Low Speed Relay |
| F8 | 5A | Cooling Fan Relay Pack, Brake Pedal Switch, Fuel Pump Relay, AC Pressure Switch, Neutral Switch (1.5L) |
| F9 | 20A | Fuel Pump Relay |
| F10 | 10A | Right Headlamp Assembly |
| F11 | 10A | Left Headlamp Assembly |
| F12 | 30A | Ignition Coil, Engine Control Module |
| F13 | 10A | Horn Relay |
| F14 | - | - |
| F15 | 10A | Intake Variable Camshaft Timing (1.5L), Exhaust Variable Camshaft Timing (1.5L), Canister Purge Valve (1.5L), Electronic Thermostat (1.0T), Electronic Water Pump (1.0T), Dump Valve (1.0T), Waste Gate Control Valve (1.0T), Clutch Master Cylinder Sensor (1.0T) |
| F16 | 15A | Rear Wiper Relay |
| F17 | 10A | Fog Lamp Relay |
| F18 | 5A | Airbag ECU (SDM) |
| F19 | 5A | Instrument Pack, Front Detect Radar, Front View Control Module, Shifter Mechanism, Reverse Lamp Switch, DC/DC Convertor, Airbag Display Module |
| F20 | 5A | Engine Control Module |
| F21 | 5A | Body Control Module |
| F22 | - | - |
| F23 | - | - |
| F24 | - | - |
| F25 | 30A | Body Control Module |
| F26 | - | - |
| F27 | 15A | Body Control Module |
| F28 | - | - |
| F29 | - | - |
| F30 | 5A | Engine Control Module |
| FL1 | 150A | Alternator |
| FL2 | 80A | Electric Power Steering Module |
| FL3 | 40A | Cooling Fan Relay Pack |
| FL4 | 80A | Windscreen/Mirror Heating Relay, Passenger Compartment Fuse F18, F19, F20, F21, F42, F43, F44 |
| FL5 | 80A | KLR Relay, Passenger Compartment Fuse F1, F2, F3, F4, F5, F6, F7, F8, F24, F25, F26, F27, F28, F29, F30, F31, F32, F33 |
| FL6 | - | - |
| FL7 | 40A | Electronic Temperature Controller, Blower |
| FL8 | 20A | Body Control Module |
| FL9 | 40A | Stability Control Module (Pump) |
| FL10 | - | - |
| FL11 | - | - |
| FL12 | - | - |
| FL13 | 30A | Starter Relay |
| FL14 | - | - |
| FL15 | - | - |
| FL16 | 30A | DC/DC Convertor |
| FL17 | - | - |
