Polaris RZR Pro S 2026 Fuse Box Info

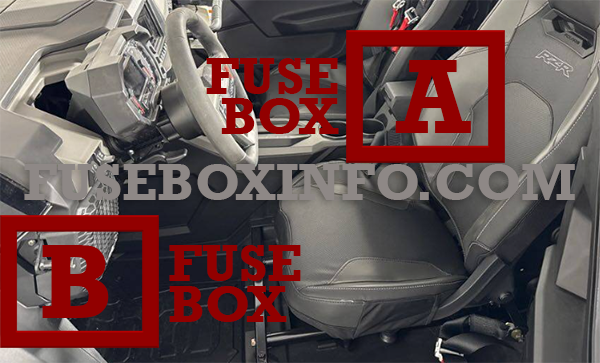

Passenger compartment fuse box location:
The fuse box A is beneath the armrest and can be accessed by removing the bed of the armrest storage compartment. The fuse box B is underneath the driver’s side dash, above the throttle pedal.
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay | Rating | Functions |
| PDM1 | 30A | Power to Secondary Fuse Center for Lights, Instrumentation, and Accessory Relay |
| PDM2 | 30A | Power to Secondary Fuse Center for Auxiliary Outlets, Chassis, SCM, and Shock Fuse |
| PDM3 | 30A | Power to Secondary Fuse Center for Fuel, LCAC, and EFI Fuse |
| FAN | 30A | Engine Cooling Fan |
| EPS | 50A | Electronic Power Steering |
| AUD AMP | 30A | Audio Amplifier |
| VREG 1 | 40A | Voltage Regulator (Driver) |
| VREG 2 | 40A | Voltage Regulator (Passenger) |
| PULSE PWR | 200A | Battery Powerto Polaris Pulse and 6AWG Cable |
Passenger compartment fuse box B:
| Fuse/Relay | Rating | Functions |
| LCAC | 7.5A | Water Pump |
| FUEL | 10A | Fuel Pump |
| TERM BLK | 10A | Terminal Block Accessory |
| INST ACCY | 7.5A | Diagnostic Accessory, Interior LED Light, Display Accessory (optional) |
| PWR PT 1 | 10A | 12V Socket (in front of gear selector) |
| INST UNSW | 7.5A | Display (optional), Gauge, Diagnostic |
| LIGHTS | 7.5A | Headlights, Taillights, Accent Lights (optional), Brake Lights |
| CHASSIS | 7.5A | AWD Switch Light, Oxygen Sensor Heater,EPS Wake-Up, Vehicle Speed Sensor, Seat Belt Switch,SCM Wake-Up (optional), SCM Mode Switch (optional), AWD Coil, Gauge, Waste Gate |
| EFI | 10A | Accessory Relay Coil, ECM Wake-Up, Pump Relay Coil, Chassis Relay Coil, Start Relay Coil, EFI Relay Coil, Injectors, SCM Relay Coil (optional), Lights Relay Coil, Ignition Coil, Starter Solenoid Coil, Brake Relay Coil |
| COIL | 7.5A | Coilon Plug |
| CHARGE | 15A | Charge Port |
| DYNAMIX Models | ||
| SCM | 7.5A | Shock Control Module |
| SHOCK | 15A | Shock Power |
| SUB | 40A | Audio Subwoofer (For vehicles equipped with subwoofers,the fuses are located underneath the front storage compartment above the center console. Open the storage compartment and unlatchthe four clipsholding the storage trayin place to access the fuses) |
In the event of faults or intermittent power to functions connected to more than just one fuse, a solution maybe to replace one of the PDM fuses.This is because power routes from the PDM fuses to different “downstream” fuses. See the table below for details:
| PDM Fuse | “Downstream” Fuse |
| PDM 1 (30A) | INST UNSW (7.5A) |
| LIGHTS 1 (7.5A) | |
| LIGHTS 2 (10A) | |
| INTR ACCY (10A) | |
| PDM 2 (30A) | PWR PT1 (10A) |
| CHASSIS (7.5A) | |
| SCM (7.5A) | |
| SHOCK (15A) | |
| CHARGE FUSE (15A) | |
| PDM 3 (30A) | EFI (10A) |
| LCAC (7.5A) | |
| FUEL (10A) |
