Can-Am Origin Series 2025 Fuse Box Info

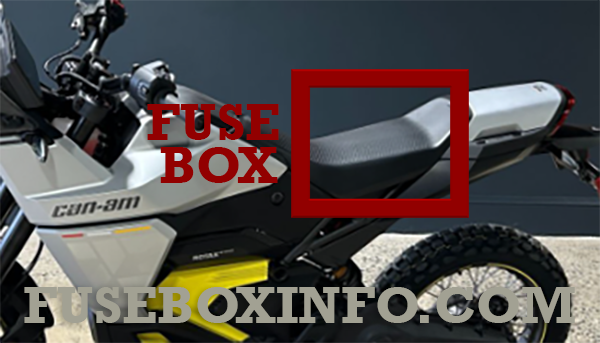

Fuse box location:
The fuse box is located under the driver seat.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| F1 | 10A | Ignition / Multifunction display / Charger |
| F2 | 7.5A | Horn / High Beam |
| F3 | 5A | Low Beam / Brake / Plate |
| F4 | 10A | VCU / Wake-Up |
| F5 | 7.5A | Cooling fans / Cooling pump |
| F6 | 20A | Main |
| F7 | 10A | Accessories |
| F8 | 5A | Multi switches / Tail lamp |
| F9 | 25A | ABS pump |
| F10 | 10A | ABS valves |
| RY1 | - | Main |
| RY2 | - | Lighting |
| RY3 | - | High Beam |
| RY4 | - | Horn |
