Harley-Davidson Dyna Models 2007 Fuse Box Info

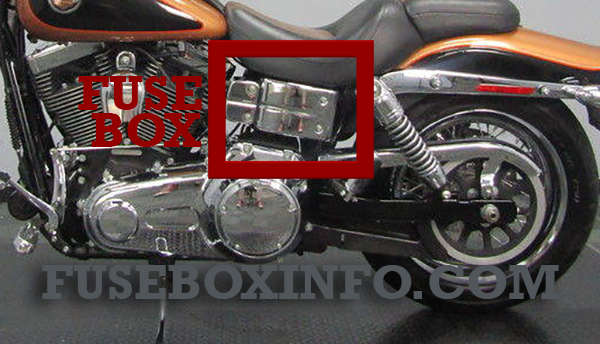

Fuse box location:
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Start relay |
| 2 | - | System relay |
| 3 | 40A | Maxi-fuse |
| 4 | 15A | ECM module |
| 5 | 15A | Fuel pump |
| 6 | - | Blank (HDI: Engine Control Fuse) |
| 7 | 15A | Spare |
| 8 | 15A | Spare |
| 9 | 15A | Customer accessory |
| 10 | 15A | P&A ignition |
| 11 | 15A | Battery |
| 12 | 15A | Accessories |
| 13 | 15A | Instruments |
| 14 | 15A | Ignition |
| 15 | 15A | Lamps |
All Dyna models have a main fuse to protect the motorcycle wiring. This 40-amp maxi-fuse provides main battery power to the motorcycle. It is located in a fuse holder behind the motorcycle's left side cover.
