Yamaha FJR 1300 A 2011 Fuse Box Info
Fuse box location:

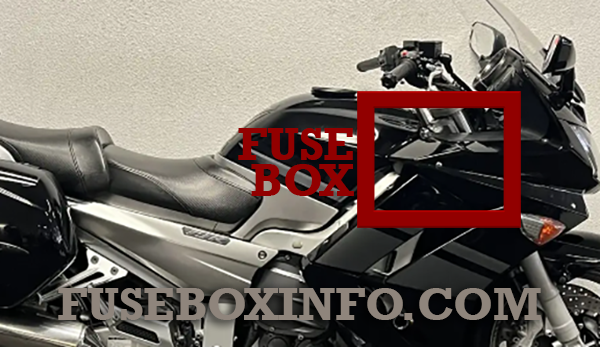

Two fuse boxes are located under the panel, on the right side.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 2 | 15A | Right radiator fan fuse |
| 3 | 15A | Left radiator fan fuse |
| 4 | 10A | Hazard fuse |
| 5 | 10A | Backup fuse (for clock) |
| 6 | 20A | ABS solenoid fuse |
| 7 | 15A | Fuel injection system fuse |
| 8 | 25A | Headlight fuse |
| 9 | 15A | Signaling system fuse |
| 10 | 10A | ABS control unit fuse |
| 11 | 10A | Ignition fuse |
| 12 | 3A | Auxiliary DC jack fuse |
| 13 | - | Spare fuse |
Main fuse (50A), ABS motor fuse (30A) and ABS motor spare fuse are located under panel on the right side, near the battery and fuse boxes.
