KTM 200 Duke 2018 Fuse Box Info

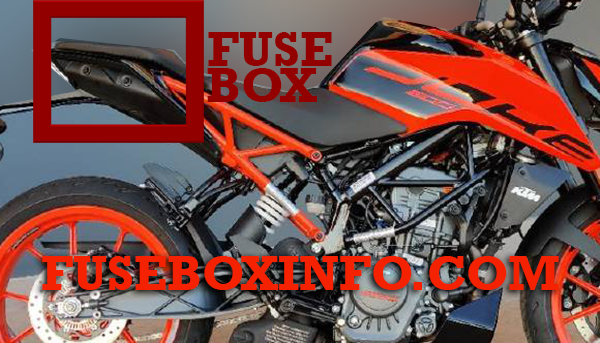

Fuse box location:
The fuse box is located under the passenger seat.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Main fuse |
| 2 | 15A | Combination instrument |
| 3 | 10A | Power relay, fuel pump |
| 4 | 15A | Ignition coil, alarm system (Optional) |
| 5 | 15A | Radiator fan |
| 6 | 15A | Horn, brake light, turn signal, high beam, low beam, position light, tail light, license plate lamp, diagnostics connector |
| 7 | - | Not assigned |
| 8 | 10A | Control unit |
| 9 | 10A | Positive connected with ignition for auxilliary equipment (ACC2 front) |
| SPARE | 10/15/30A | Spare fuses |
