Lotus Eletre 2022 Fuse Box Info

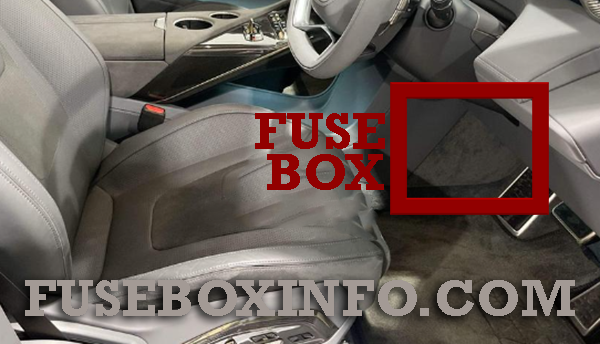

Passenger compartment fuse box location:
The fuse box is located on the right side of the tunnel console.

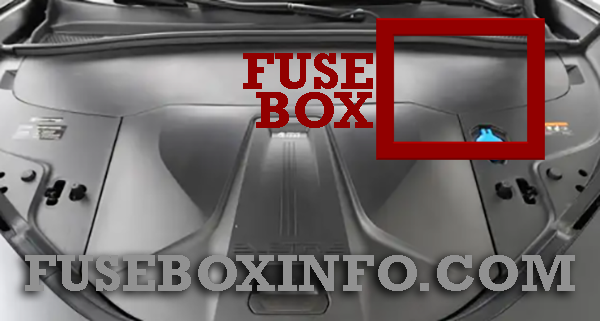

Under hood compartment fuse box location:

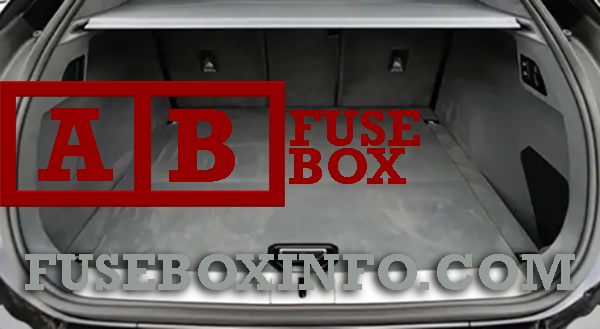

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| CF01 | 30A | Wiper motor |
| CF02 | 30A | Reserve |
| CF03 | 30A | Reserve |
| CF04 | 10A | Left monitor streaming media outside rearview mirror screen |
| CF05 | 10A | AMG |
| CF06–A | 10A | Indoor lighting control module |
| CF06–A | 10A | Driver condition monitoring module |
| CF06–B | 10A | Left side visor makeup light |
| CF06–B | 10A | Right side visor makeup light |
| CF06–B | 10A | Interior rearview mirror module |
| CF06–B | 10A | Glove box light switch |
| CF06–B | 10A | Skylight dimming motor controller |
| CF07 | 10A | Autopilot position unit |
| CF08 | 10A | Anion generator |
| CF08 | 10A | PM2.5 sensor |
| CF09 | 15A | Combination switch |
| CF10 | 10A | Reserve |
| CF11 | 7.5A | Reserve |
| CF12 | 15A | Reserve |
| CF13 | 15A | Reserve |
| CF14 | 20A | Rear USB |
| CF15 | 20A | Luggage 12V power socket |
| CF16 | 10A | Right streaming media outside rearview mirror screen |
| CF17 | 40A | Body area controller |
| CF18 | 20A | Driver side door module backup power supply |
| CF18 | 20A | Bluetooth and NFC key communication module standby power supply |
| CF18 | 20A | NFC card reader standby power supply |
| CF19 | 30A | Reserve |
| CF20 | 40A | Body area controller |
| CF21 | 30A | Right restraint module |
| CF22 | 10A | Reserve |
| CF23 | 10A | Right rear seat |
| CF23 | 10A | Left rear seat |
| CF23 | 10A | Passenger seat |
| CF24 | 25A | Reserve |
| CF25 | 10A | Reserve |
| CF26 | 10A | Front active stabilizer bar assy |
| CF26 | 10A | Rear active stabilizer bar assy |
| CF27 | 10A | Heads-up display |
| CF28 | 10A | Left front electric door module (ALPHA) |
| CF28 | 10A | Right front electric door module (ALPHA) |
| CF28 | 10A | Left front door anti-collision radar module (ALPHA) |
| CF28 | 10A | Right front door anti-collision radar module (ALPHA) |
| CF29 | 10A | Right front electric door module (ALPHA) |
| CF29 | 10A | Right rear electric door module (ALPHA) |
| CF29 | 10A | Right front door anti-collision radar module (ALPHA) |
| CF29 | 10A | Right rear door anti-collision radar module (ALPHA) |
| CF30 | 10A | Vehicle wireless terminal |
| CF31 | 10A | Electronic steering lock |
| CF32 | 10A | Passenger screen module |
| CF32 | 10A | Sunlight rainfall sensor |
| CF32 | 10A | DVR |
| CF33 | 30A | Reserve |
| CF34–A | 10A | Outlet media rearview mirror controller |
| CF34–B | 10A | Diagnostic module |
| CF35–A | 10A | Radar module in front of car (presence detection of children) |
| CF35–A | 10A | Rear rear radar module (children presence detection) |
| CF35–A | 10A | ETC electronic unit |
| CF35–A | 10A | Alcohol lock |
| CF35–B | 10A | Carbon dioxide sensor |
| CF35–B | 10A | Combination switch |
| CF35–B | 10A | Internal motion sensor |
| CF36–A | 10A | In-car infotainment display |
| CF36–B | 10A | Driver information screen |
| CF36–B | 10A | Central control switch module |
| CF37–A | 10A | NFC card reader |
| CF37–A | 10A | Bluetooth and NFC key communication module |
| CF37–B | 10A | Vehicle gateway module |
| CF38 | 10A | Air conditioning controller |
| CF39 | 10A | WPC (15W) |
| CF40 | 15A | In-car infotainment host |
| CF41 | 20A | Front 12V power socket |
| CF42 | 30A | Driver door module |
| CF43 | 25A | Reserve |
| CF44 | 30A | Passenger door module |
| CF45 | 30A | Reserve |
| CF46–A | 10A | Atmosphere lamp |
| CF46–B | 10A | Overhead light module |
| CF47 | 15A | WPC (50W) |
| CF49 | 40A | Front blower |
| CF50 | 10A | Reserve |
| CF51 | 10A | Central display rotating module |
| CF51 | 10A | Rear entertainment screen lifting module |
| CF52 | 15A | Front USB power supply |
| CF53 | 15A | Steering wheel adjusting module |
| CF54 | 25A | Reserve |
| CF55 | 25A | Reserve |
Under hood compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| EF01 | 40A | Cooling fan (ALPHA) |
| EF01 | 60A | Cooling fan (LAMBDA) |
| EF03-A | 10A | Body area controller |
| EF03-A | 10A | Electronic gear shifter assembly |
| EF03-A | 10A | Redundant brake controller |
| EF03-A | 10A | Vehicle controller |
| EF03-A | 10A | Electric power steering |
| EF03-A | 10A | Brake controller |
| EF03-B | 10A | 48V supercapacitor |
| EF03-B | 10A | Medium voltage converter module |
| EF03-B | 10A | Rear steering module |
| EF03-B | 10A | 12V low-voltage lithium battery |
| EF03-B | 10A | 12V supercapacitor |
| EF04 -A | 10A | ETC electronic unit |
| EF04 -B | 10A | Accelerator pedal sensor |
| EF05 | 10A | Airbag controller |
| EF06 | 20A | Reserve |
| EF07 | 10A | Reserve |
| EF08 | 20A | Reserve |
| EF09 | 10A | Autopilot assist domain controller |
| EF09 | 10A | Outlet media rearview mirror controller |
| EF10 | 10A | Front active stabilizer bar assy |
| EF10 | 10A | Rear active stabilizer bar assy |
| EF10 | 10A | Rear electric drive system motor |
| EF11 | 10A | Active air dam module (ALPHA) |
| EF11 | 10A | Active air dam module (ALPHA) |
| EF11 | 10A | Active air dam module (ALPHA) |
| EF12 | 40A | Reserve |
| EF13 | 40A | Reserve |
| EF14 | 40A | Reserve |
| EF15 | 20A | Reserve |
| EF16 | 10A | High voltage charging system assy |
| EF17 | 25A | Washing pump |
| EF18-A | 10A | Spare battery sounding device |
| EF18-B | 10A | Electronic gear shifter assembly |
| EF18-B | 10A | Brake pedal sensor |
| EF19 | 10A | Reserve |
| EF20 | 40A | Brake controller |
| EF21 | 15A | Right front combination headlight |
| EF22 | 15A | Left front combination headlight |
| EF23 | 40A | Brake controller |
| EF24 | 10A | VCU Main Relay |
| EF25 | 20A | Klaxon |
| EF26 | 10A | CPSR control |
| EF27 | 40A | Redundant brake controller |
| EF28 | 10A | High voltage battery |
| EF29 | 15A | Vehicle controller |
| EF30 | 20A | Battery radiator water pump |
| EF31 | 20A | Reserve |
| EF32 | 25A | Cooling electronic water pump_210W |
| EF33-A | 10A | Front electric drive system motor |
| EF33-B | 10A | High voltage charging system assy (CN) |
| EF33-B | 10A | High voltage charging system assy (US/EU) |
| EF33-B | 10A | High voltage battery |
| EF34 | 30A | Redundant brake controller |
| EF35 | 10A | Vehicle controller |
| EF36 | 20A | Vehicle controller |
| EF37 | 20A | Vehicle controller |
| EF38 | 10A | Front left radar |
| EF38 | 10A | Front right radar |
| EF38 | 10A | Forward looking millimeter-wave radar |
| EF39 | 10A | Dc charging port cover controller for electric vehicle |
| EF39 | 10A | Ac charging port cover controller for electric vehicle (LAMBDA) |
| EF39 | 10A | Electric vehicle communication controller |
| EF40 | 10A | Reserve |
| EF41 | 20A | Vehicle controller |
| EF42 | 25A | Reserve |
| EF43-A | 10A | Rear electric drive system motor |
| EF43-A | 10A | Front electric drive system motor |
| EF43-A | 10A | Motor loop coolant diverting valve |
| EF43-A | 10A | Three-way electronic valve for motor circuit |
| EF43-A | 10A | Air conditioning heater (high pressure PTC) assembly |
| EF43-A | 10A | Air conditioner control module (Air conditioner compressor) |
| EF43-A | 10A | Cold water switch off valve |
| EF43-A | 10A | Motor cooling regulating valve |
| EF43-B | 10A | Heating circuit pump |
| EF43-B | 10A | Condenser inlet solenoid on-off valve |
| EF43-B | 10A | Turn off valve actuator |
| EF43-B | 10A | OHX shutoff valve |
| EF43-B | 10A | Condenser electric expansion valve |
| EF43-B | 10A | Electric evaporator expansion valve |
Luggage compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| RF01 | 10A | Reserve |
| RF02 | 10A | Reserve |
| RF03 | 10A | Left rear taillight (LAMBDA) |
| RF04 | 10A | Right rear taillight (LAMBDA) |
| RF05 | 10A | Through-tail light (LAMBDA) |
| RF06 | 10A | Reserve |
| RF07 | 10A | Reserve |
| RF08 | 50A | Air suspension control unit |
| RF09 | 30A | Rear Seat Controller (5 seats) |
| RF10 | 30A | Afterdefrosting |
| RF11 | 30A | Electric tailgate module |
| RF12 | 30A | Trailer module |
| RF13 | 10A | Step monitoring module |
| RF14 | 10A | Medium voltage converter module |
| RF14 | 10A | 48V supercapacitor |
| RF15 | 10A | Rear electric drive system motor (IEM) |
| RF16 | 10A | Rear entertainment module |
| RF16 | 10A | High brake lamp (ALPHA) |
| RF17 | 10A | Rear diffuser (ALPHA) |
| RF18 | 10A | Reserve |
| RF19 | 40A | Right rear seat control module |
| RF20 | 40A | Rear Seat Controller (5 seats) |
| RF20 | 40A | Left rear seat control module |
| RF21 | 30A | Suspension module control unit |
| RF22 | 40A | Trailer module |
| RF23 | 10A | Reserve |
| RF24 | 20A | Active tail motor (AWM) |
| RF25 | 15A | Rear tail light |
| RF26 | 10A | Rear electric drive system motor |
| RF27 | 10A | RR03/RR07 drive |
| RF28 | 10A | Reserve |
| RF29 | 20A | High voltage booster converter module |
Luggage compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| C1 | 125A | 48V DCDC |
| D1 | 80A | Rear-wheel steering |
| E1 | 150A | Trunk safety box |
| F1 | 250A | Cabin fuse box |
| G1 | 200A | Instrument fuse box |
| K1 | 125A | Cabin fuse box |
| L1 | 125A | Reserve |
| RM01 | 60A | Rear electric drive system motor (EDS2-Zues) |
| RM02 | 60A | Reserve |
| RM03 | 30A | Audio module |
| RM04 | 30A | Audio module |
| RM05 | 30A | Audio amplifier |
| RM06 | 30A | Audio amplifier |
| RM07 | 30A | Left rear door module |
| RM08 | 30A | Right rear door module |
| RM09 | 30A | Driver's seat inner connection |
| RM10 | 30A | Inside passenger seat connection |
| RM11 | 30A | Rear electric drive system motor (EDS2-Zues) |
| RM12 | 10A | Left side obstacle detection radar |
| RM12 | 10A | Right side obstacle detection radar |
| RM12 | 10A | Rear-looking millimeter wave radar |
| RM13 | 15A | Reserve |
| RM14 | 20A | Autopilot master domain controller |
| RM15 | 15A | Reserve |
| RM16 | 15A | Reserve |
| RM17 | 20A | Autopilot assist domain controller |
| RM18 | 10A | Reserve |
| RM19 | 20A | Autopilot assist domain controller |
| RM20 | 20A | Autopilot assist domain controller |
| RM21 | 30A | Reserve |
| RM22 | 30A | Reserve |
| RM23 | 40A | Reserve |
| RM24 | 30A | Left restraint module |
| RM25 | 10A | Reserve |
| RM26 | 10A | Reserve |
| RM27 | 15A | Reserve |
| RM28 | 10A | Reserve |
| RM29 | 10A | Reserve |
| RM30 | 10A | Airbag controller |
| RM31 | 10A | Front Lidar box |
| RM31 | 10A | Rear Lidar box |
| RM32 | 10A | Left lidar box |
| RM32 | 10A | Right lidar box |
| RM33 | 10A | Reserve |
| RM34 | 20A | Left front combination headlight |
| RM35 | 20A | Right front combination headlight |
| RM36 | 10A | Left rear taillight (LAMBDA) |
| RM37 | 10A | Right rear taillight (LAMBDA) |
| RM38 | 10A | Reserve |
| RM39 | 15A | Left rear taillight controller (ALPHA) |
| RM40 | 10A | Front lidar |
| RM40 | 10A | Left lidar |
| RM41 | 10A | Right lidar |
| RM41 | 10A | Rear lidar |
| RM42 | 10A | Reserve |
