McLaren Artura 2022 Fuse Box Info
Passenger compartment fuse box location:
The fuse box 1 (Main fuse box) is located behind a panel in the rear bulkhead, behind the left-hand seat.

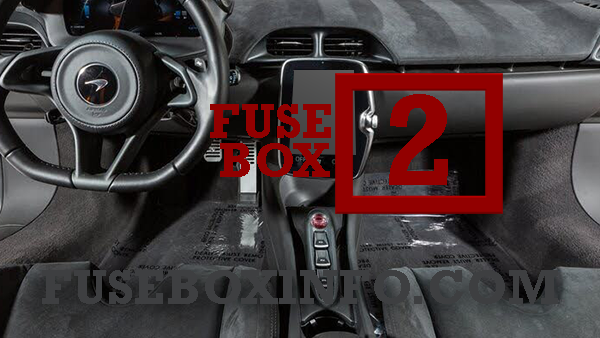

The fuse box 2 (Secondary fuse box) is located below the dashboard on the passenger’s side.

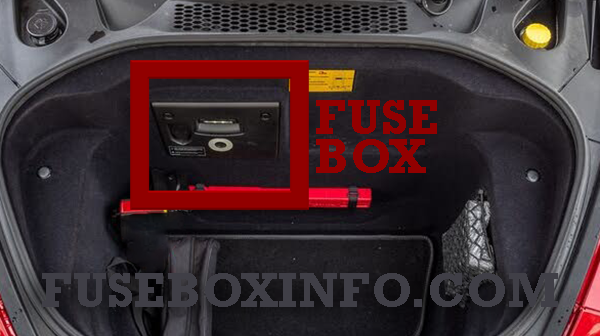

Luggage compartment fuse box location:
The fuse box is located at the battery.
Fuse Box Diagram | Layout
Passenger compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| F1 | 60A | Domain Controller ZB2 |
| F2 | 60A | Domain Controller ZC1 |
| F3 | - | - |
| F4 | - | - |
| F5 | - | - |
| F6 | - | - |
| F7 | 30A | Starter |
| F8 | 20A | Heated Rear Window |
| F9 | 20A | Audio Amplifier |
| F10 | - | - |
| F11 | - | - |
| F12 | 30A | HYCU |
| F13 | 3A | HV BMS |
| F14 | 5A | Permanent Battery |
| F15 | 15A | Relays |
| F16 | 3A | Pyro Feed In |
| F17 | 10A | MCU |
| F18 | 50A | ECU Main Relay Feed |
| F19 | 40A | Fuel PEM Relay 1 |
| F20 | 20A | Seat Driver |
| F21 | 20A | Seat Passenger |
| F22 | 20A | eMotor Cooling Pump |
| F23 | 15A | eMotor Cooling Fan |
| F24 | 10A | Infotainment ECU |
| F25 | 2A | Infotainment ECU Safe |
| F26 | 7.5A | Auxiliary USB Board |
| F27 | 2A | SVCC/RVC |
| F28 | 50A | eDiff Controller |
| F29 | - | - |
| F30 | - | - |
| F31 | 40A | Cooling Fan LH |
| F32 | 40A | Cooling Fan RH |
| F33 | - | - |
| F34 | - | - |
| F35 | - | - |
| F36 | 20A | ECU Main Relay |
| F37 | - | - |
| F38 | 2A | DMTL + Purge Valve |
| F39 | 5A | LH Cam Actuators, Dump Valves |
| F40 | 7.5A | RH Cam Actuators, Crank Position, Dump Valves, Turbo Cooling Pump, Oil Level Sensor |
| F45 | 30A | LH Ignition Amplifier |
| F46 | 30A | RH Ignition Amplifier |
| F47 | 5A | LH Lambda, MAF, Exhaust, ESG |
| F48 | 5A | RH Lambda, MAF, Exhaust, ESG |
| F49 | 5A | Starter |
| F59 | 15A | Domain Controller ZC1 |
| F60 | 15A | Domain Controller ZC1 |
| F61 | 15A | Domain Controller ZC1 |
| F62 | 15A | Domain Controller ZC1 |
| F63 | 15A | Domain Controller ZB2 |
| F64 | 15A | Domain Controller ZB2 |
| F65 | 15A | Domain Controller ZB2 |
| F66 | 15A | Domain Controller ZB2 |
| F67 | - | - |
| F68 | - | - |
| F69 | - | - |
| F70 | - | - |
| F71 | - | - |
| F72 | - | - |
| F73 | - | - |
| F74 | - | - |
| R41 | - | - |
| R42 | - | - |
| R43 | - | - |
| R44 | - | - |
| R50 | - | Fan eMotor Cooling Relay |
| R51 | - | Heated Rear Window Relay |
| R52 | - | Fuel PEM Relay |
| R53 | - | HTR Fan Low Speed Relay |
| R54 | - | HTR Fan High Speed Relay |
| R55 | - | Starter Relay |
| R56 | - | - |
| R57 | - | Change Over Relay |
| R58 | - | ECU Main Relay |
Passenger compartment fuse box 2:
| Fuse/Relay N° | Rating | Functions |
| F1 | 15A | Domain Controller ZB1 |
| F2 | 15A | Domain Controller ZB1 |
| F3 | 15A | Domain Controller ZB1 |
| F4 | 15A | Domain Controller ZB1 |
| F5 | 20A | Door Module RH |
| F6 | 20A | Door Module LH |
| F7 | 5A | Door Latch RH |
| F8 | 5A | Door Latch LH |
| F9 | - | - |
| F10 | 5A | Alarm |
| F11 | - | - |
| F12 | - | - |
| F13 | 20A | LTR Fan RH |
| F14 | 20A | LTR Fan LH |
| F15 | - | - |
| F16 | - | - |
| F17 | - | - |
| F18 | 5A | PTC Heater |
| F19 | 20A | HVAC Blower |
| F20 | 10A | OBD |
| F21 | 5A | Ethernet Switch |
| F22 | 5A | PEPS ECU |
| F23 | 5A | TCU |
| F24 | - | - |
| F25 | 4A | ADI Centre Display |
| F26 | 4A | ADI Driver Display |
| F27 | 3A | Radio Antenna Module |
| F28 | 10A | Roof Light Module |
| F29 | 20A | HVAC Blower |
| F30 | 10A | Horn |
| F31 | - | - |
| F32 | - | - |
| F33 | - | - |
| R1 | - | Horn |
| R2 | - | LTR Fans |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | 300A | 12V Battery |
| F2 | 300A | Cabin |
| F3 | 100A | EPHS |
| F4 | 40A | Electronic Stability Control Valves |
| F5 | 40A | Electronic Stability Control Motor |
| F6 | 20A | Condenser Fans Controller |
| F7 | 20A | LTR Coolant Pump |
| F8 | 20A | Headlamps (Relay) |
| F9 | 15A | Domain Controller ZA1 |
| F10 | 15A | Domain Controller ZA1 |
| F11 | 15A | Domain Controller ZA1 |
| F12 | 15A | Domain Controller ZA1 |
| F13 | 25A | Wiper motor |
| F14 | 10A | IPU |
| F15 | 15A | Aux Power Socket |
| F16 | - | - |
| F17 | 20A | eVac (Relay) |
| F18 | - | - |
| F19 | - | - |
| R1 | - | Vacuum Pump |
| R2 | - | Headlamps |
