Oldsmobile Achieva 1997 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side.

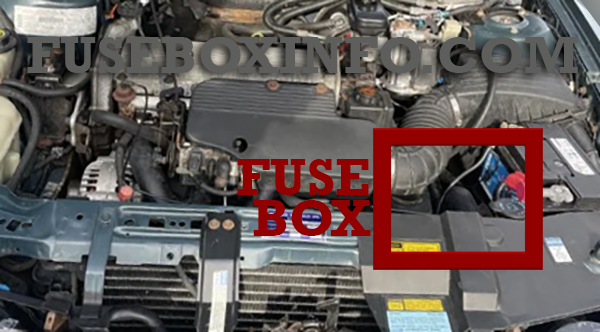

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Functions |
| PWR WDO | Power Window (Circuit Breaker) |
| TURN | Turn Signal Lamps |
| INT LPS | Alarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps, MapReading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors), Anti-Lock Brakes, Variable Effort Steering |
| PWR ST | Power Seat |
| RDO IGN | Radio |
| HTR-A/C | Heater/Air Conditioning Blower, Daytime Running Lamps, Automatic Lamp Control |
| CRUISE | Cruise Control |
| TAIL LPS | Parking Lamps, Taillamps, Sidemarker Lamps, License Lamps, Instrument Panel Lights, Underhood Lamp, Headlamp Warning Alarm |
| LTR | Cigarette Lighter, Auxiliary Power Outlet |
| WIPER | Windshield Wipers/Washers |
| 02 | Heated Oxygen Sensors |
| DR UNLK | Automatic Door Unlock |
| ALARM | Automatic Transaxle, Automatic Door Unlock, Alarm Module (Illuminated Entry, Warning Chimes), Traction Telltale, Rear Window Defogger, Remote Lock Control |
| FOG/FTP | Fog Lamps |
| PRNDL | Instrument Cluster, Powertrain Computer, Park-Lock Solenoid, Electronic PRNDL |
| DR LK 2 | Door Locks |
| AIR BAG | Air Bag-Power |
| HORN | Horn, Service Tool Power |
| INST | Instrument Cluster |
| STOP HAZ | Stoplamps, Hazard Lamps, Anti-Lock Brakes |
| PCM | Powertrain Control Module |
| DR LK 1 | Door Locks, Remote Lock Control |
| INST LPS | Instrument Panel Lights, Fog Lamps |
| RR DEF | Rear Window Defogger |
| HDLP | Headlamps, Daytime Running Lamps (Circuit Breaker) |
Engine compartment fuse box:
| Fuse/Relay | Functions |
| F/P, INJ | Fuel Pump, Fuel Injectors |
| ERLS | Back-up Lamps, Canister Purge Valve, EGR, Automatic Transaxle, Brake-Transaxle Shift Interlock, Anti-Lock Brakes, Variable Effort Steering, Air Conditioning Compressor, Park Lock Solenoid |
| ABS | Anti-Lock Brake Solenoids, Variable Effort Steering |
| IGN MOD | Ignition System |
| HVAC BLO MOT |
Heater/Air Conditioner-High Blower, Generator-Voltage Sense |
| PCM BATT | Powertrain Computer |
| CLG FAN | Engine Cooling Fan |
| HDLP | Lighting Circuits |
| STOP LPS PWR ACC RR DEFG |
Power Accessory, Stoplamp Circuits, Rear Window Defogger |
| ABS | Anti-Lock Brakes, Variable Effort Steering |
| IGN SW | Ignition Switched Circuits |
