Oldsmobile Intrigue 1998 Fuse Box Info

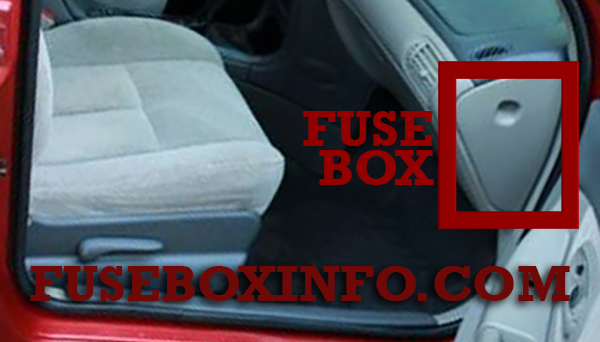

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the passenger’s side.

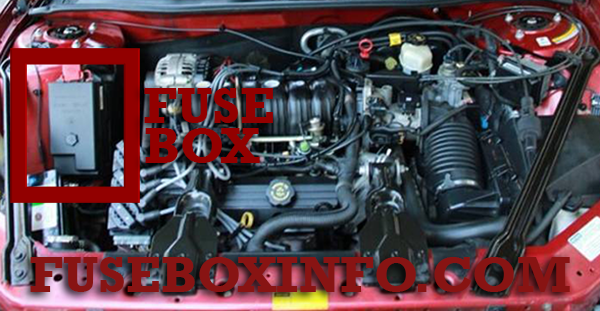

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Functions |
| ABS | ABS Motor Assembly |
| CRANK SIGNAL BCM, CLUSTER |
CRANK -- Instrument Panel Cluster, Body Control Module, Powertrain Control Module |
| HEATED MIRROR |
Heated Outside Rearview Mirrors |
| IGN 0: CLUSTER PCM, & BCM |
Instrument Panel Cluster, Powertrain Control Module, Body Control |
| LOW BLOWER | HVAC Control Assembly, Blower Motor |
| HVAC | Air Temperature Valve Motor, HVAC Control Assembly, Solenoid Box |
| CRUISE | Cruise Control Module |
| ABS | Electronic Brake Control Module (EBCM), ABS Relay, Traction Control System Disable Switch |
| BTSI | Brake-Transaxle Shift Interlock |
| TURN SIGNALS, CORN LPS |
Turn Signals, Cornering Lamps |
| AIR BAG | Air Bag System |
| CLUSTER | Instrument Panel Cluster |
| DRL | Daytime Running Lamps |
| PCM, BCM, U/H RELAY |
Powertrain Control Module, Body Control Module, Underhood Ignition/Relay |
| RADIO, HVAC, RFA CLUSTER, DATA LINK |
Radio, HVAC Control Assembly, Instrument Panel Cluster, Remote Keyless Entry Module, Data Link Connector, Bose Amplifier |
| ABS, BCM | ABS1 -- Electronic Brake Control Module (EBCM), Body Control Module |
| CIGAR LTR, AUX POWER, POWER DROP |
Auxiliary Power, Cigarette Lighter, Power Drop |
| INADV POWER BUS |
Vanity Mirrors, Instrument Panel Courtesy Lamps, Instrument Panel Compartment Lamps, Trunk Courtesy Lamp, Header Courtesy and Reading Lamps, I/S Lighted Rearview Mirror |
| CD CHANGER | Cartridge Disk Changer |
| HIGH BLOWER | High Blower Relay |
| HAZARD | Hazard Switch |
| STOP LAMPS | Stoplamps Switch |
| DOOR LOCKS | Door Lock Relays (Internal to Body Control Module) and External Driver Door Lock Relay |
| POWER MIRRORS |
Left-hand and Right-hand Power Mirrors |
| RED STRG WHL ILLUM |
Steering Wheel Radio Switch Illumination |
| FRT PRK LPS, FOG LAMPS |
PARK LPS -- Front Parking Lamps, Sidemarker Lamps, Fog Lamps |
| TAIL LAMPS, LIC LAMPS |
Taillamps, License Lamps, Rear Sidemarker Lamps, Rear Sidemarker Lamps |
| PANEL DIMMING |
Dimmable Instrument Panel Lamps |
| WIPER | Wiper Switch |
| POWER DROP | Power Drop |
| RADIO, CRUISE |
Radio, Steering Wheel Radio Controls, Cruise Control Switches |
| PWR WINDOWS, PWR SUNROOF |
Power Windows, Power Sunroof |
| REAR DEFOG | Rear Defog |
| POWER SEATS | Power Seats, Fuel Door Relay |
Engine compartment fuse box:
| Fuse/Relay | Functions |
| 1 | Cooling Fan |
| 2 | Starter Solenoid |
| 3 | Power Seats, Rear Defog, Heated Seats |
| 4 | High Blower, Hazard Flashers, Stoplamps, Power Mirrors Door Locks |
| 5 | Ignition Switch, Brake Transaxle Shift Interlock, Stoplamps, Anti-Lock Brake System, Turn Signals, Cluster, Air Bag, Daytime Running Lamps Module |
| 6 | Cooling Fan |
| 7 | Interior Lamps, Retained Accessory Power, Anti-Lock Brake System, Keyless Entry, CEL TEL, Data Link, HVAC Head, Cluster, Radio, Auxiliary Power, Cigarette Lighter |
| 8 | Ignition Switch, Wipers, Radio, Steering Wheel Controls, Body Control Module, Auxiliary Power, Power Windows, Sunroof, HVAC Controls, DRL, Rear Defog Relay |
| 9 | Cooling Fan 2 |
| 10 | Cooling Fan 3 |
| 11 | Starter Solenoid |
| 12 | Cooling Fan 1 |
| 13 | Ignition Main |
| 14 | Not Used |
| 15 | Air Conditioning Clutch |
| 16 | Horn |
| 17 | Fog Lamps |
| 18 | Fuel Pump |
| 19 | Fuel Pump |
| 20 | Air Pump |
| 21 | Generator |
| 22 | Electronic Control Module |
| 23 | Air Conditioning Compressor Clutch |
| 24 | Not Used |
| 25 | Electronic Ignition |
| 26 | Transaxle Sensor |
| 27 | Horn |
| 28 | Fuel Injector |
| 29 | Oxygen Sensor |
| 30 | Engine Emissions |
| 31 | Not Used |
| 32 | Headlamp (Right) |
| 33 | Rear Compartment Release |
| 34 | Parking Lamp |
| 35 | Fuel Pump |
| 36 | Headlamp (Left) |
| 37 | Spare |
| 38 | Spare |
| 39 | Spare |
| 40 | Spare |
| 41 | Spare |
| 42 | Spare |
| 43 | Fuse Puller |
