Mercury Sable 2008 Fuse Box Info

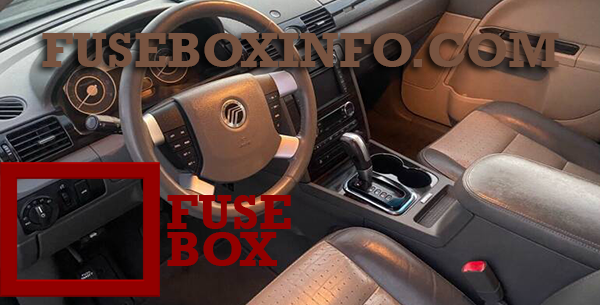

Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.

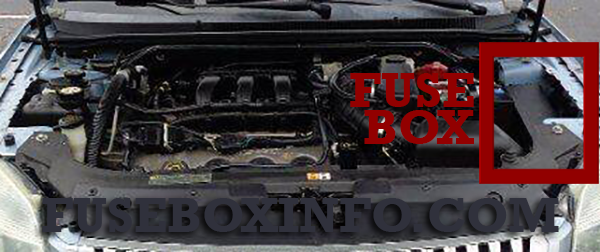

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Smart window motor |
| 2 | 15A | Brake on/off switch, High-mounted brake lamp |
| 3 | 15A | SDARS, Bluetooth, Family entertainment system (FES)/Rear seat control |
| 4 | 30A | Spare |
| 5 | 10A | SPDJB logic power |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | All wheel drive |
| 12 | 7.5A | Memory seat/mirror switches, Memory module |
| 13 | 5A | FEPS module |
| 14 | 10A | Analog clock |
| 15 | 10A | Climate control |
| 16 | 15A | Spare |
| 17 | 20A | All power lock motor feeds, Decklid release |
| 18 | 20A | Spare |
| 19 | 25A | Moon roof |
| 20 | 15A | OBDII connector |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps, License lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps/Interior lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Adjustable pedal switch |
| 28 | 5A | Radio, Radio start signal |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Overdrive cancel switch |
| 31 | 10A | Compass, Automatic dimming rear view mirror |
| 32 | 10A | Restraint control module |
| 33 | 10A | Spare |
| 34 | 5A | AWD module |
| 35 | 10A | Steering rotation sensor, FEPS, Rear park assist, Heated seat modules |
| 36 | 5A | PATS module |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer (Audiophile radio) |
| 39 | 20A | Radio |
| 40 | 20A | Spare |
| 41 | 15A | Mic mirror, Moon roof, Front lock switches, Radio |
| 42 | 10A | Spare |
| 43 | 10A | Spare |
| 44 | 10A | Spare |
| 45 | 5A | Relay coils: PDB, Auxiliary A/C, Front and rear wipers, Front blower motor |
| 46 | 7.5A | Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI) |
| 47 | 30A | Power windows |
| 48 | - | Delayed accessory relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 80A | SPDJB power |
| 2 | 80A | SPDJB power |
| 3 | 30A | Front wipers |
| 4 | - | Not used |
| 5 | 20A | Spare |
| 6 | - | Not used |
| 7 | 50A | Engine cooling fan |
| 8 | - | Not used |
| 9 | 40A | Anti-lock Brake System (ABS)/AdvanceTrac pump |
| 10 | 30A | Starter |
| 11 | 50A | Powertrain Control Module (PCM) relay |
| 12 | 20A | ABS/AdvanceTrac valve |
| 13 | 20A | Power point (instrument panel) |
| 14 | 20A | Power point (2nd row) |
| 15 | 20A | Spare |
| 16 | 20A | Power point (console) |
| 17 | 10A | Alternator |
| 18 | - | Not used |
| 19 | - | Not used |
| 20 | 40A | Rear defroster |
| 21 | 30A | Power seat motors (passenger) |
| 22 | 20A | Heated seat module |
| 23 | 10A | PCM Keep alive power, Canister vent |
| 24 | 10A | A/C clutch relay |
| 25 | 25A | Spare |
| 26 | 20A | Backup relay |
| 27 | 15A | Fuel relay (Fuel pump driver module, Fuel pump) |
| 28 | - | Not used |
| 29 | 30A | Spare |
| 30 | - | Not used |
| 31 | 30A | Spare |
| 32 | 30A | Driver seat motors, Memory module |
| 33 | 20A | Ignition switch (to SJB) |
| 34 | - | Not used |
| 35 | 40A | Front A/C blower motor |
| 36 | 1A Diode | One-touch start |
| 37 | 1A Diode | Fuel pump |
| 38 | 10A | IVD, Yaw rate sensor |
| 39 | 10A | Fuel diode, PCM |
| 40 | - | Not used |
| 41 | - | A/C clutch |
| 42 | - | Fuel pump |
| 43 | - | Backup |
| 44 | - | Not used |
| 45 | 10A | Speed control deactivate switch, Mass air flow sensor, Inline module VPWR2 |
| 46 | 10A | A/C clutch relay, VPWR3 |
| 47 | 15A | PCM VPWR1 |
| 48 | 15A | PCM VPWR4 |
| 49 | 15A | Heated mirrors |
| 50 | - | PCM relay |
| 51 | - | Not used |
| 52 | - | Not used |
| 53 | - | Rear defrost relay |
| 54 | - | Blower motor relay |
| 55 | - | Starter relay |
| 56 | - | Not used |
| 57 | - | Front wiper relay |
| 58 | - | Not used |
