GMC Canyon 2024 Fuse Box Info

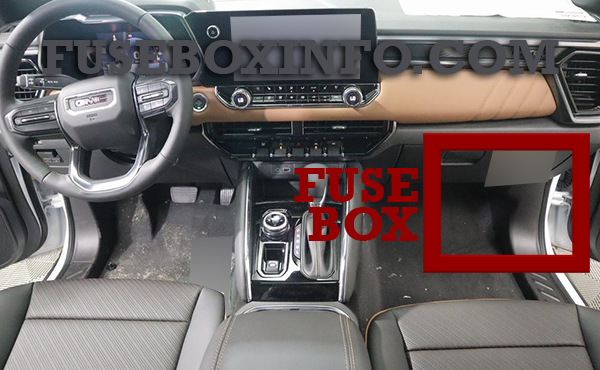

Passenger compartment fuse box location:
The instrument panel fuse box is located behind a side trim panel.

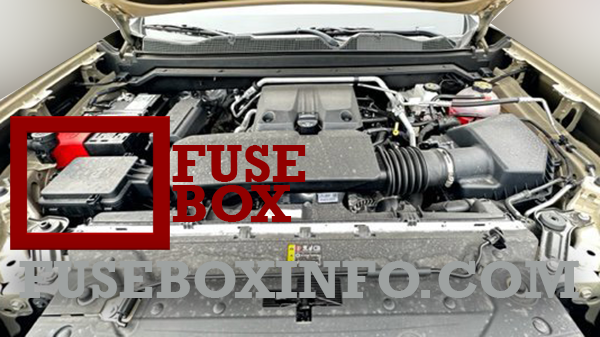

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 01 | FRONT HVAC BLOWER – Front HVAC Module |
| 02 | ELM 1 – Exterior Lighting Module 1 |
| 03 | TRANS CNTRL MODULE – Transmission Control Module |
| 04 | ELM 2 – Exterior Lighting Module 2 |
| 05 | DRIVER SEAT MISC – Memory Seat Module/Seat Position Switch (SPS) LIN Switch |
| 06 | BODY CNTRL MODULE 1 – Body Control Module 1 |
| 07 | STR/WHL/CNTRLS – Steering Wheels Controls |
| 08 | - |
| 09 | VCM MDL/SPARE – Vehicle Control Module/Spare |
| 10 | MISCELLANEOUS 1 – Electric Park Break Switch/Automatic Occupant Sensing Display |
| 11 | AUX JACK/TPC – Auxiliary Audio/Video Jack/Telematics Control Platform |
| 12 | - |
| 13 | CGM & SDM/AOS – Central Gateway Module/Sensing and Diagnostic Module/Automatic Occupant Sensing Module |
| 14 | MISCELLANEOUS 2 – Transmission Control Module/Transfer Case Control/Electronic Brake Control Module/Integrated Chassis Control Module/Trailer Interface Module |
| 15 | MISCELLANEOUS 3 – Exterior Lighting Module/DC-AC Inverter Module/Vented Module |
| 16 | - |
| 17 | WCM/DATA LINK CONN – Wireless Charger Module/Data Link Connector |
| 18 | MISCELLANEOUS 4 – E-Stop/Driver Mode Switch/Reflective Light Auxiliary Display/Sensing and Diagnostic Module/Inside Rear View Mirror/Humidity Sensor |
| 19 | ENGINE CNTRL MODULE – Engine Control Module |
| 20 | RFA/RPA – Remote Function Antenna/Park Assist AMP – Amplifier |
| 21 | DISPLAYS/VPM – Video Processing Module/Display |
| 22 | SUNROOF – Sunroof |
| 23 | - |
| 24 | TRLR BRK CNTRL SW – Trailer Break Control Switch |
| 25 | AUX USB FLOOR CNSL – Auxiliary USB Power Outlet |
| 26 | BODY CNTRL MODULE 2 – Body Control Module 2 |
| 27 | DOOR PANEL SW LF/MISC 1 FRONT DSP – Door Panel Switch Left/Front Display |
| 28 | BODY CNTRL MODULE 3 – Body Control Module 3 |
| 29 | ELM 3 – Exterior Lighting Module 3 |
| 30 | FRONT CAMERA – Front Camera Module |
| 31 | VCU MDL/SPARE – Virtual Cockpit Unit Module |
| 32 | HTD STR WHL – Heated Steering Wheel Module |
| 33 | ELM 5 – Exterior Lighting Module 5 |
| 34 | BODY CNTRL MODULE 4 – Body Control Module 4 |
| 35 | DC/DC Converter 2 |
| 36 | DC/DC Converter 1 |
| 37 | FRT SEATS LMBR SWS – Seat Lumbar Switch |
| 38 | - |
| 39 | DRIVER POWER SEAT – Power Seat Driver |
| 40 | PASSENGER POWER SEAT – Power Seat Co-Driver |
| 41 | APO CONSOLE – Auxiliary DC Power Outlet Row 1 |
| 42 | - |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 01 | ICCM – Integrated Chassis Control Module |
| 02 | FUEL TANK ZONE MDL – Fuel Tank Zone Module |
| 03 | - |
| 04 | Cooling Fan 2 |
| 05 | - |
| 06 | - |
| 07 | MTAOP – Transmission Auxiliary Oil Pump Motor |
| 08 | - |
| 09 | - |
| 10 | - |
| 11 | SECONDARY AXLE MTR – Front Drive Axle Actuator |
| 12 | - |
| 13 | Trailer Connector |
| 14 | - |
| 15 | SBZA/CVS – Side Blind Zone Alert/Canister Vent Solenoid |
| 16 | - |
| 17 | - |
| 18 | - |
| 19 | EBCM – Electronic Brake Control Module |
| 20 | Cooling Fan 1 |
| 21 | - |
| 22 | - |
| 23 | - |
| 24 | Cooling Fan 3 |
| 25 | ENG MISC 1 & 2 – Wide Range Air Fuel Oxygen Sensor/Canister Purge/Turbo Bypass/Step Cam Intake-Exhaust Solenoids Block Coolant Valve Actuator/Mass Air Flow/Humidity/Induction Air Temperature/Throttle Inlet Pressure Sensors |
| 26 | A/C CLUTCH – Air Compressor Clutch |
| 27 | Park Lamps |
| 28 | TIM 2 – Trailer Interface Module 2 |
| 29 | Spare |
| 30 | - |
| 31 | POWER TRAIN IGN 1 – Power Train Ignition 1 & 2 |
| 32 | - |
| 33 | TRLR REVERSE LAMPS – Trailer Reverse Lamps |
| 34 | TIM 1 – Trailer Interface Module 1 |
| 35 | Spare |
| 36 | ENGINE CONTROL MDL – Engine Control Module |
| 37 | IGNITION COILS |
| 38 | TRLR STOP LAMP LT – Trailer Stop Lamp Left |
| 39 | TRLR STOP LAMP RT – Trailer Stop Lamp Right |
| 40 | TCCM – Transfer Case Control Module |
| 41 | Starter Pinion |
| 42 | Starter |
| 43 | - |
| 44 | Spare |
| 45 | Spare |
| 46 | Spare |
| 47 | Spare |
| 48 | Spare |
| 49 | TBPM/TRLR WRG – Trailer Brake Control Module/Trailer Wiring Provisions |
| 50 | Spare |
| 51 | CHMSL – Center High Mounted Stop Lamp |
| 52 | Side Markers |
| 53 | Spare |
| 54 | - |
| 55 | REAR WNDW DEFOGGER – Rear Window Defogger |
| 56 | - |
| 57 | - |
| 58 | Front Wipers |
| 59 | MISC WINDOWS LEFT - Driver Door Panel Switch (Express Up/ Down)/Window Motor Left Front (Express Up/Down) Window Switch Left Rear (Express Down) Window Motor Left Rear (Express Down) |
| 60 | - |
| 61 | Spare |
| 62 | Amplifier |
| 63 | - |
| 64 | - |
| 65 | ELM 4 – Exterior Lighting Module 4 – Right Front Park Lamp/ Daytime Running Lamp/Left Trailer Stop/Turn Lamp/Left Rear Park Lamp/Right High Beam |
| 66 | LOW BEAMS – Front LED Low Beams |
| 67 | - |
| 68 | HTD ST MDL 1 – Heated Seat Module 1 – Front Heated Seats |
| 69 | U/B CAMERA WASHER – Underbody Camera Washer |
| 70 | - |
| 71 | DC/AC INVERTER – Direct Current to Alternate Current Inverter |
| 72 | Spare |
| 73 | Aeroshutter |
| 74 | ELM 6 – Exterior Lighting Module 6 – Left Low Beam/Right Rear Stop/Turn Lamp |
| 75 | Spare |
| 76 | HTD ST MDL 2 – Heated Seat Module 2 – Front Heated Seat |
| 77 | - |
| 78 | - |
| 79 | - |
| 80 | - |
| 81 | - |
| 82 | - |
| 83 | LED Cargo Lamp |
| 84 | ELM 7 – Exterior Lighting Module 7 – Left Front Park Lamp/ Daytime Running Lamp/Left Front Turn Lamp/Center High Mounted Stop Lamp/Right Rear Park Lamp/Reverse Lamps |
| 85 | - |
| 86 | Horn |
| 87 | Front Washer Pump |
| 88 | - |
| 89 | - |
| 90 | MISC WINDOWS RIGHT – Passenger Door Panel Switch (Express Down) Window Motor Right Front (Express Up/Down) Window Switch Right Rear (Express Down) Window Motor Right Rear (Express Up/Down) |
| 91 | - |
