GMC Canyon 2022 Fuse Box Info

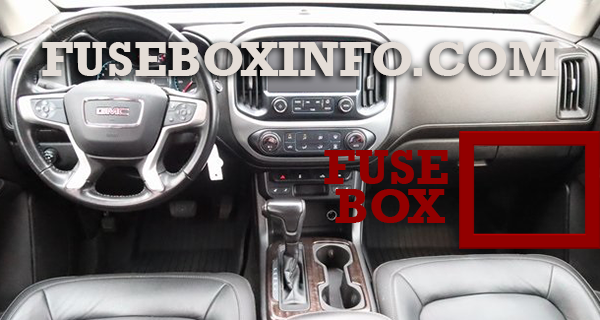

Passenger compartment fuse box location:
The instrument panel fuse box is behind the passenger side cowl side trim panel.

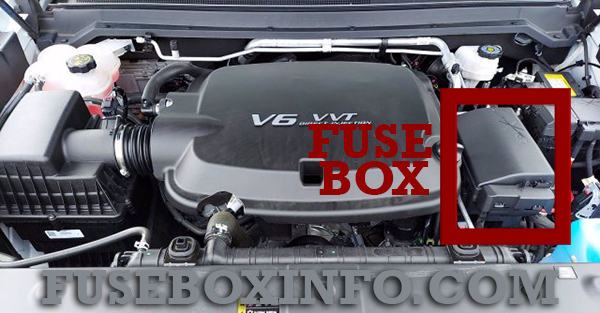

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | BCM 1 – Body Control Module 1 – Indicator Dimming Control, Retained Accessory Power (RAP) Relay Coil Control, Rear License Lamp Supply Voltage, Windshield Washer Relay Control, Run/ Crank Relay Coil Control, Cruise/Electronic Torque Control/Torque Converter Clutch Brake Signal, Run Ignition 3 Voltage |
| 2 | - |
| 3 | - |
| 4 | STR/WHL/CNTL – Steering Wheel Controls |
| 5 |
- BCM 2 – Body Control Module 2 – Interior Lamp Control, Accessory Voltage (1), Backup Lamp Relay Control, Park Lock Solenoid Control, Trailer Brake Apply Signal |
| 6 | - |
| 7 | - |
| 8 | MIR WNDW MDL – Mirror Window Module |
| 9 | I/P CLUSTER – Instrument Panel Cluster |
| 10 | - |
| 11 | BCM 8 – Body Control Module 8 – Door Lock Actuator Lock Control 2, Door Lock Control (2), Door Lock Actuator Unlock Control |
| 12 | - |
| 13 | OnStar/HVAC |
| 14 | RDO/INFOTMNT – Radio/ Infotainment |
| 15 | BCM 6 – Body Control Module 6 – LED Backlight Dimming Control, Interior Lamps, Lights Exterior Reverse/Backup Lamps Direct Drive, Stop Lamp Relay Coil Supply Voltage |
| 16 | CGM –Communication Gateway Module |
| 17 | BCM 4 – Body Control Module 4 – Left Headlamp Low Beam Supply Voltage, Right Park Lamp Supply Voltage, Left Rear Stop Lamp Supply Voltage, Right Rear Park Lamp Supply Voltage |
| 18 | AIRBAG/SDM/AOS MDL – Airbag/Sensing and Diagnostic Module/ Automatic Occupant Sensing Module |
| 19 | - |
| 20 |
- AMP – Amplifier |
| 21 | - |
| 22 | - |
| 23 | DLC/USB FRT – Data Link Connector/USB Front |
| 24 | HVAC IGN/AUX HTR – HVAC Ignition/Auxiliary Heater |
| 25 | BCM 7 – Body Control Module 7 – Right Rear Stop Lamp Supply Voltage, Left Front Turn Signal Lamp Supply Voltage, Standing Lamp Relay Control |
| 26 | - |
| 27 | - |
| 28 | I/P IGN/AOS DISPLY – Instrument Panel Cluster/ Automatic Occupant Sensing Display |
| 29 | MISC RUN/CRNK – Rear Vision Camera/Transfer Case Control Module (4WD)/Inside Rear View Mirror |
| 30 | - |
| 31 | FRT CAMERA/RPA – Front Camera/Rear Park Assist |
| 32 | SWC BKLT – Steering Wheel Controls Backlighting |
| 33 | HTD STR WHL/CGM_IGN – Heated Steering Wheel/ Communication Gateway Module Ignition |
| 34 | VENT SEAT FRT – Front Vented Seats |
| 35 | PRNDL DISPLY/WCM/USB RR – Park/Reverse/Neutral/ Drive/Low Display/Wireless Charging Module/USB Rear |
| 36 | DLIS – Discrete Logic Ignition Sensor |
| 37 | - |
| 38 | - |
| 39 | APO 2 – Auxiliary Power Outlet 2 |
| 40 | - |
| 41 | APO 1/LTR – Auxiliary Power Outlet 1/Cigarrette Lighter |
| 42 | LT PWR WNDW – Left Power Window |
| 43 | DRVR PWR SEAT – Driver Power Seat |
| 44 | APO – Auxiliary Power Outlet |
| 45 | RT PWR WNDW – Right Power Window |
| 46 | PASS PWR SEAT – Passenger Power Seats |
| K1 | RAP/ACCY – Retained Accessory Power |
| K2 | Run/Crank |
| K3 | - |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | TCM BATT – Traction Control Module Power |
| 2 | ECM BATT – Engine Control Module Power |
| 3 | A/C CLTCH – Air Conditioning Clutch |
| 4 | - |
| 5 | ECM/ICCM/FPPM RUN/ CRANK – Integrated Chassis Control Module Run/Crank – Engine Control Module Run/ Crank – Fuel Pump Power Module Run Crank |
| 6 | WIPER – Front Wipers |
| 7 | Cargo Lamp/Bed Lighting |
| 8 | INJ EVEN – Fuel Injectors Even |
| 9 | INJ ODD – Fuel Injectors Odd |
| 10 | ECM IGN – Engine Control Module Ignition |
| 11 | MISC 1 – Oxygen/Mass Air Flow/Humidity/ Induction Air Temperature/Throttle Inlet Pressure Sensors |
| 12 | Starter |
| 13 | TCM RUN/CRNK – Traction Control Module Run/Crank |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | FRT AXLE ACT – Front Axle Actuator |
| 18 | - |
| 19 | AERO SHTR – Aeroshutters |
| 20 | - |
| 21 | FRT BLWR – Front Blower |
| 22 | ABS VLV – Antilock Brake System Valves |
| 23 | - |
| 24 | TRLR – Trailer |
| 25 | TREC – Transfer Case Electronic Control |
| 26 | ABS PUMP – Antilock Brake System Pump |
| 27 | TRLR BRK CNTRL MDL – Trailer Brake Control Module |
| 28 | REAR WNDW DEFOG - Rear Window Defogger |
| 29 | - |
| 30 | HTD SEAT DVR – Driver Heated Seat |
| 31 | - |
| 32 | HTD SEAT PASS – Passenger Heated Seat |
| 33 | BCM 3 – Body Control Module 3 – Right Headlamp Low Beam Supply Voltage, Right Front Turn Signal Lamp Supply Voltage, Left Park Lamp Supply Voltage, Left Rear Park Lamp Supply Voltage |
| 34 | FPPM – Fuel Pump Power Module |
| 35 | ICCM – Integrated Chassis Control Module |
| 36 | CHMSL – Center High Mounted Stoplamp |
| 37 | HI BEAM RT – Right High-beam Headlamp |
| 38 | HI BEAM LT – Left High-beam Headlamp |
| 39 | |
| 40 | |
| 41 | - |
| 42 | - |
| 43 | - |
| 44 | - |
| 45 | VAC PUMP – Brake Vacuum Pump |
| 46 | ECM 2 – Engine Control Module 2 |
| 47 | MISC 2 – Mid Park Phase Lock/Active Fuel Management/Engine Oil and Canister Purge Solenoid(s)/Oxygen Sensor |
| 48 | Fog Lamps |
| 49 | - |
| 50 | TRLR PRK LAMP – Trailer Parking Lamp |
| 51 | Horn |
| 52 | - |
| 53 | - |
| 54 | - |
| 55 | - |
| 56 | WASH PUMP – Washer Pump |
| 57 | - |
| 58 | - |
| 59 | - |
| 60 | MIR DEFOG – Mirror Defogger |
| 61 | - |
| 62 | CNSTR VENT SOL – Canister Vent Solenoid |
| 63 | - |
| 64 | TRLR REV LAMP – Trailer Reverse Lamps |
| 65 | TRLR STOP/TRN LAMP LT – Left Trailer Stoplamp/Turnlamp |
| 66 | TRLR STOP/TRN LAMP RT – Right Trailer Stoplamp/Turnlamp |
| 67 | EPS – Electric Power Steering |
| 68 | - |
| 69 | RVC – Battery Regulated Voltage Control |
| 70 | - |
| 71 | - |
| 72 | - |
| 73 | - |
| 74 | GEN – Generator |
| 75 | - |
| K1 | A/C Clutch – Air Conditioning Clutch |
| K2 | STRTR – Starter |
| K3 | - |
| K4 | WPR SPD – Wiper Speed |
| K5 | WPR CNTRL – Wiper Control |
| K6 | Cargo Lamp/Bed Lighting |
| K7 | PWR TRN – Powertrain |
| K8 | - |
| K9 | - |
| K10 | - |
| K11 | CHMSL – Center High Mounted Stop Lamp |
| K12 | - |
| K13 | VAC PUMP – Brake Vacuum Pump |
| K14 | TRLR PRK LAMPS – Trailer Park Lamps |
| K15 | RUN/CRNK – Run/Crank |
| K16 | - |
| K17 | REAR WNDW DEFOG – Rear Window/Mirror Defogger |
