Volvo XC60 2011 Fuse Box

Volvo Hits: 939

Volvo XC60 2011 Fuse Box Info

Passenger compartment fuse box location:

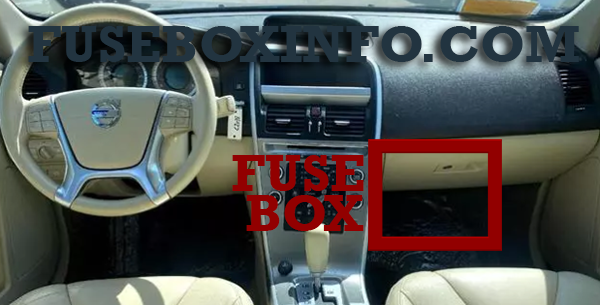

The fuse boxes A and B in the passenger compartment are located under the glove box.

Engine compartment fuse box location:

Module A, upper

Module B, front

Module C, lower

Positions: These fuses are all located in the engine compartment box. Fuses in C are located under A.

Luggage compartment fuse box location:

Fuse Box Diagram | Layout

Passenger compartment fuse box (Fuse box A):

Fuse/Relay N°	Rating	Functions
1	40A	Circuit breaker - audio system, subwoofer*
2	-	-
3	-	-
4	-	-
5	-	-
6	-	-
7	15A	12-volt socket (cargo area)
8	20A	Controls in driver's door
9	20A	Controls in front passenger's door
10	20A	Controls in right rear passenger's door
11	20A	Controls in left rear passenger's door
12	20A	Keyless drive*
13	20A	Power driver's seat*
14	20A	Power front passenger's seat*
15	15A	Folding rear seat head restraints*
16	-	-
17	10A	Audio system, Navigation system display*
18	15A	Audio system
19	5A	Bluetooth hands-free system
20	-	-
21	5A	Laminated panoramic roof*, Courtesy lighting, Climate system sensor
22	15A	12-volt sockets
23	15A	Heated front passenger's seat*
24	15A	Heated driver's seat*
25	-	-
26	15A	Heated rear passenger's seat (right)*
27	15A	Heated rear passenger's seat (left)*
28	5A	Park assist, Volvo Navigation System, Park assist camera*
29	5A	All Wheel Drive* control module
30	5A	Active chassis system*

* Option/accessory

Passenger compartment fuse box (Fuse box B):

Fuse/Relay N°	Rating	Functions
1	15A	Tailgate wiper
2	-	-
3	7.5A	Front courtesy lighting, power seat(s)*
4	5A	Instrument panel information display
5	10A	Adaptive cruise control/ collision warning*
6	7.5A	Courtesy lighting, rain sensor*
7	7.5A	Steering wheel module
8	10A	Cental locking: fuel filler door/trunk lid
9	15A	Tailgate window washer
10	15A	Windshield washer
11	10A	Tailgate unlock
12	10A	Tailgate lock
13	20A	Fuel pump
14	5A	Remote key receiver, Alarm movement sensor*, Climate system
15	-	-
16	5A	Alarm, On-board diagnostic system
17	-	-
18	10A	Airbag system, Occupant weight system
19	5A	Adaptive cruise control front radar*
20	7.5A	Accelerator pedal, Power door mirrors, Heated rear seats*
21	-	-
22	5A	Brake lights
23	20A	Laminated panoramic roof*
24	5A	Immobilizer

* Option/accessory

Engine compartment fuse box:

Fuse/Relay N°	Rating	Functions
1	50A	Circuit breaker
2	50A	Circuit breaker
3	60A	Circuit breaker
4	60A	Circuit breaker
5	50A	Circuit breaker
6	-	-
7	-	-
8	20A	Headlight washers*
9	30A	Windshield wipers
10	-	-
11	40A	Climate system blower
12	-	-
13	40A	ABS pump
14	20A	ABS valves
15	-	-
16	10A	Active Bending Lights. Headlight leveling*
17	20A	Central electrical module
18	5A	ABS 15 feed
19	5A	Speed-dependent steering force*
20	10A	Engine Control Module (ECM), transmission, SRS
21	10A	Heated washer nozzles*
22	20A	Vacuum pump I5T
23	5A	Lighting panel
24	-	-
25	-	-
26	-	-
27	5A	Engine compartment box
28	20A	Auxiliary lights*
29	15A	Horn
30	10A	Engine Control Module (ECM)
31	15A	Control module, automatic transmission
32	15A	Compressor A/C
33	5A	Relay coils
34	30A	Starter motor relay
35	20A	Ignition coils
36	10A	Engine Control Module (ECM), throttle
37	15A	Injection system
38	10A	Engine valves
39	15A	EVAP/heated oxygen sensor/ Injection
40	20A	Crank case ventilation heater
41	5A	Fuel leakage detection
42	-	-
43	80A	Cooling fan
44	100A	Electro-hydraulic power steering

* Option/accessory

Luggage compartment fuse box:

Fuse/Relay N°	Rating	Functions
1	30A	Electric parking brake (left side)
2	30A	Electric parking brake (right side)
3	30A	Heated rear window
4	15A	Trailer socket 2*
5	30A	Power tailgate*
6	-	-
7	-	-
8	-	-
9	-	-
10	-	-
11	40A	Trailer socket 1*
12	-	-

* Option/accessory
