Suzuki S-Presso 2022 Fuse Box Info

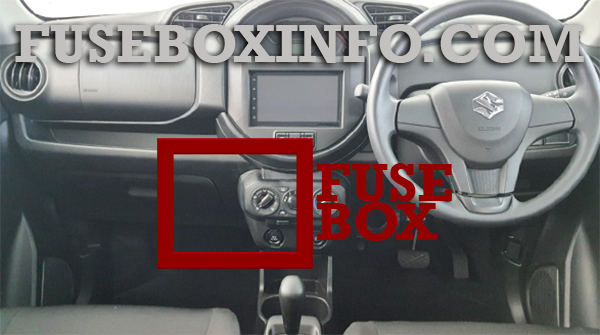

Passenger compartment fuse box location:
The interior fuse box is under dashboard on the passinger’s side.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Rating | Functions |
1 | - | Blank |
2 | 20A | WIP WASH (Front wiper & washer) |
3 | 10A | IG2 SIG (Ignition-2 signal) |
4 | 10A | Meter |
5 | 15A | IG COIL (Ignition coil) |
6 | 10A | BACK (Back-up light) |
7 | 10A | ST SIG (Starting signal) |
8 | 15A | ACC2 (Accessory-2) |
9 | 10A | ACC1 (Accessory-1) |
10 | - | Blank |
11 | 10A | A/B (Airbag) |
12 | 10A | ABS |
13 | 10A | IG1 SIG (Ignition-1 signal) |
14 | - | Blank |
15 | 20A | D/L (Door lock) |
16 | 10A | HAZ (Hazard warning light) |
17 | 10A | TAIL (Tail light) |
18 | 15A | Radio |
19 | 10A | DOME (Dome light) |
20 | 10A | DOME2 (Dome light-2) |
21 | 30A | P/W (Power window) |
Engine compartment fuse box (Main fuses on battery/Fuse box):
Fuse/Relay N° | Rating | Functions |
1 | 120A | FL1 |
2 | 100A | FL2 |
3 | 20A | Spare fuse |
4 | 25A | Spare fuse |
5 | 30A | Spare fuse |
6 | 40A | P/S (Power steering) |
7 | - | Blank |
8 | 10A | CPRSR (A/C compressor |
9 | 15A | FI (Fuel Injection) |
10 | 15A | H/L L (Headlight (Left)) |
11 | 15A | H/L R (Headlight (Right)) |
12 | 30A | ST (Starting motor) |
13 | 30A | RDTR (Radiator fan) |
14 | - | Blank |
15 | 40A | IGN2 (Ignition switch 2 |
16 | 30A | Lamp |
17 | 30A | T/M Pump (AGS Pump) |
18 | 30A | B/U (Battery backup) |
19 | 10A | STOP (Stop Light) |
20 | - | Blank |
21 | 15A | Horn |
22 | 30A | BLW (Blower fan) |
23 | - | Blank |
24 | 10A | ST SIG (Starting signal) |
25 | - | Blank |
26 | - | Blank |
27 | - | Blank |
28 | - | Blank |
29 | - | Blank |
30 | - | Blank |
31 | 40A | ABS MOT (ABS motor) |
32 | 25A | ABS SOL (ABS solenoid) |
33 | - | Blank |
34 | 10A | T/M (Transmission) |
35 | 10A | T/M2 (Transmission 2) |
36 | 40A | IGN (Ignition switch) |
37 | 5A | Spare fuse |
38 | 10A | Spare fuse |
39 | 15A | Spare fuse |
40 | 7.5A | Spare fuse |
