Suzuki Baleno 2018 Fuse Box Info
Passenger compartment fuse box location:

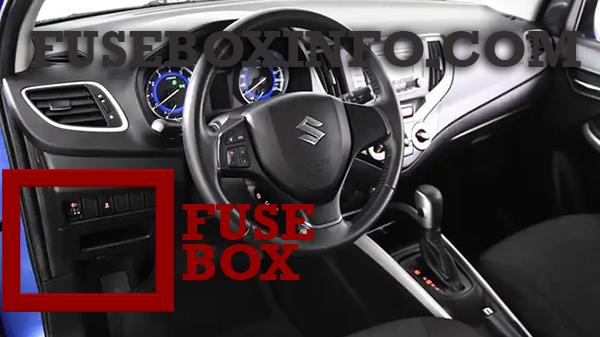

The interior fuse box is under the dashboard on the driver’s side (LHT).

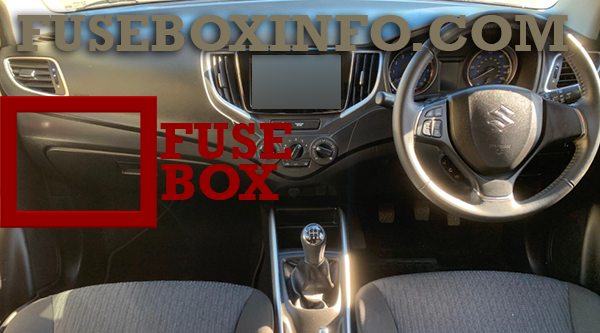

The interior fuse box is behind the glove box on the passinger’s side (RHT).

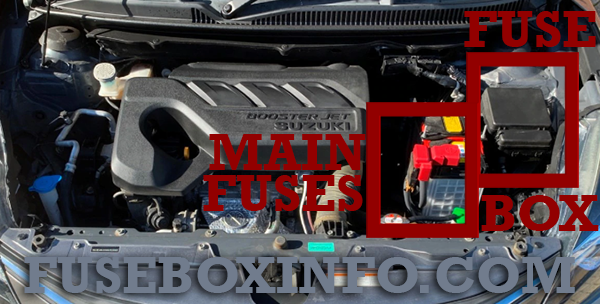

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (For vehicle without keyless push start system or keyless entry system):
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Back-up light |
| 2 | 15A | Ignition coil |
| 3 | 10A | Meter |
| 4 | 10A | Wiper |
| 5 | 5A | Ignition-2 signal |
| 6 | 15A | Washer |
| 7 | 25A | Front wiper |
| 8 | 10A | Tail light |
| 9 | 10A | Hazard |
| 10 | 10A | Stop light |
| 11 | 30A | Power window |
| 12 | 15A | ACC-2 |
| 13 | 5A | ACC |
| 14 | 5A | Starting signal |
| 15 | 10A | Ignition-1 signal |
| 16 | 10A | Air bag |
| 17 | 5A | ABS control module (if equipped) |
| 18 | 15A | Horn |
| 19 | 20A | Door lock |
| 20 | 25A | Rear defogger |
| 21 | 15A | Radio |
| 22 | 5A | Dome light |
| 23 | 10A | Dome light-2 |
Passenger compartment fuse box (For vehicle with keyless push start system or keyless entry system):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Power window |
| 2 | 10A | Meter |
| 3 | 15A | Ignition coil |
| 4 | 5A | Ignition-1 signal 2 |
| 5 | 20A | Shift (Petrol - K10C) |
| 6 | 20A | S/R (Petrol - K10C) |
| 7 | - | Blank |
| 8 | 20A | Door lock |
| 9 | 15A | Steering lock |
| 10 | 10A | Hazard |
| 11 | 5A | A-STOP controller (Feature not available in the vehicle) |
| 12 | 10A | RR fog lamp |
| 13 | 5A | ABS control module |
| 14 | 15A | Seat heater |
| 15 | 5A | Ignition-1 signal 3 |
| 16 | 10A | Dome light-2 |
| 17 | 5A | Dome light |
| 18 | 15A | Radio |
| 19 | 5A | CONT |
| 20 | 5A | Key 2 |
| 21 | 20A | Power window timer |
| 22 | 5A | Key |
| 23 | 15A | Horn |
| 24 | 5A | Tail light (Left) |
| 25 | 10A | Tail light |
| 26 | 10A | Air bag |
| 27 | 10A | Ignition-1 signal |
| 28 | 10A | Back-up light |
| 29 | 5A | ACC-3 |
| 30 | 20A | Rear defogger |
| 31 | 10A | Heated mirror |
| 32 | 15A | ACC-2 |
| 33 | 5A | ACC |
| 34 | 10A | Wiper |
| 35 | 5A | Ignition-2 signal |
| 36 | 15A | Washer |
| 37 | 25A | Front wiper |
| 38 | 10A | Stop light |
| 39 | - | Blank |
| 40 | 25A | Rear defogger 2 |
Engine compartment fuse box (Main fuses, Fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 120A | FL1 |
| 2 | 100A | FL2 |
| 3 | 80A | FL3 |
| 4 | 100A | FL4 |
| 5 | 50A | FL5 |
| 6 | 150A | FL6 |
| 7 | 30A | Starting motor |
| 8 | 30A | Blower fan |
| 9 | 40A | Battery |
| 10 | 40A | ABS motor |
| 11 | 40A | Ignition switch |
| 12 | 30A | B/U |
| 13 | 30A | Sub battery |
| 14 | - | Blank |
| 15 | - | Blank |
| 16 | 25A | ABS control module |
| 17 | 15A | Headlight (Left) |
| 18 | 15A | Headlight (Right) |
| 19 | - | Blank |
| 20 | - | Blank |
| 21 | 30A | Radiator fan |
| 22 | 60A | Power steering |
| 23 | 5A | ECM |
| 24 | 20A | Fuel pump |
| 25 | 20A | Front fog light |
| 26 | 10A | Air compressor |
| 27 | 50A | Ignition switch 2 |
| 28 | 15A | Transaxle |
| 29 |
15A 30A 30A |
FI (Petrol - K12M) FI main (Petrol - K10C) FI main (Diesel) |
| 30 | 15A | T/M pump |
| 31 | - | Blank |
| 32 | - | Blank |
| 33 | 5A | Starting Signal |
| 34 | - | Blank |
| 35 |
20A 20A |
INJ DRV (DIESEL) INJ DRV (Petrol - K10C) |
| 36 | - | Blank |
| 37 |
10A 10A |
FI (Petrol - K10C) FI (Diesel) |
| 38 | - | Blank |
| 39 | 25A | Headlight high |
| 40 | 15A | Headlight high (Right) |
| 41 | 15A | Headlight high (Left) |
