Subaru Outback 2009 Fuse Box Info
Fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

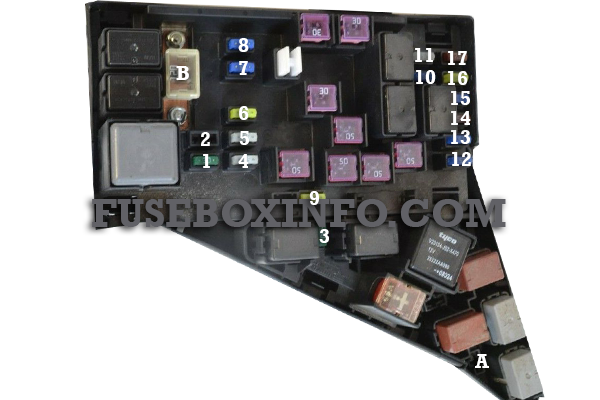

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Cargo fan, Trailer hitch connector |
| 2 | - | - |
| 3 | 15A | Door locking |
| 4 | 15A | Front wiper deicer relay, Moonroof |
| 5 | 15A | Combination meter |
| 6 | 7.5A | Remote control rear view mirrors, Seat heater relay, Vanity mirror light |
| 7 | 15A | Combination meter, Integrated unit |
| 8 | 20A | Stop light |
| 9 | 20A | Mirror heater, Front wiper deicer |
| 10 | 7.5A | Power supply (Battery) |
| 11 | 7.5A | Turn signal unit, Clock |
| 12 | 15A | Automatic transmission unit, Engine control unit, Integrated unit |
| 13 | 20A | Cargo socket |
| 14 | 15A | Position light, Tail light, Rear combination light |
| 15 | - | - |
| 16 | 10A | Illumination |
| 17 | 15A | Seat heaters |
| 18 | 10A | Back-up light |
| 19 | 7.5A | Headlight right side relay |
| 20 | 10A | Cigarette lighter socket |
| 21 | 7.5A | Starter relay |
| 22 | 15A | Air conditioner, Rear window defogger relay coil |
| 23 | 15A | Rear wiper, Rear window washer |
| 24 | 15A | Audio unit, Clock |
| 25 | 15A | SRS airbag system |
| 26 | 7.5A | Power window relay |
| 27 | 15A | Blower fan |
| 28 | 15A | Blower fan |
| 29 | 15A | Fog light |
| 30 | 30A | Front wiper, Front wiper washer |
| 31 | 7.5A | Auto air conditioner unit, Integrated unit |
| 32 | 7.5A | Headlight left side relay |
| 33 | 7.5A | ABS/Vehicle dynamics control unit |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | ABS unit, Vehicle dynamics control unit |
| 2 | 25A | Main fan (3.0-liter models) |
| 3 | 10A | Secondary air combination valve (Turbo models) |
| 4 | 25A | Sub fan (Except 3.0-liter models) |
| 5 | 25A | Main fan |
| 6 | 20A | Audio |
| 7 | 15A | Headlight (right side) |
| 8 | 15A | Headlight (left side) |
| 9 | 20A | Back-up light |
| 10 | 15A | Horn |
| 11 | 25A | Rear window defogger |
| 12 | 15A | Fuel pump |
| 13 | 15A | Automatic transmission control unit |
| 14 | 7.5A | Engine control unit |
| 15 | 15A | Turn and hazard warning flasher |
| 16 | 20A | Parking switch |
| 17 | 7.5A | Alternator |
| A | FWD socket (AT models with non-turbo 2.5 L engine) | |
| B | Main fuse |
