Škoda Citigo 2018 Fuse Box Info
Passenger compartment fuse box location:

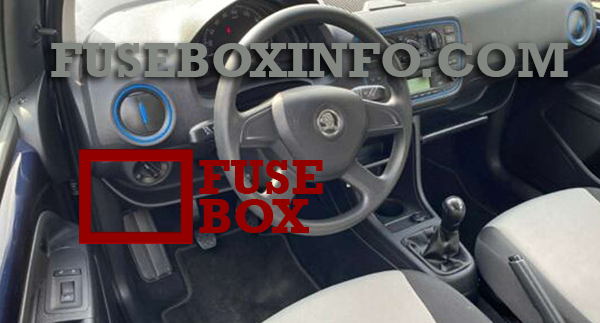

The fuse box is located underneath the steering wheel on the underside of the dash panel.
Engine compartment fuse box location:
The engine fuse box is located underneath a cover next to the vehicle battery.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Functions |
1 | Air Conditioning, diagnostic connector |
2 | Operating the headlight range control, parking aid, positional adjustment of the electric door mirrors, seat heating |
3 | Automatic transmission, engine control unit, power steering, control lever under the steering wheel, instrument cluster, radiator fan |
4 | Airbag |
5 | Reversing light |
6 | Front and rear windscreen wiper system |
7 | Main beam headlamp - left side |
8 | Main beam headlamp - right side |
9 | Not assigned |
10 | Electric exterior mirror heater, diagnostic port, rain sensor |
11 | Daytime driving light |
12 | Not assigned |
13 | Vehicle lighting - left side |
14 | Vehicle lighting - right side |
15 | Vehicle with START-STOPsystem: Radio Vehicle without START-STOPsystem: Lighting of switches, heating, automatic transmission, light switch, license plate light |
16 | Vehicle lighting - Rear fog light |
17 | Rear window wiper |
18 | Panoramic roof |
19 | Central locking system |
20 | Rear window heating |
21 | Reversing lights, fog lights |
22 | Horn |
23 | Voltage stabiliser (for START-STOP system) |
24 | Headlamp flasher |
25 | Windscreen wipers |
26 |
Vehicle with START-STOP system: Vehicle lighting Vehicle without START-STOP system: Radio |
27 | Indicator light, brake light, daytime running light |
28 | Selector lever for the automatic transmission |
29 | Fuel pump |
30 | Engine control unit, instrument cluster, rain sensor, control lever under the steering wheel, air conditioning system, fuel pump |
31 | Vehicle lighting - dipped beam |
32 | Central control system |
33 | Vehicle lighting - parking light |
34 | Interior lighting |
35 | Vehicle lighting - right side (applies to vehicle without START-STOP system), instrument cluster |
36 | Vehicle lighting - left side (applies to vehicle without START-STOP system) |
37 | ESC |
38 | Bar with buttons, DC-DC voltage converter (applies to vehicle with START-STOP system), engine start |
39 | Control lever under the steering wheel, front and rear window washer |
40 | Lambda probe, radiator fan, gas valve, oil pressure valve, valve for activated charcoal filter, engine components |
41 | Brake pedal switch, clutch pedal switch, radiator fan, engine components |
42 | Engine control system |
43 | Vacuum pump for brake system, air conditioning |
44 | Injection valves, engine components, fuel pump |
45 | Ignition coils, engine components |
46 | 12 volt sockets |
47 | Air blower for air conditioning/heating |
48 | Seat heaters |
49 | Electric windows - right |
50 | Vehicle lighting - daytime running lights, high beam |
51 | Electric windows - left |
Engine compartment fuse box:
Fuse/Relay N° | Functions |
1 | ABS/ESP |
2 | Radiator fan, blower fan for air conditioning |
3 | Cooling control system, ignition |
4 | ABS/ESP |
5 | Battery data module, ignition lock |
6 | Ignition lock, starter |
