Škoda Citigo 2014 Fuse Box Info
Passenger compartment fuse box location:

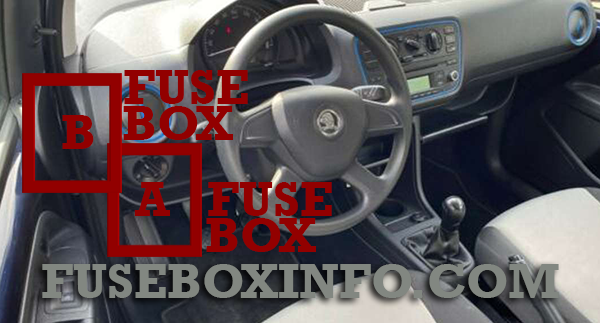

The fuse box A is located underneath the steering wheel on the underside of the dash panel. The fuse box B is located on the left-hand side of the dashboard behind a cover on vehicles with the START STOP system.
Engine compartment fuse box location:

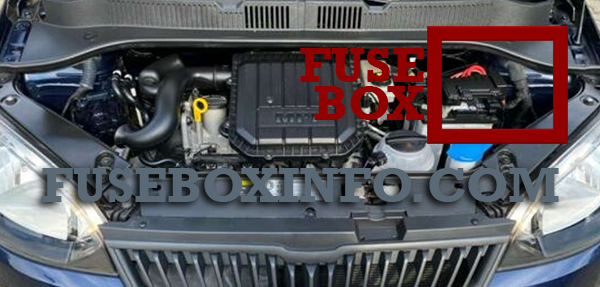

The engine fuse box is located underneath a cover next to the vehicle battery.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Fuse box A):
| Fuse/Relay N° | Functions |
| 1 | Telephone, radiator fan, instrument cluster, engine control unit |
| 2 | Diagnostic port, air compressor, bar with buttons, control unit for air conditioning |
| 3 | Clutch pedal switch, brake pedal switch |
| 4 | Switch illumination, number plate light |
| 5 | Steering column switch, central control unit |
| 6 | Headlamp beam adjustment, exterior mirror adjustment |
| 7 | Automated transmission |
| 8 | Automated transmission |
| 9 | Airbag, bar with buttons |
| 10 | Park Assist |
| 11 | Headlights |
| 12 | The rear fog light |
| 13 | Headlights |
| 14 | Rear window wiper |
| 15 | Light switch |
| 16 | Steering force assistance |
| 17 | Windscreen washer |
| 18 | Reverse light switch |
| 19 | Injection valves, coolant pump |
| 20 | ABS/ESP |
| 21 | Parking lights |
| 22 | Daytime running lights |
| 23 | Headlights |
| 24 | Flasher |
| 25 | Windscreen Wiper and Washer System |
| 26 | Not assigned |
| 27 | Interior lighting |
| 28 | Diagnostic connector |
| 29 | Central control unit |
| 30 | Exterior mirror heater |
| 31 | Radiator fan, lambda probe |
| 32 | Blinking light, brake light, daytime running lights, rear light |
| 33 | Main beam |
| 34 | Main beam |
| 35 | Fuel pump |
| 36 | Cigarette lighter, 12-volt power socket |
| 37 | Air blower for heating and air conditioning |
| 38 | Radio |
| 39 | Panoramic sliding roof, horn |
| 40 | Engine control unit |
| 41 | Central locking system |
| 42 | Ignition module |
| 43 | Seat heaters |
| 44 | Fuel pump |
| 45 | Light switch |
| 46 | Rear window heater |
| 47 | Windows |
| 48 | Horn |
| 49 | Windscreen wipers |
| 50 | Fog lights, headlight |
| 51 | Power windows |
Passenger compartment fuse box (Fuse box B) - vehicles with the START-STOP system:
| Fuse/Relay N° | Functions |
| 1 | ABS/ESP |
| 2 | Instrument cluster |
| 3 | Radio, diagnosis |
| 4 | DC-DC voltage converter, starter relay, bar with buttons |
| 5 | Not assigned |
| 6 | Not assigned |
| 7 | Not assigned |
| 8 | Not assigned |
| 9 | Headlights |
| 10 | Headlights |
| 11 | Starter |
| 12 | DC-DC voltage converter, ABS, instrument cluster, radio |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| S1 | ABS/ESP |
| S2 | Radiator fan |
| S3 | Control unit for radiator fan, ignition |
| S4 | ABS/ESP |
| S5 | Central control unit, battery data module |
| S6 | Ignition lock, starter |
