Seat Ateca 2023 Fuse Box Info

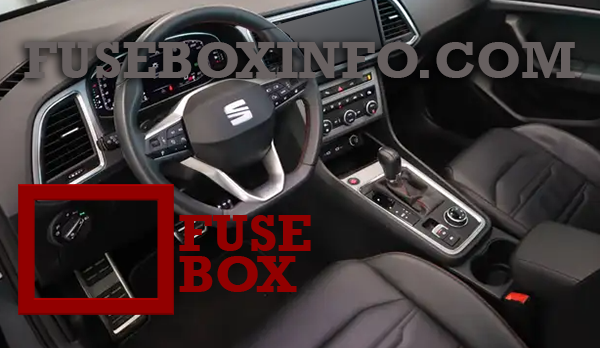

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the cover on the driver’s side (LHD). The fuse box is located behind the glove box (RHD).

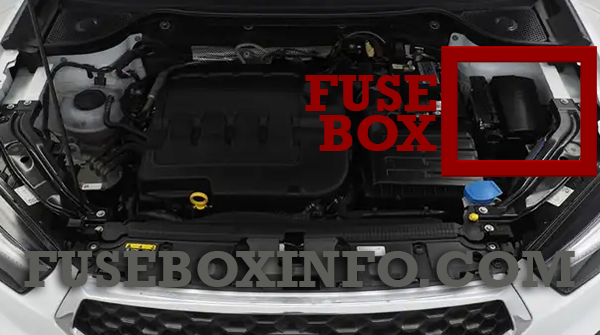

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Adblue (SCR) |
| 4 | 7.5A | Alarm horn |
| 5 | 7.5A | Gateway |
| 6 | 7.5A | Automatic gearbox lever |
| 7 | 10A | Air conditioning and heating control panel, back window heating, auxiliary heating |
| 8 | 7.5A | Diagnosis, electronic parking brake switch, light switch, reversing light, interior lighting, driving mode, lit-up door sill, rain sensor |
| 9 | 7.5A | Steering column, coolant pump (T2C) |
| 10 | 7.5A | Radio display |
| 11 | 40A | Left lights |
| 12 | 20A | Radio |
| 13 | 25A | Driver and passenger seat belt pre-tensioner |
| 14 | 40A | Air conditioner fan |
| 15 | 10A | Steering column release |
| 16 | 7.5A | Connectivity Box |
| 17 | 7.5A | Instrument panel, OCU |
| 18 | 7.5A | Rear camera and surroundings camera |
| 19 | 7.5A | Kessy |
| 20 | 10A/15A | SCR, engine relay, 1.5 |
| 21 | 15A | 4x4 Haldex Control Unit |
| 22 | 15A | Trailer |
| 23 | 30A | Electric sunroof |
| 24 | 40A | Right lights |
| 25 | 30A | Left door |
| 26 | 30A | Heated seats |
| 27 | 30A | Interior light |
| 28 | 25A | Trailer |
| 31 | 30A | Rear lid control unit |
| 32 | 7.5A/10A | Control unit for park distance control, front camera and radar |
| 33 | 7.5A | Airbag |
| 34 | 7.5A | Reverse switch, climate sensor, electrochromic mirror, rear power sockets (USB) |
| 35 | 7.5A | Diagnosis, headlight control unit, headlight adjuster |
| 38 | 25A | Trailer |
| 39 | 30A | Right door |
| 40 | 20A | 12V socket |
| 41 | 25A | Driver and passenger seat belt pre-tensioner |
| 42 | 40A | Central locking |
| 43 | 30A | Beats Audio CAN and MOST |
| 44 | 15A | Trailer |
| 45 | 15A | Electric driver's seat |
| 46 | 7.5A | USB socket |
| 47 | 15A | Rear window wiper |
| 49 | 7.5A | Starter motor; clutch sensor |
| 52 | 15A | Driving mode |
| 53 | 30A | Heated rear window |
| In-line fuse | ||
| 30A | 230 V rear power sockets |

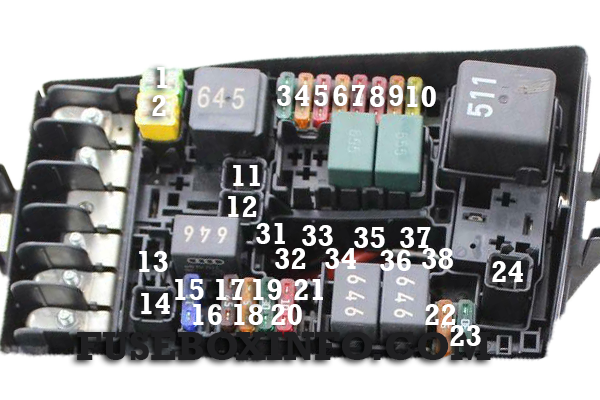

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | ESP control unit |
| 2 | 40A/60A | ESP control unit |
| 3 | 30A/15A | Engine control unit (diesel/petrol) |
| 4 | 7.5A/10A | Engine sensors |
| 5 | 10A | Engine sensors |
| 6 | 7.5A | Brake light sensor |
| 7 | 10A | Engine power supply |
| 8 | 10A | Lambda probe |
| 9 | 20A | Engine |
| 10 | 15A/20A | Fuel pump control unit |
| 11 | 40A | PTC |
| 12 | 40A | PTC |
| 13 | 15A/30A | Gearbox pump |
| 14 | 40A | Heated windscreen |
| 15 | 15A | Horn |
| 16 | 20A | Petrol pump |
| 17 | 7.5A | Engine control unit |
| 18 | 7.5A | Terminal 30 (positive reference) |
| 19 | 30A | Front windscreen washer |
| 21 | 15A/30A | Automatic gearbox control unit |
| 22 | 7.5A | Engine control unit |
| 23 | 30A | Starter motor |
| 24 | 40A | PTC |
| 36 | 15A | Left LED headlight |
| 37 | 20A | Parking heating |
| 38 | 15A | Right LED headlight |
