Seat Altea 2012 Fuse Box

Seat Altea 2012 Fuse Box Info

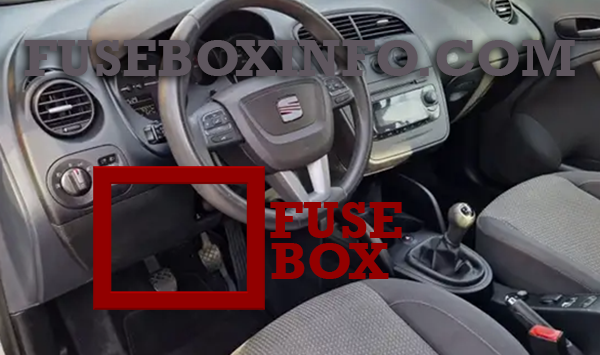

Passenger compartment fuse box location:

The fuse box is located under the instrument panel behind the cover on the driver’s side.



Engine compartment fuse box location:







Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 - Vacant
2 - Vacant
3 - Vacant
4 - Vacant
5 - Vacant
6 - Vacant
7 - Vacant
8 - Vacant
9 5A Airbag
10 10A RSE input (roof screen)
11 - Vacant
12 10A Left xenon headlight
13 5A Instrument panel (oil level)/Switchboard wiring (BCM)/Heater / ABS, ESC / Park Pilot/ Gateway/ Flow meter
14 10A Gearbox/ Power steering/ Brake light sensor/ Trailer/ ABS, ESC/ Haldex/ Light switch
15 10A Heated windscreen / Instrument lighting / Diagnosis switchboard/Engine management/Additional heating/AFS headlights/Park Pilot
16 10A Right xenon headlight
17 10A Engine management / RSE system with START STOP
18 5A Kombi / levers with START STOP
19 15A Navigation/ radio with START STOP
20 10A Park Pilot (parking aid) / Gear lever/ ESC switchboard
21 - Vacant
22 5A Volumetric alarm sensor/ Alarm horn
23 10A Diagnosis/Rain sensor/Light switch
24 15A Trailer hook pre-installation assistant
25 - Vacant
26 20A Vacuum pump
27 10A RSE supply (Ceiling display) without START STOP
28 20A Rear window wiper motor
29 - Vacant
30 20A Cigarette lighter/power socket
31 - Vacant
32 - Vacant
33 40A Heater
34 - Vacant
35 - Vacant
36 - Vacant
37 - Vacant
38 - Vacant
39 15A Trailer control unit (coupling)
40 20A Trailer control unit (turn signals, brakes and left side)
41 20A Trailer control unit (fog light, reverse light and right side)
42 20A BCM wiring switchboard
43 40A Trailer pre-installation
44 25A Heated rear window
45 30A Electric windows (front)
46 30A Rear electric windows
47 15A Engine (Fuel control unit, petrol relay)
48 20A Convenience controls
49 40A Heating controls
50 30A Heated seats
51 20A Sunroof
52 20A Headlight washer system
53 20A Trailer hook pre-installation assistant
54 5A Taxi (taximeter power supply)
55 20A Trailer hook pre-installation assistant
56 15A Taxi (taximeter power supply)
57 10A Telephone power supply with START STOP
58 30A Central locking control unit



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 20A Windscreen wipers
2 30A DQ200 gearbox
3 5A Cable control unit
4 20A ABS
5 15A AQ gearbox
6 5A Instrument panel/Steering column
7 40A Ignition key
8 15A Radio
9 5A Telephone/TomTom Navigator
10

5A

10A

Engine management

Engine management

11 - Vacant
12 5A Electronic control unit
13

15A

30A

Petrol injection module supply

Diesel injection module supply

14 20A Coil
15

5A

10A

Engine management

Pump relay

16 30A Right lighting
17 15A Horn
18 - Vacant
19 30A Clean
20

10A

20A

Water pump

Pressure sensor pump for 1.8 engine

21 15A Lambda probe
22 5A Brake pedal, speed sensor
23

5A

10A

15A

Engine management

Engine management

Engine management

24 10A AKF, gearbox valve
25 40A ABS pump
26 40A Left lighting
27

40A

50A

Engine management

Engine management

28 - Vacant
29

50A

30A

Electric windows (front and back)

Electric windows (front)

30 50A Ignition key
