Seat Toledo 2015 Fuse Box Info

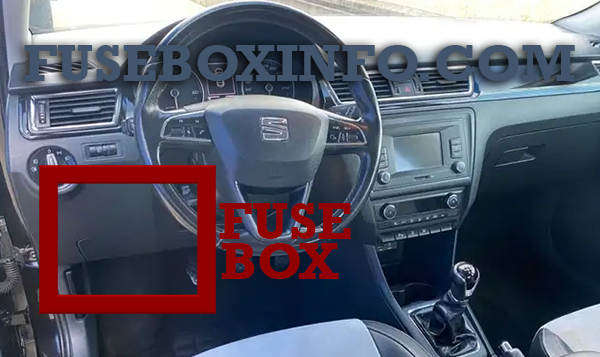

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the cover on the driver’s side.

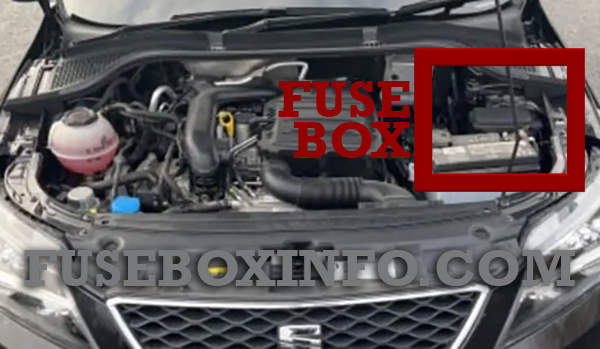

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Left light |
| 2 | Central locking |
| 3 | Ignition system relay |
| 4 | Right light |
| 5 | Electric windows - Driver |
| 6 | Central control unit - Interior lights |
| 7 | Horn |
| 8 | Towing bracket - Left light |
| 9 | Control lever under steering wheel, motor control device (without Keyless Access), automatic transmission (without Keyless Access), automatic transmission selector lever (without Keyless Access), ESC (without Keyless Access), trailer sensor control device (without Keyless Access), steering force assist (without Keyless Access), Airbag (without Keyless Access) |
| 10 | Electric window - rear left |
| 11 | Headlight washer unit |
| 12 | Radio and navigation display |
| 13 | Preparation as taxi |
| 14 | Control lever under steering wheel, light switch, traction locking with ignition key (automatic transmission), headlight flasher, SmartGate control device, rain sensor, telephone preparation |
| 15 | Air conditioning system control unit, automatic gearbox selector lever, diagnostics connection |
| 16 | Instrument panel |
| 17 | Alarm sensor, horn |
| 22 | Automatic windscreen and front window washer |
| 23 | Heated front seats |
| 24 | Air conditioning fan, heating, control unit for air conditioning, heating |
| 26 | Front seat heating switch |
| 27 | Rear window wiper |
| 29 | Airbag (Keyless Access) |
| 30 | Electric windows, headlight switch, reversing light switch, air conditioning control unit, parking aid control unit, exterior mirror, feed for middle button bar, feed for the side button bar, interior mirror, telephone preparation |
| 31 | Fuel pump, radiator fan control unit, cruise control, relay coil for the windscreen and rear window washer system |
| 32 | Diagnostics socket, headlight range regulator, control lever under the steering wheel |
| 33 | Ignition relay coil, clutch pedal switch |
| 34 | Heated windscreen washer jets |
| 37 | Radar |
| 39 | Additional electric heating |
| 41 | Rear window heater |
| 42 | Electric windows - passenger |
| 43 | Towing bracket - Connector contact |
| 44 | Lighter, 12 volt socket |
| 45 | Electric window - rear right |
| 46 | Windshield and front window washing system, control lever under the steering wheel |
| 47 | Towing bracket - Connector contact |
| 48 | Towing bracket - Right hand light |
| 49 | Fuel pump control unit |
| 50 | Radio |
| 51 | Heat for exterior mirrors |
| 52 | Keyless Access |
| 53 | Steering block seized (Keyless Access) |
| 54 | ABS/ESC control unit |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Radiator fan |
| 2 | Control unit for the glow system |
| 3 | ABS/ESC control unit |
| 4 | Additional electric heat - Circuit 2 |
| 5 | Additional electric heat - Circuit 3 |
| 6 | Automatic gearbox |
| 7 | Engine control unit |
| 8 | Front windscreen wipers |
| 9 | Central control unit, battery data module |
| 10 | ABS/ESC control unit |
| 12 | Engine components |
| 13 | Brake pedal switch |
| 14 | Engine components, fuel coil relay, radiator fan, coolant pump |
| 15 | Engine control unit |
| 16 | Starter motor |
| 17 | Engine control unit |
| 18 | Engine components, additional electric heat relay coils |
| 19 | Lambda probe |
| 20 | Control devices for the glow system, heating of the sump fan |
