Seat Tarraco 2019 Fuse Box Info
Fuse box location:

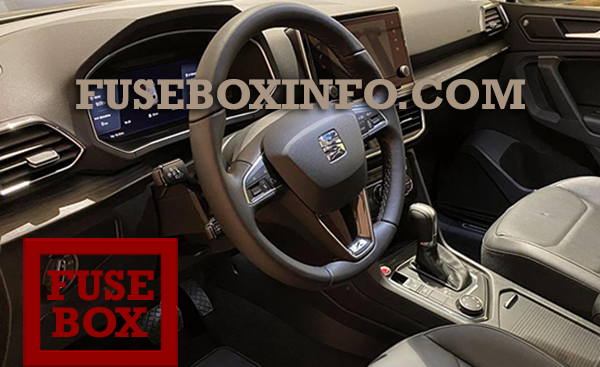

The fuse box is on the driver-side dash panel.
Engine compartment fuse box:

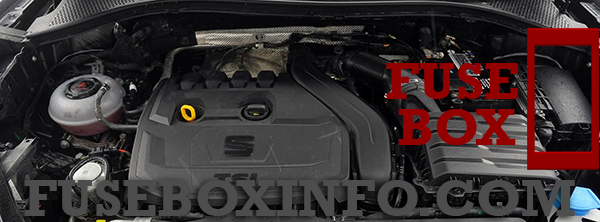

Fuse arrangement in engine compartment.

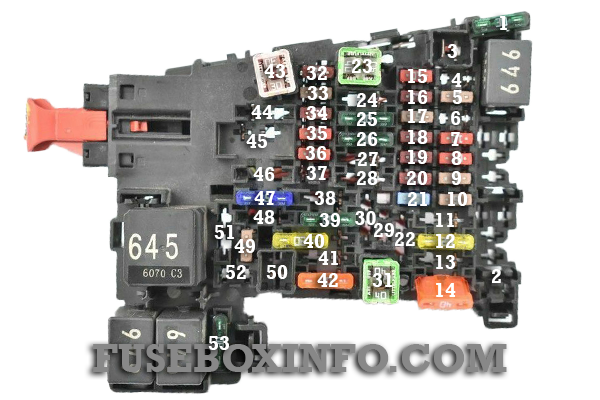

Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Adblue (SCR) |
| 4 | 7.5A | DWA warning horn, on-board computer |
| 5 | 7.5A | Gateway |
| 6 | 7.5A | Automatic gearbox lever |
| 7 | 10A | Air conditioning and heating control panel, back window heating, auxiliary heating, rear heating |
| 8 | 7.5A | Diagnosis, handbrake switch, light switch, reverse light, interior lighting, driving mode, lit-up door sill, light/humidity/rain sensor, curve lighting control unit |
| 9 | 7.5A | Steering column control unit |
| 10 | 7.5A | Radio display |
| 11 | 40A | On-board computer control unit |
| 12 | 20A | Infotainment radio |
| 13 | 25A | Driver seat belt pre-tensioner |
| 14 | 40A | Air conditioner fan |
| 15 | 10A | Steering column release |
| 16 | 7.5A | GSM signal reception and stabilisation, mobile phone interface, USB connections control unit |
| 17 | 7.5A | Dashboard, OCU navigation interface |
| 18 | 7.5A | Surroundings camera and rear camera control unit |
| 19 | 7.5A | Kessy |
| 20 | 7.5A/15A | SCT 1.5 L engine vacuum pump |
| 21 | 15A | 4x4 Haldex Control Unit |
| 22 | 15A | Trailer |
| 23 | 20A | Electric sunroof |
| 24 | 40A | On-board computer |
| 25 | 30A | Left doors |
| 26 | 30A | Heated seats |
| 27 | 30A | Interior light |
| 28 | 25A | Trailer |
| 31 | 30A | Electrical lid control unit |
| 32 | 10A | Control unit for parking aid, front camera and radar |
| 33 | 7.5A | Airbag |
| 34 | 7.5A | Reverse switch, climate sensor, electrochromic mirror, electromechanical brake |
| 35 | 7.5A | Diagnosis connector |
| 38 | 25A | Trailer |
| 39 | 30A | Right doors |
| 40/1 | 20A | 12V socket |
| 41 | 25A | Passenger seat belt pre-tensione |
| 42 | 40A | Central locking |
| 43 | 30A | Digital sound control unit |
| 44 | 15A | Trailer |
| 45 | 15A | Electric driver's seat |
| 47 | 15A | Rear window wiper |
| 49 | 7.5A | Starter motor |
| 51 | 25A | Rear AC |
| 52 | 15A | Driving mode |
| 53 | 30A | Heated rear window |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | ABS/ESP control unit |
| 2 | 40A/60A | ABS/ESP control unit |
| 3 | 15A/30A | Engine control unit (petrol/diesel) |
| 4 | 7.5A/10A | Engine sensors, electric fans, pressure regulator, flow rate meter, spark plug relay (diesel), PTC relays |
| 5 | 10A | Engine sensors |
| 6 | 7.5A | Brake light sensor |
| 7 | 7.5A/10A | Engine power supply |
| 8 | 10A/15A | Lambda probe |
| 9 | 10A/20A | Engine |
| 10 | 15A/20A | Fuel pump control unit |
| 11 | 40A | PTC |
| 12 | 40A | PTC |
| 13 | 30A | Automatic transmission oil cooling pump |
| 15 | 15A | Horn |
| 16 | 20A | Ignition coil relay (2.0 petrol) |
| 17 | 7.5A | Engine control unit, ABS/ESP control unit, primary relay |
| 18 | 7.5A | Terminal 30 (positive reference) |
| 19 | 30A | Front windscreen washer |
| 21 | 15A | Automatic gearbox control unit |
| 22 | 7.5A | Engine control unit |
| 23 | 30A | Starter motor |
| 24 | 40A | PTC |
| 36 | 15A | Left headlight |
| 37 | 20A | Parking heating |
| 38 | 15A | Right headlight |
