Mazda6 2012 Fuse Box Info
Fuse box location:
The fuse box is on the vehicle's left side.

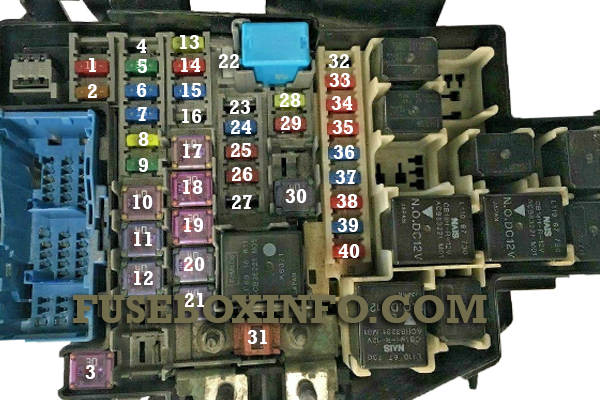

Engine compartment fuse box:
Fuse arrangement in engine compartment.
Fuse Box Diagram | Layout

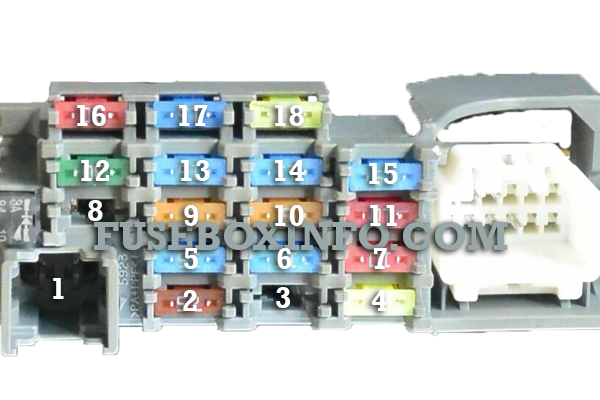

Passenger compartment fuse box:
| Fuse | Rating | Functions |
| 1. P.WIND | 30A | Power window |
| 2. METER IG | 15A | For protection of various circuits |
| 3. ILLUMI | 7.5A | BCM, Illumination |
| 4. MIRROR | 5A | Power control mirror |
| 5. SAS | 5A | Air bag, ABS |
| 6. - | - | - |
| 7. INT, LOCK/SHIFT | 5A | AT shift* |
| 8. - | - | - |
| 9. HEGO | 5A | Engine control system* |
| 10. A/C | 10A | Air conditioner |
| 11. P.OUTLET/CIGAR | 15A | Power outlet |
| 12. D.LOOK | 25A | BCM, Door lock motor |
| 13. ENGINE IG | 15A | Engine control system |
| 14. WIPER | 25A | Windshield wiper and washer |
| 15. ROOM | 15A | Interior lights |
| 16. SPARE | 20A | - |
| 17. SPARE | 10A | - |
| 18. SPARE | - | - |
*Some models
Engine compartment fuse box:
| Fuse | Rating | Functions |
| 1. M.DEF | 10A | Mirror defroster* |
| 2. ST SIG | 5A | Starter sig |
| 3. ABS SOL | 30A | DSC |
| 4. P.WIND (P) | - | - |
| 5. P.SEAT (P) | 30A | Power seat* |
| 6. SUN ROOF | 15A | Moonroof* |
| 7. TAIL | 15A | BCM, Tail lamp |
| 8. P.OUTLET (R) | 15A | Accessory sockets |
| 9. AUDIO | 30A | Audio system (Bose® Sound System-equipped model) |
| 10. ABS MOTOR | 60A | DSC |
| 11. P.WIND (D) | 40A | Power window |
| 12. DEFOG | 40A | Rear window defroster |
| 13. SEAT HEAT | 20A | Seat heat* |
| 14. A/C | 10A | Air conditioner |
| 15. FOG | 15A | Fog lights* |
| 16. BLOWER 2 | - | - |
| 17. FAN | 60A | Cooling fan |
| 18. P.SEAT (D) | 30A | Power seat* |
| 19. BTN | 30A | For protection of various circuits |
| 20. IG KEY2 | 40A | Starting system |
| 21. BLOWER | 40A | Blower motor |
| 22. FUEL PUMP | 25A | Fuel pump |
| 23. ENGINE2 | 15A | Engine control system* |
| 24. EGI INJ | 15A | Injector |
| 25. PCM | 10A | Engine control system |
| 26. ENGINE |
10A*1 20A*2 |
Engine control system |
| 27. IG | 20A | For protection of various circuits* |
| 28. TCM | 20A | TCM* |
| 29. ESCL | 10A | Electronic steering lock* |
| 30. IG KEY1 | 40A | For protection of various circuits |
| 31. MAIN | 125A | For protection of all circuits |
| 32. DRL | 20A | DRL* |
| 33. HAZARD | 10A | Hazard warning flashers |
| 34. ENG+B | 10A | PCM |
| 35. STOP | 10A | Brake lights |
| 36. HORN | 15A | Horn |
| 37. HEAD HI RH | 15A | Headlight-high beam (Right)* |
| 38. HEAD LO RH | 10A | Headlight-low beam (Right) |
| 39. HEAD HI LH | 15A | Headlight-high beam (Left)* |
| 40. HEAD LO LH | 10A | Headlight-low beam (Left) |
*1 2.5-liter engine
*2 3.7-liter engine
*Some models
