Mazda6 2008 Fuse Box Info

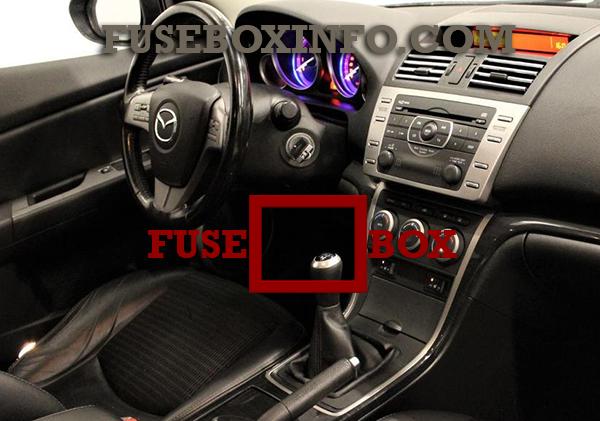

Fuse box location:
The fuse box is on the vehicle's left side.
Engine compartment fuse box:
Fuse arrangement in engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse | Rating | Functions |
| 1. CIGAR | 15A | Accessory socket |
| 2. ENGINE IG | 15A | Engine control system |
| 3. A/C | 10A | Heater |
| 4. MIRROR | 5A | Power control mirror |
| 5. SAS | 10A | ABS unit, SAS unit |
| 6. SEAT | 15A | Seat warmer* |
| 7. METER ACC | 5A | Audio light off unit |
| 8. METER IG | 15A | Instrument cluster |
| 9. R.WIP | 10A | Rear wiper* |
| 10. D.LOCK | 30A | Power door locks |
| 11. R.CIGAR | 15A | Accessory socket |
| 12. WIPER | 20A | Windshield wiper and washer |
| 13. ROOM | 15A | Overhead light |
| 14. SPARE | - | - |
| 15. SPARE | - | - |
| 16. SPARE | - | - |
*Some models
Engine compartment fuse box:
| Fuse | Rating | Functions |
| 1. SPARE | - | - |
| 2. SPARE | - | - |
| 3. SPARE | - | - |
| 4. M.DEF | 7.5A | Mirror defroster* |
| 5. - | - | |
| 6. INJ | 15A | Injector |
| 7. ENG BAR |
10A*1 15A*2 |
Air flow sensor, EGR control valve |
|
8. ―*1 8. ENG BB*2 |
- 5A |
- Cooling fan |
| 9. HEAD LR | 15A | Headlight-low beam (Right) |
| 10. HEAD LL | 15A | Headlight-low beam (Left) |
| 11. HEAD HL | 10A | Headlight-high beam (Left) |
| 12. HEAD HR | 10A | Headlight-high beam (Right) |
| 13. ETC | 7.5A | Accelerator position sensor |
| 14. HAZARD | 10A | Turn signal lights |
| 15. STOP | 20A | Brake/Horn |
| 16. TCM |
15A*1 10A*2 |
TCM |
| 17. ENG+B | 7.5A | PCM, TCM |
| 18. FUEL PUMP | 15A | Fuel pump |
| 19. IG KEY1 | 30A | Engine control unit, Lighter |
| 20. P.WIND | 30A | Power window |
| 21. - | - | - |
| 22. DRL | 20A | DRL |
| 23. - | - | - |
| 24. BLOWER | 40A | Blower motor |
| 25. BTN | 40A | Overhead light, Power door lock |
| 26. IG KEY2 | 40A | Rear wiper motor*, Heater control unit, Windshield wiper and washer |
| 27. DEFOG | 40A | Rear window defroster |
| 28. ABS | 60A | ABS* |
|
29. AD FAN*1 29. FAN2*2 |
30A | Cooling fan |
|
30. FAN*1 30. FAN1*2 |
30A | Cooling fan |
| 31. TAIL | 10A | Taillights, License plate lights, Parking lights |
| 32. ILLUMI | 10A | Dashboard illumination |
| 33. MAG | 10A | Magnet clutch |
| 34. AUDIO | 15A | Audio system |
| 35. P.SEAT | 30A | Power seat* |
| 36. OPENER | 7.5A | Trunk opener motor* |
| 37. - | - | - |
|
38. ―*1 38. IG1*2 |
- 15A |
- CAT SSR |
| 39. FOG | 15A | Fog lights* |
| 40. MAIN | 120A | For protection of all circuits |
*1 2.3-liter engine
*2 3.0-liter engine
*Some models
