Maserati Quattroporte 2014 Fuse Box Info
Fuse box location:
The interior fuse box is located in the rear compartment under the spare tire access panel.

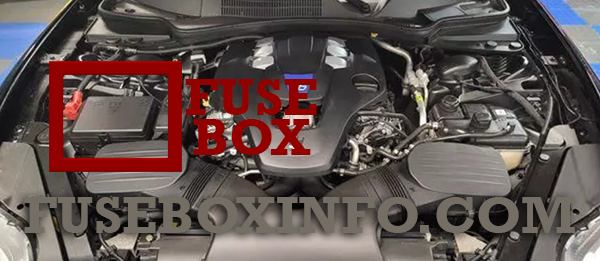

Engine compartment fuse box:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 2 | 40A | BCM module |
| 3 | 40A | BCM module |
| 4 | 30A | BCM module |
| 5 | 30A | BCM module |
| 6 | 20A | Sunroof |
| 7 | 30A |
Driver door module
|
| 8 | 30A |
Passenger door module
|
| 9 | - | - |
| 10 | 40A |
KI30 fuses F42-F60-F62-F66
|
| 11 | 40A |
High Premium stereo amplifier unit
|
| 15 | 40A |
HVAC front blower relay coil
|
| 16 | 40A |
Rear window defrost relay coil (HVAC module)
|
| 17 | 30A |
Rear LH door module
|
| 18 | 30A |
Rear RH door module
|
| 19 | 20A |
Electric Parking Brake
|
| 20 | 20A |
Electric Parking Brake
|
| 21 | - | - |
| 22 | 7.5A |
Rear HVAC module
|
| 23 | 10A |
Fuel door relay, RF Hub module
|
| 24 | 10A |
ITM module, ceiling light units (front and rear)
|
| 25 | 20A | Inverter |
| 26 | 15A |
Cluster module, clock
|
| 27 | 20A |
LH rear seat movement
|
| 31 | 25A |
LH front seat movement
|
| 32 | 10A |
START/STOP switch, diagnostic outlet
|
| 33 | 20A |
RH rear seat movement
|
| 34 | 10A |
HFM, MTC display, CSS switch, column module switch
|
| 35 | 20A |
Rear doors sunshade
|
| 36 | 10A |
Shift lever, TPMS module, Navtrak
|
| 37 | 20A | Radio |
| 38 | 25A |
RH front seat movement
|
| 40 | 20A |
Trunk power outlet
|
| 41 | - | - |
| 42 | 20A |
Premium stereo amplifier unit
|
| 43 | 20A |
Seat passenger heater module
|
| 44 | - | - |
| 45 | 10A |
Internal mirror, sunroof
|
| 46 | 5A | Rear camera |
| 47 | 5A | Navtrak |
| 48 | - | - |
| 49 | - | - |
| 50 | - | - |
| 51 | 25A |
Seat passenger and steering wheel heated module
|
| 52 | - | - |
| 53 | 25A |
Rear seats vented module
|
| 54 | - | - |
| 55 | - | - |
| 56 | 7.5A |
Internal temperature sensor, blower front HVAC coil relay, illum. AUX
|
| 57 | 10A |
HVAC rear module, blower rear HVAC coil relay
|
| 58 | 5A | Air bag module |
| 59 | 10A |
ADCM module, EPB module, EPB backlight control, gear lever, ASBM, rear tunnel stack switch
|
| 60 | 10A | ADCM Module |
| 61 | 25A |
Front console power outlet and cigar lighter
|
| 62 | 7.5A | HVAC module |
| 63 | 20A |
HVAC rear blower
|
| 64 | 10A | Wi-fi |
| 65 | 10A |
Intelligent battery sensor
|
| 66 | 10A |
Rear Seat Entertainment, Wi-fi
|
| 67 | 7.5A |
Rain Light Sensor (RLS), humidity sensor, USB charge outlet
|
| 68 | 20A |
Rear sunshade module
|
| 69 | 25A |
Rear console power outlet and cigar lighter
|
| 70 | 10A |
HVAC module, AFLM headlights module, Parking Aid Module PAM
|
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 2 | 50A |
Secondary air pump relay input
|
| 3 | - | - |
| 4 | 30A |
Starter motor relay input
|
| 5 | 40A |
ABS-ESP pump feed
|
| 6 | 30A |
AWD module (AWD model only)
|
| 7 | - | - |
| 8 | 25A |
ABS-ESP valve feed
|
| 9 | 10A |
AWD module (AWD model only)
|
| 10 | 15A |
Electric Steering Lock
|
| 11 | 20A | Horn relay input |
| 12 | 10A |
AC compressor relay input
|
| 13 | - | - |
| 14 | 7.5A | Alarm siren |
| 15 | 5A |
Washer heated nozzles relay input
|
| 16 | 10A |
Enable cooling fan relay input and enable steering-transmission cooling oil pump relay input
|
| 18 | - | - |
| 19 | 30A |
Headlamp washer relay input
|
| 20 | 30A |
Wiper motor relay output
|
| 21 | 20A |
LH low beam relay input
|
| 22 | 20A |
RH low beam relay input
|
| 23 | - | - |
| 24 | - | - |
| 28 | 7.5A |
IPC Instrument Panel Control
|
| 29 | 10A |
Primary load to PCM module
|
| 30 | 5A |
ORC- Air bag module
|
| 31 | 10A | ABS-ESP module |
| 32 | 5A |
SCCM and AWD module
|
| 33 | 10A | HDLP Headlights |
| 34 | 15A |
Primary load to engine harness LH side
|
| 35 | 15A |
Primary load to engine harness RH side
|
| 36 | 30A |
PCM module primary load
|
| 37 | 15A |
Engine secondary load
|
| 38 | 15A | Lambda sensor |
| 39 | 7.5A |
Flow meters, tank leakage, Canister, exhaust by-pass valve and relay coil
|
| 48 | - | - |
| 49 | 10A |
Pedal brake switch-TCM module
|
| 50 | 15A | +30 PCM module |
| 51 | 30A |
Primary left fuel pump relay input
|
| 52 | - | - |
| 53 | 30A |
Secondary right fuel pump relay input
|
