Maserati GranCabrio 2024 Fuse Box Info

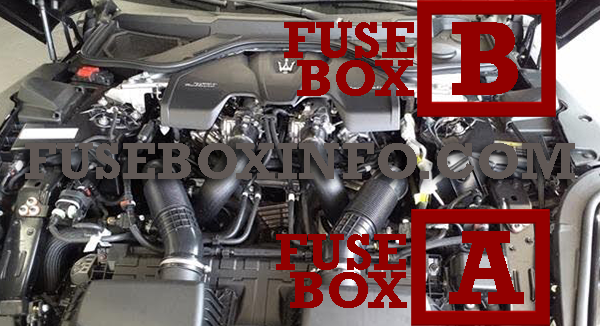

Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| F1 | 25A |
ECM input
|
| F2 | 5A |
Eldor Battery input
|
| F3 | 25A |
Primary Loads ECM LT input
|
| F4 | 15A |
Secondary Loads LT input
|
| F5 | 20A |
Secondary Loads RT input
|
| F6 | 20A |
Primary Loads ECM RT input
|
| F7 | 7.5A |
Dome console input
|
| F8 | 7.5A |
RFHUB input
|
| R3 | 30A |
HVAC Blower relay
|
| R4 | 30A |
Heater ADAS relay
|
|
|
||
| R1 | 30A |
Horn relay
|
| R2 | 30A |
Start&Stop relay
|
| R3 | 30A |
Starter relay
|
| R6 | 30A |
Cigarette Lighter relay
|
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| F01 | 60A | EPS1 module |
| F02 | 60A | IBS module |
| F03 | 15A | Cigarette Lighter / Power Outlet input |
| F04 | 40A | IBS valves module |
| F05 | 60A | EPS2 module |
| F06 | 30A | ETM R1 module |
| F07 | 50A | Engine main input |
| F08 | 40A | HVAC Blower input |
| F09 | 20A | BCM module |
| F10 | 10A | Horn input |
| F11 | 10A | EPS1 module |
| F14 | 15A | TCM module |
| F15 | 20A | Starter input |
| F16 | 3A | Clockspring input |
| F17 | 10A | EPS2 module |
| F18 | 10A | BCM 3 module |
| F19 | 15A | Devio, HUD & IPC module |
| F20 | 20A | LT Headlamp input |
| F21 | 20A | RT Headlamp input |
| F22 | 20A | Master F90, FXX |
| F23 | 20A | Master F7, F8 |
| F24 | 7.5A | SGW, HRLS module |
| F30 | 20A | BCM 4 module |
| F81 | 25A | DTCM AWD module |
| F82 | 20A | Wiper input |
| F83 | 20A | Master F87 |
| F84 | 7.5A | ECM Module |
| F87 | 5A | ADAS input |
| F88 | 10A | A/C Compressor module |
| F90 | 10A | ECM/DTCM module |
| FXX | 7.5A | AQS module |
| T07 | 50A | Engine main relay |
| T09 | 30A | BCM module relay |
| T17 | 30A | A/C Compressor relay |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F2 | 25A | Motor H001 input |
| F3 | 7.5A | E-Latch Passenger side input |
| F4 | 7.5A | E-Latch Driver side input |
| F8 | 25A | Motor H002 input |
| R1 | 50A | VDCM Air Spring relay |
| T02 | 30A | ECU VDCM Relay |
| T05 | 30A | Fuel Pump 2 relay |
| T06 | 30A | Steering Wheel Heater relay |
| T10 | 30A | Fuel Pump 1 Relay |
| T20 | 30A | H001 Heated relay |
| T31 | 30A | H002 Heated relay |
| F01 | 50A | Master FXX / 4+2 MTA (F3 - F4) input |
| F02 | 30A | BCM1 module |
| F03 | 30A | eLSD module |
| F04 | 25A | Passenger Door module |
| F05 | 25A | Driver Door module |
| F06 | 25A | BCM2 module |
| F07 | 30A | Fuel pump 2 module |
| F08 | 30A | HI-FI module |
| F09 | 20A | ECU VDCM module |
| F10 | 10A | ORC module |
| F11 | 5A | Wireless Charger input |
| F14 | 7.5A | ITM module |
| F15 | 40A | Air Spring module |
| F16 | 10A | IBS module |
| F17 | 7.5A | USB Charger input |
| F18 | 15A | CVPAM / H001 / H002 / ALM I025 HUB / HFRM / C070 module |
| F19 | 10A | Steering Wheel Heater input |
| F20 | 25A | Master E-Latch module |
| F22 | 20A | 12 V Trunk Compartment Power Outlet |
| F23 | 25A | H001 Heated & Comfort input |
| F24 | 15A | Rear input |
| F30 | 30A | PLGM module |
| F81 | 50A | Defrost module |
| F82 | 30A | HI-FI 2 module |
| F83 | 30A | Fuel Pump 1 module |
| F84 | 10A | VDCM module |
| F87 | 15A | CADM module |
| F88 | 7.5A | ORC module |
| F89 | 30A | Rear F87 + F24 module |
| F90 | 7.5A | Heated Mirrors & Heated Nozzles module |
| FXX | 25A | H002 Heated & Comfort input |
| T09 | 30A | Power Outlet relay |
| T17 | 30A | Defrost relay |
| R1 | 50A | Rear Defrost Relay |
Luggage compartment fuse box (Located on the positive post of the battery, inside the inner central side of the boot
compartment.):
| Fuse/Relay N° | Rating | Functions |
| F01 | 30A |
Air Scarf Driver
|
| F03 | 40A |
Soft Top
|
| F04 | 30A |
Air Scarf Passenger
|
