Lexus CT 200h 2011 Fuse Box Info

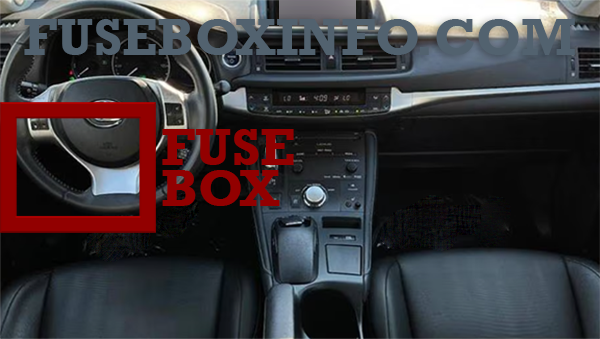

Passenger compartment fuse box location:
The fuse box is located under the instrument panel on the driver’s side.

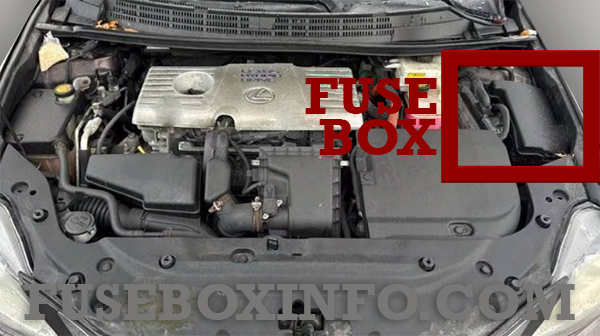

Engine compartment fuse box location:
Fuse Box Diagram | Layout

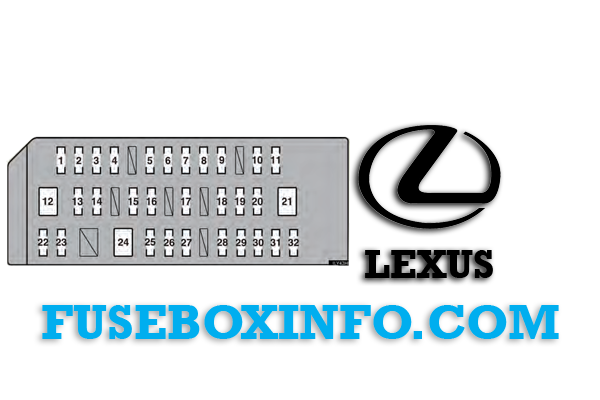

Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. TAIL | 10A | Headlights (high beam), stop/tail lights, license plate lights, parking lights |
| 2. PANEL | 10A | Audio system, intuitive parking assist switch, windshield wiper de-icer switch, navigation system, fuel filler door opener, glove box light, head light cleaner switch, emergency flasher switch, air conditioning system, outside rear view mirrors, driving mode select switches, P position switch, instrument panel light control dial, shift position indicators, seat heater switches, heated steering wheel switch, pre-collision braking off switch |
| 3. IGN | 10A | Electronically controlled brake system, smart access system with push button start, multiport fuel injection system/sequential multiport fuel injection system, stop/tail lights, SRS airbags |
| 4. MET | 7.5A | Gauges and meters |
| 5. WIP | 30A | Windshield wipers |
| 6. RR WIP | 20A | Rear window wiper and washer |
| 7. WASHER | 15A | Windshield washer |
| 8. A/C | 10A | Air conditioning system |
| 9. GAUGE | 10A | Windshield wiper de-icer switch, automatic headlight leveling system |
| 10. ECU-IG NO.2 | 10A | Windshield wipers, intuitive parking assist, electronically controlled brake system, navigation system, electric power steering system, turn signal lights, emergency flashers, yaw rate and G sensor, headlight cleaner, out side rear view mirrors, driving mode select switches, overhead module, pre-collision seat belts, seat heater switches, heated steering wheel switch, tire pressure warning system, dynamic radar cruise control |
| 11. ECU-IG NO.1 | 10A | No circuit |
| 12. S/ROOF | 30A | Moon roof |
| 13. DOOR RL | 25A | Power windows |
| 14. DOOR RR | 25A | Power windows |
| 15. D FR DOOR | 25A | Power windows, outside rear view mirrors |
| 16. P FR DOOR | 25A | Power windows, outside rear view mirrors |
| 17. STOP | 10A | Stop/tail lights, electronically controlled brake system, pre-collision system |
| 18. RR FOG | 7.5A | Stop/tail lights |
| 19. FUEL OPEN | 7.5A | Fuel filler door opener |
| 20. OBD | 7.5A | On-board diagnosis system |
| 21. PWR SEAT | 30A | Power seat |
| 22. FR FOG | 15A | Front fog lights |
| 23. DBL LOCK | 25A | No circuit |
| 24. PSB | 30A | Pre-collision seat belts |
| 25. STRG HTR | 10A | Heated steering wheel |
| 26. DOOR NO.1 | 25A | Power door lock system |
| 27. SEAT HTR FL | 10A | Seat heaters |
| 28. SEAT HTR FR | 10A | Seat heaters |
| 29. RAD NO.2 | 7.5A | Audio system, navigation system, overhead module |
| 30. PWR OUTLET | 15A | Power outlet |
| 31. ECU-ACC | 10A | Air conditioning system, outside rear view mirror switches |
| 32. PWR OUTLET2 | 15A | No circuit |

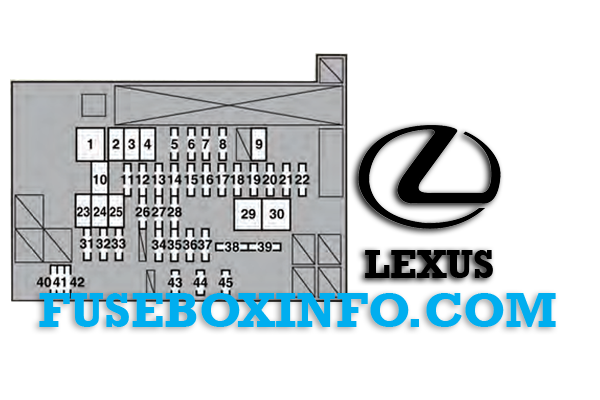

Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. DC/DC | 125A | Inverter and converter |
| 2. HTR | 50A | Air conditioning system |
| 3. RDI | 30A | Electric cooling fans |
| 4. CDS | 30A | Electric cooling fans |
| 5. RAD NO.1 | 15A | Audio system, navigation system |
| 6. S-HORN | 10A | Navigation system |
| 7. ENG W/P | 30A | Cooling system |
| 8. ABS MAIN NO.2 | 7.5A | Electronically controlled brake system |
| 9. H-LP CLN | 30A | Headlight cleaner |
| 10. P CON MTR | 30A | P position control system |
| 11. AMP NO.2 | 30A | Audio system |
| 12. ETCS | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 13. IGCT | 30A | PCU, IGCT NO.2, IGCT NO.3 |
| 14. DC/DC-S | 5A | Inverter and converter |
| 15. P CON MAIN | 7.5A | P position control system, P position switch |
| 16. AM2 | 7.5A | Power management system |
| 17. ECU-B2 | 7.5A | Smart access system with push-button start |
| 18. MAYDAY | 10A | MAYDAY |
| 19. ECU-B3 | 10A | Air conditioning system |
| 20. TURN & HAZ | 10A | Turn signal lights, emergency flashers |
| 21. AMP NO.1 | 30A | Audio system |
| 22. ABS MAIN NO.1 | 20A | Electronically controlled brake system |
| 23. P/I 2 | 40A | P position control system, horn, headlights (low beam), back-up lights |
| 24. ABS MTR 1 | 30A | Electronically controlled brake system |
| 25. ABS MTR 1 | 30A | Electronically controlled brake system |
| 26. H-LP HI MAIN | 20A | H-LP RH HI, H-LP LH HI |
| 27. DRL | 7.5A | Daytime running light system |
| 28. DOOR NO.2 | 25A | Power door lock system |
| 29. P/I 1 | 60A | IG2, EFI MAIN, BATT FAN |
| 30. EPS | 60A | Electric power steering system |
| 31. PCU | 10A | Hybrid system |
| 32. IGCT NO.2 | 10A | Hybrid system, P position control system, power management system |
| 33. IGCT NO.3 | 10A | Cooling system |
| 34. DOME | 10A | Luggage compartment light, overhead module, interior lights, personal lights, vanity lights, footwell lights |
| 35. ECU-B | 7.5A | Smart access system with push-button start, front passenger occupant classification system, gauges and meters, outside rear view mirrors, air conditioning system, driving position memory system, electric power steering system, clock |
| 36. H-LP LH HI | 10A | Left-hand headlight (high beam) |
| 37.H-LP RH HI | 10A | Right-hand headlight (high beam) |
| 38. EFI NO. 2 | 10A | Multiport fuel injection system/sequential multiport fuel injection system, exhaust system, key off pump module, electric cooling fans |
| 39. M-HTR | 10A | Outside rear view mirror defoggers |
| 40. SPARE | 30A | Spare fuse |
| 41. SPARE | 10A | Spare fuse |
| 42. SPARE | 7.5A | Spare fuse |
| 43. EFI MAIN | 20A | Multiport fuel injection system/sequential multiport fuel injection system, cooling system, EFI NO.2 |
| 44. BATT FAN | 10A | Battery cooling fan |
| 45. IG2 | 20A | Hybrid system, multiport fuel injection system/sequential multiport fuel injection system, MET, IGN, power management system |
