Lexus LS 600h L 2010 Fuse Box Info
Passenger compartment fuse box location:

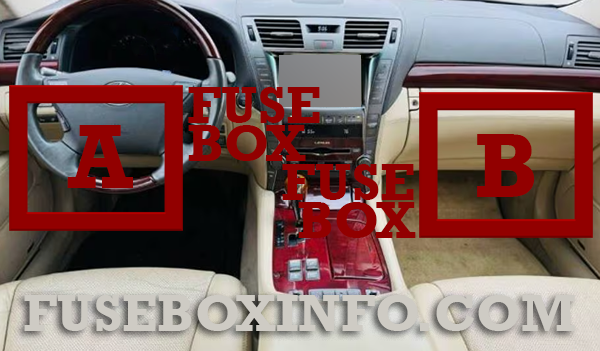

The fuse box A is located under the instrument panel on the driver’s side. The fuse box B is located under the instrument panel on the passenger’s side.
Engine compartment fuse box location:

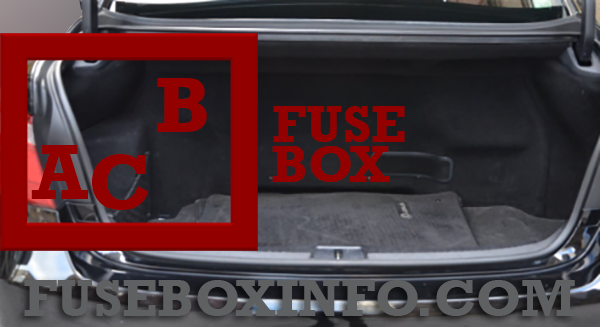

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. D-IG1-3 | 10A | Transmission, power door lock system, air conditioning system, brake system, rear window defogger, moon roof, main body ECU, pre-collision seat belt, electric parking brake, power outlet, climate control seat system, turn signal lights, active stabilizer suspension system |
| 2. D-IG1-2 | 5A | Cruise control system |
| 3. D-IG1-4 | 15A | Heated steering wheel |
| 4. D-IG1-1 | 5A | Front seat adjustment, tilt and telescopic steering, pre-collision system, hybrid system |
| 5. PWR OUTLET | 15A | Power outlet |
| 6. D-ACC | 5A | Main body ECU |
| 7. S/ROOF | 30A | Moon roof |
| 8. TI&TE | 30A | Tilt and telescopic steering |
| 9. AM1 | 5A | Main body ECU |
| 10. OBD | 10A | On-board diagnosis system |
| 11. D P/SEAT | 30A | Front seat adjustment |
| 12. D S/HTR | 20A | Climate control seat system |
| 13. D RR S/HTR | 30A | Climate control seat system |
| 14. D MPX-B 1 | 10A | Gauges and meters, front seat adjustment, tilt and telescopic steering, power door lock system |
| 15. DOME | 10A | Interior lights, clock |
| 16. D MPX-B 2 | 10A | Audio system |
| 17. PANEL | 10A | Fuel filler door opener, power trunk lid, console box light, interior lights, coin holder light, glove box light, turn signal lights, electric parking brake, navigation system, power outlet, climate control seat system, odometer, trip meter, audio system, cool box, rear seat relaxation system |
| 18. SECURITY | 5A | Smart access system with push-button start |
| 19. STR LOCK | 20A | Tilt and telescopic steering |
| 20. D DOOR 2 | 10A | Power door lock system |
| 21. HAZ | 10A | Emergency flashers |
| 22. D RR DOOR | 25A | Interior lights, door closer, power door lock system, power windows |
| 23. D DOOR 1 | 25A | Interior lights, outside rear view mirror, power door lock system, door closer, power windows, outside rear view mirror defogger |
| 24. STOP | 5A | Stop lights |
| 25. AMP | 30A | - |
Passenger compartment fuse box B:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. P-IG1-2 | 5A | Pre-collision system |
| 2. P-IG1-3 | 5A | VGRS |
| 3. P-IG1-1 | 10A | Navigation system, power door lock system, VDIM, air conditioning system, pre-collision seat belt, intuitive parking assist, tire pressure warning system |
| 4. P-IG1-4 | 10A | Climate control seat system, air conditioning system |
| 5. P-CIG | 15A | Cigarette lighter |
| 6. P-ACC | 5A | Navigation system, clock, intuitive parking assist |
| 7. A/C | 10A | Air conditioning system |
| 8. P S/HTR | 20A | Climate control seat system |
| 9. P P/SEAT 2 | 30A | Front seat adjustment |
| 10. RR SEAT | 30A | Rear seat adjustment |
| 11. P P/SEAT 1 | 30A | Front seat adjustment |
| 12. P RR S/HTR | 30A | Climate control seat system |
| 13. P IG2 | 5A | Tilt and telescopic steering, smart access system with push-button start, gauges and meters |
| 14. P RR-IG2 | 5A | Lexus link system |
| 15. P MPX-B | 10A | Power door lock system, front seat adjustment, VDIM, smart access system with push-button start, VGRS, hybrid system, intuitive parking assist, rear seat adjustment |
| 16. AIR SUS | 20A | Electronically modulated air suspension system |
| 17. AM2 | 10A | Main body ECU |
| 18. RADIO NO.1 | 20A | Navigation system, Lexus link system |
| 19. PMG | 5A | - |
| 20. P-D/C CUT | 5A | Power windows, steering wheel switches |
| 21. P DOOR 2 | 10A | Power door lock system |
| 22. P RR DOOR | 25A | Interior lights, power door lock system, door closer, power window |
| 23. P DOOR 1 | 25A | Interior lights, outside rear view mirror, power door lock system, door closer, power windows, outside rear view mirror defogger |
| 24. AMP | 30A | Audio system |
Engine compartment fuse box A:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. DEICER | 25A | Windshield wiper de-icer |
| 2. WIP | 30A | Windshield wiper |
| 3. ABS MAIN 2 | 10A | Brake system |
| 4. IGCT 1 | 25A | INV W/P |
| 5. EPS ECU | 10A | EPS |
| 6. FR CTRL BAT | 30A | Headlight high beams, horns |
| 7. E/G RM-IG1-2 | 10A | AFS, multiport fuel injection system/sequential multiport fuel injection system, headlight cleaner, pre-collision system |
| 8. E/G RM-IG1-1 | 10A | Air conditioning system, EPS, electric cooling fans, AFS |
| 9. H-LP LL | 15A | Headlight low beam (left) |
| 10. ABS MAIN 1 | 10A | Brake system |
| 11. H-LP RL | 15A | Headlight low beam (right) |
| 12. ETCS | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 13. NV IR | 10A | Pre-collision system |
| 14. IGN | 10A | Multiport fuel injection system/sequential multiport fuel injection system, brake system, SRS airbag system |
| 15. ECU-IG | 10A | Multiport fuel injection system/sequential multiport fuel injection system, stop lights, hybrid system |
| 16. D/C CUT 1 | 30A | ECU-B, D MPX-B 1, DOME, D MPX-B 2 |
| 17. ECU-B | 10A | Headlight low beams |
| 18. A/F | 15A | Multiport fuel injection system/sequential multiport fuel injection system |
| 19. EDU2 | 25A | Multiport fuel injection system/sequential multiport fuel injection system |
| 20. FR CTRL ALT | 20A | Windshield washer, alarm, headlight cleaner, parking lights, side marker lights |
| 21. EDU1 | 25A | Multiport fuel injection system/sequential multiport fuel injection system |
| 22. RELIEF VLV | 10A | Fuel system |
| 23. FR FOG | 15A | Front fog lights |
| 24. A/C W/P | 10A | Air conditioning system |
| 25. H-LP LVL | 10A | Discharge headlights, headlight high beams |
| 26. P-J/B | 10A | P IG2, P RR-IG2 |
| 27. INJ | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 28. D/C CUT 2 | 30A | P MPX-B, RR MPX-B 1, RR MPX-B 2 |
| 29. IGCT2 | 25A | IGCT2 NO.2, hybrid system |
| 30. ABS MAIN3 | 10A | Brake system |
| 31. EFI MAIN2 | 25A | EFI, EFI-B, multiport fuel injection system/sequential multiport fuel injection system |
| 32. EFI MAIN | 25A | Multiport fuel injection system/sequential multiport fuel injection system, fuel system |
| 33. EFI | 10A | Multiport fuel injection system/sequential multiport fuel injection system, fuel system |
| 34. EFI-B | 10A | Multiport fuel injection system/sequential multiport fuel injection system, fuel system |
| 35. INV W/P | 10A | Hybrid system |
| 36. ST | 30A | - |
| 37. ABS MTR1 | 50A | Brake system |
| 38. ABS MTR2 | 50A | Brake system |
| 39. VVT | 40A | Multiport fuel injection system/sequential multiport fuel injection system |
Engine compartment fuse box B:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. IGCT2 NO.2 | 10A | IGCT 3, hybrid system |
Engine compartment fuse box C:
| Fuse/Relay N° and Name | Rating | Functions |
| 2. PTC HTR 3 | 25A | PTC heater |
| 3. PTC HTR 1 | 25A | PTC heater |
Engine compartment fuse box D:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. P-J/B DC/DC | 100A | P P/SEAT 1, A/C, RR SEAT, P P/SEAT 2, P S/HTR, P RR S/HTR, P-IG1-1, P-IG1-2, P-IG1-3, P-IG1-4, P-ACC, P-CIG, AIR SUS |
| 2. E/G RM1 | 80A | DEICER, WIP, E/G RM-IG1-1, E/G RM-IG1-2, NV IR, FR FOG, FR CTRL ALT, ABS MTR1, A/C W/P, front fog lights |
| 3. FAN NO.1 | 80A | Electric cooling fans |
| 4. PTC HTR | 50A | PTC HTR 1, PTC HTR 3 |
| 5. AIR SUS | 40A | Electronically modulated air suspension system |
| 6. HTR | 50A | Air conditioning system |
| 7. DEFOG | 40A | Rear window defogger |
| 8. H-LP CLN | 30A | Headlight cleaner |
| 9. E/G RM B | 80A | D/C CUT 1, FR CTRL BAT, EPS ECU, ABS MAIN 2, ABS MTR2, IGCT1, H-LP RL, H-LP LL, H-LP LVL, headlight low beams |
| 10. EFI | 80A | VVT, ETCS, ABS MAIN 1, EDU1, EDU2, A/F, RELIEF VLV, ECU-IG, IGN, INJ, P-J/B |
| 11. OIL PMP | 60A | Transmission |
| 12. EFI NO.1 | 40A | EFI MAIN, EFI MAIN NO. 2 |
| 13. VGRS | 40A | VGRS |
| 14. P-J/B B | 40A | P DOOR 1, P RR DOOR, AM2, RADIO NO.1, P-D/C CUT, P DOOR 2, AMP |
| 15. E/G RM B2 | 40A | ABS MAIN 3, IGCT2, D/C CUT 2 |
Luggage compartment fuse box A:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. RR-IG1-3 | 10A | Climate control seat system |
| 2, RR-IG1-4 | 10A | Rear seat relaxation system |
| 3. RR-IG1-2 | 10A | Power door lock system, power trunk lid, cool box, air conditioning system |
| 4. RR-IG1-1 | 5A | Capacitor, electric parking brake, pre-collision seat belt, rear seat relaxation system, active stabilizer suspension system, hybrid system |
| 5. RR-ACC | 5A | Audio system, rear seat entertainment system |
| 6. RR-CIG | 15A | Cigarette lighter |
| 7. AC100/115V | 15A | Power outlet |
| 8. RL SEAT | 30A | Rear seat adjustment |
| 9. B/ANC | 10A | Shoulder anchor |
| 10. RR S/SHADE | 10A | Rear sunshade |
| 11. PSB | 30A | Pre-collision seat belt |
| 12. PTL | 30A | Power trunk lid |
| 13. FUEL OPN | 15A | Fuel filler door opener, power trunk lid |
| 14. RR MPX-B 1 | 10A | Power trunk lid, rear seat entertainment system |
| 15. RR MPX-B 2 | 5A | Power door lock system, rear seat adjustment, interior lights, trunk light, power trunk lid |
| 16. IGCT 3 | 5A | Hybrid system |
| 17. BATT FAN | 20A | Battery cooling fan |
| 18. B-FAN RLY | 5A | Battery cooling fan |
| 19. RR ECU-B | 5A | Electric parking brake |
| 20. ABS MAIN 4 | 10A | Capacitor |
| 21. STOP LP 1 | 10A | Stop lights, back-up lights |
| 22. STOP LP 2 | 10A | High mounted stop light, stop lights |
| 23. TAIL | 5A | Tail lights, license plate lights |
| 24. E-PKB | 30A | Electric parking brake |
Luggage compartment fuse box B:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. E/G R/B DC/DC | 160A | AIR SUS, HTR, DEFOG, FAN NO.1, H-LP CLN, PTC HTR, E/G RM 1, P-J/B DC/DC |
| 2. LUG-J/B DC/DC | 80A | PTL, RL SEAT, B/ANC, FUEL OPN, RR S/SHADE, PSB, RR-IG1-1, RR-IG1-2, RR-IG1-3, RR-IG1-4, RR-ACC, RR-CIG, AC100/115V, BATT FAN |
| 3. LH-J/B DC/DC | 80A | OBD, D P/SEAT, TI&TE, AM1, D S/HTR, S/ROOF, D RR S/HTR, D-IG1-1, D-IG1-2, D-IG1-3, D-IG1-4, D-ACC, PWR OUTLET, PANEL |
| 4. RR A/C | 30A | Air conditioning system |
| 5. DC/DC | 180A | Hybrid system |
| 6. E/G R/B BATT | 160A | VGRS, OIL PMP, EFI NO.1, EFI, E/G RM B, P-J/B B, E/G RM B2 |
| 7. EPS | 80A | EPS, active stabilizer suspension system |
| 8. LH-J/B BATT | 40A | D DOOR 1, D RR DOOR, HAZ, D DOOR 2, STR LOCK, STOP, SECURITY |
| 9. LUG-J/B BATT | 40A | STOP LP 1, STOP LP 2, TAIL, B-FAN RLY, ABS MAIN 4, RR ECU-B, E-PKB |
Luggage compartment fuse box C:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. MAIN | 200A | All electrical components |
