Land Rover Range Rover Evoque 2019 Fuse Box Info

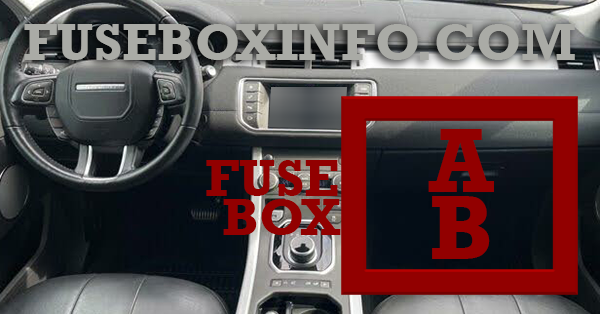

Passenger compartment fuse box location:
The fuse box A is located behind the glove box. The fuse box B is located under the glove box.

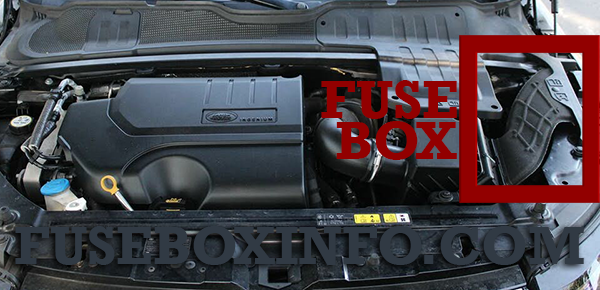

Engine compartment fuse box location:

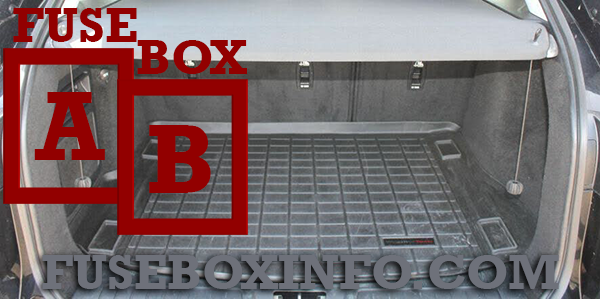

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Smart key receiver, Alarm sensor, Tire Pressure Monitoring System (TPMS) |
| 2 | - | - |
| 3 | 10A | Front fog lamps |
| 4 | - | - |
| 5 | 5A | Anti-lock Braking System (ABS) |
| 6 | 5A | Adaptive dynamics, Electric differential |
| 7 | - | - |
| 8 | 25A | Passenger door module |
| 9 | - | - |
| 10 | 5A | Heated washer jets |
| 11 | 10A | Reverse light trailer |
| 12 | 5A | Reverse lights |
| 13 | - | - |
| 14 | 5A | Brake pedal switch |
| 15 | 30A | Heated rear screen |
| 16 | 5A | Power steering |
| 17 | 5A | Passive entry |
| 18 | 5A | Engine cooling |
| 19 | 5A | Engine management system |
| 20 | 5A | Adaptive Cruise Control (ACC) |
| 21 | 5A | Center console switches, Outboard dashboard switches |
| 22 | 5A | Automatic transmission |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | 10A | Trailer fog lights |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | 5A | Rain sensor, Lamp switch, Electrical power management, Humidity sensor |
| 32 | 5A | Driver door module |
| 33 | - | - |
| 34 | 10A | Fuel flap |
| 35 | - | - |
| 36 | 5A | Battery back-up sounder |
| 37 | 20A | Keyless entry |
| 38 | 15A | Windshield washer |
| 39 | 25A | Left-side rear door module |
| 40 | 5A | Driver door window switch |
| 41 | 5A | Gateway module |
| 42 | 30A | Driver's seat |
| 43 | 15A | Rear screen washer |
| 44 | 25A | Right-side rear door module |
| 45 | 30A | Front passenger seat |
| 46 | - | - |
| 47 | 20A | Sunblind |
| 48 | 15A | Trailer connector power supply |
| 49 | - | - |
| 50 | - | - |
| 51 | 5A | Steering wheel switches |
| 52 | 20A | Cigar lighter |
| 53 | 20A | Cubby box accessory power socket |
| 54 | - | - |
| 55 | 20A | Rear console accessory power socket |
| 56 | 10A | Supplementary Restraint System (SRS) |
| 57 | 10A | Interior lamps |
| 58 | - | - |
| 59 | - | - |
| 60 | 5A | Occupancy sensor, Air bag status indicator lamp |
| 61 | 5A | Engine starting |
| 62 | - | - |
| 63 | 20A | Luggage compartment accessory power socket |
| 64 | - | - |
| 65 | - | - |
| 66 | 5A | Diagnostics |
| 67 | 15A | Trailer |
| 68 | - | - |
| 69 | 15A | Automatic transmission |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Engine management system |
| 2 | 5A | Electrical power management (diesel only), Engine management system (petrol only) |
| 3 | 80A | Power steering |
| 4 | - | - |
| 5 | 80A | Engine cooling |
| 6 | 15A | Engine management system |
| 7 | - | - |
| 8 | 20A | Engine management system |
| 9 | 10A | Engine management system |
| 10 | - | - |
| 11 | 10A | Engine management system |
| 12 | 15A | Engine management system |
| 13 | - | - |
| 14 | 10A | Engine management system (diesel only), Engine cooling (petrol only) |
| 15 | 40A | Engine management system |
| 16 | 100A | Auxiliary heater |
| 17 | 60A | Passenger compartment fuse box |
| 18 | 60A | Passenger compartment fuse box |
| 19 | 60A | Luggage compartment fuse box |
| 20 | 60A | Luggage compartment fuse box |
| 21 | 60A | Electrical power management |
| 22 | 30A | Front windscreen wipers |
| 23 | 40A | Passenger compartment fuse box |
| 24 | 40A | Starter motor (diesel automatic and petrol only) |
| 25 | 40A | Anti-lock braking system (ABS) |
| 26 | 40A | Anti-lock Braking System (ABS) |
| 27 | 40A | Passenger compartment fuse box |
| 28 | 40A | Heater blower motor |
| 29 | - | - |
| 30 | 15A | Headlamp washers |
| 31 | 15A | Horns |
| 32 | 10A | Air Conditioning (A/C) |
| 33 | 5A | Horn, Heated windscreen, Fuel pump |
| 34 | 40A | Left-side heated windscreen |
| 35 | 40A | Right-side heated windscreen |
| 36 | 5A | Engine management system, A/C |
| 37 | 20A | Fuel system |
| 38 | 20A | LED headlights |
| 39 | 20A | LED headlights |
| 40 | 5A | Right-side headlight bend lighting |
| 41 | 5A | Left-side headlight bend lighting |
| 42 | 5A | Headlight levelling |
| 43 | - | - |
| 44 | 10A | Heated steering wheel |
| 45 | 5A | Steering wheel |
Luggage compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| Upper Fuse Box | ||
| 1 | 30A | 4 Wheel Drive (4WD) systems |
| 2 | 15A | Rear wiper |
| 3 | 5A | 4WD systems |
| 4 | 10A | Telematics |
| 5 | 20A | Driver's heated/climate seat |
| 6 | 20A | Front passenger heated/climate seat |
| 7 | - | - |
| 8 | 5A | Rear view mirror, Auto High Beam (AHB) |
| 9 | 20A | Left side rear heated seat |
| 10 | 20A | Right side rear heated seat |
| 11 | - | - |
| 12 | 25A | Powered tailgate |
| Lower Fuse Box | ||
| 1 | - | - |
| 2 | 5A | Adaptive Cruise Control (ACC) |
| 3 | 10A | Instrument panel |
| 4 | 5A | Gateway module |
| 5 | 30A | Adaptive suspension |
| 6 | - | - |
| 7 | 5A | Auxiliary heater |
| 8 | 15A | Driver's/passenger seat switches |
| 9 | 10A | Head-Up Display (HUD) |
| 10 | 10A | Blind Spot Monitor (BSM) |
| 11 | 40A | Audio amplifier |
| 12 | 20A | Audio amplifier |
Luggage compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Touch screen, Front integrated control panel |
| 2 | 10A | Audio amplifier |
| 3 | 10A | Gesture tailgate |
| 4 | 10A | Navigation, Telephone |
| 5 | 15A | Audio head unit |
| 6 | 15A | Audio video input/output panel |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | |
| 15 | 15A | Front and rear integrated control panels - heating and ventilation |
| 16 | 20A | Auxiliary heater |
Luggage compartment fuse box A (Convertible):
| Fuse/Relay N° | Rating | Functions |
| Upper Fuse Box | ||
| 1 | 5A | Dynamic Stability Control (DSC) |
| 2 | 30A | DSC |
| 3 | - | - |
| 4 | 15A | Convertible roof - lock |
| 5 | - | - |
| 6 | 15A | Convertible roof - front latch |
| 7 | 10A | Telematics |
| 8 | - | - |
| 9 | 30A | 4 Wheel Drive (4WD) systems |
| 10 | - | - |
| 11 | 25A | Driver's heated/climate seat |
| 12 | 5A | Wade sensing |
| 13 | 25A | Front passenger heated/climate seat |
| 14 | - | - |
| 15 | 25A | Fuel system |
| 16 | 10A | Blind spot monitor, Auto High Beam Assist (AHBA), Rear view camera |
| 17 | 2A | Road toll reader |
| 18 | 5A | Interior mirror, AHBA, Rear view camera |
| 19 | - | - |
| 20 | 15A | Electric seats |
| 21 | - | - |
| 22 | - | - |
| 23 | 5A | Adaptive cruise control |
| 24 | - | - |
| 25 | - | - |
| 26 | 10A | Gateway module |
| 27 | 10A | Instrument panel |
| 28 | 10A | Head-Up Display (HUD) |
| 29 | - | - |
| 30 | 5A | Convertible roof - side window drop |
| Lower Fuse Box | ||
| 1 | 15A | Touch screen, Front integrated control panel |
| 2 | 10A | Audio amplifier |
| 3 | 10A | Entertainment systems |
| 4 | 10A | Navigation, Audio video input and output panel |
| 5 | 15A | Audio head unit |
| 6 | 15A | Audio video input and output panel |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | -- | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | 15A | Heating and ventilation |
| 16 | 20A | Auxiliary heater |
