Kia Soul EV 2017 Fuse Box Info

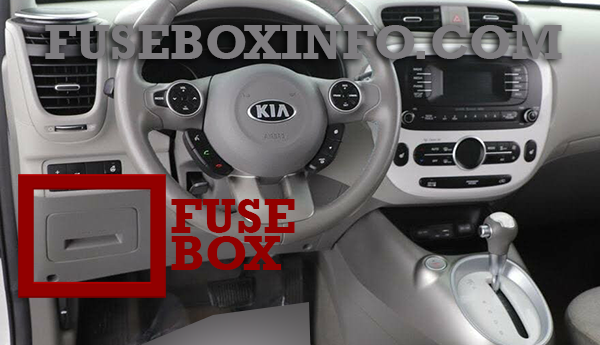

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

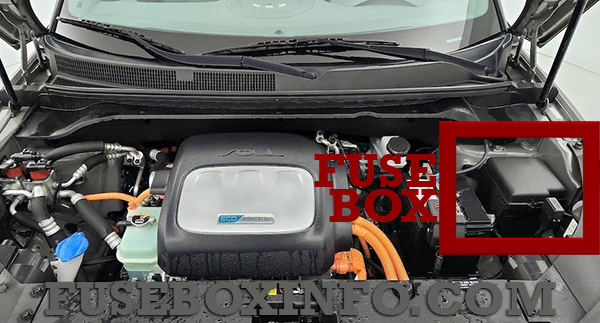

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| POWER OUTLET 2 | 20A | Front Power Outlet |
| ACC | 10A | BCM, Mood Lamp Module, A/V & Navigation Head Unit, Smart Key Control Module, Power Outside Mirror Switch, E/R Junction Block (Power Outlet Relay) |
| POWER OUTLET 1 | 20A | Rear Power Outlet |
| DRL | 10A | BCM |
| MODULE 6 | 7.5A | Front Seat Warmer Module, Driver Air Ventilation Seat Control Module |
| WIPER FRT 1 | 25A | E/R Junction Block (Front Wiper Low Relay) |
| WIPER RR | 15A | Rear Wiper Motor, Multifunction Switch |
| MODULE 5 | 7.5A | BCM, Smart Key Control Module |
| WIPER FRT 2 | 10A | BCM, Multifunction Switch, PCB Block (Front Wiper High Relay) |
| HEATED STEERING | 15A | Clock Spring (Steering Wheel Heated) |
| A/CON | 7.5A | A/C Control Module, Heater Assembly (Cluster Ionizer) |
| HEATED MIRROR | 10A | A/C Control Module, Driver/Passenger Power Outside Mirror, Rear Defogger |
| TAIL GATE OPEN | 15A | Tail Gate Open Relay |
| S/HEATER FRT | 20A | Front Seat Warmer Module, Driver Air Ventilation Seat Control Module |
| DR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay |
| A/BAG IND | 7.5A | Instrument Cluster |
| A/BAG | 15A | SRS Control Module |
| MODULE 4 | 10A | Electro Chromic Mirror, Front Seat Warmer Module, Driver Air Ventilation Seat Control Module |
| STOP LAMP | 15A | Stop Signal Electronic Module |
| MODULE 7 | 10A | Sport Mode Switch, ICM Relay Box |
| S/HEATER RR | 20A | Rear Seat Warmer Module |
| P/WINDOW RH | 25A | Power Window RH Relay |
| P/WINDOW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| MODULE 1 | 10A | BCM |
| IBAU | 10A | Integrated Brake Actuation Unit |
| MODULE 2 | 10A | Tire Pressure Monitoring Module, Crash Pad Switch, Center Fascia Switch, Electronic Parking Brake Module, Stop Lamp Switch, Rear Parking Assist Sensor RH/LH (IN/OUT), Front Parking Assit Sensor LH/RH (OUT/IN) |
| MODULE 3 | 10A | ATM Lever Indicator, Multipurpose Check Connector, PCB Block (IG3 #4 Relay) |
| PDM 3 | 7.5A | Smart Key Control Module |
| IOD 2 | 15A | A/V & Navigation Head Unit |
| IOD 3 | 7.5A | ICM Relay Box (Outside Mirror Folding Relay, Outside Mirror Unfolding Relay) |
| CLUSTER | 10A | Instrument Cluster |
| IG1 | 15A | EPCU |
| IOD 4 | 7.5A | Instrument Cluster, Tire Pressure Monitoring Module, Data Link Connector, Multipurpose Check Connector, A/C Control Module, BCM |
| FOG LAMP REAR | 10A | Rear Fog Lamp Control Block |
| SUNROOF 2 | 20A | SUNROOF_MOTOR (POWER) |
| SUNROOF 1 | 20A | SUNROOF_MOTOR (POWER) |
| MDPS | 7.5A | MDPS Unit |
| START | 7.5A | Transaxle Range Switch |
| IOD 1 | 7.5A | Overhead Console Lamp, Vanity Lamp LH/RH, Room Lamp, Glove Box Lamp, Luggage Lamp |
| PDM 2 | 7.5A | Smart Key Control Module |
| PDM 1 | 20A | Smart Key Control Module |
| BRAKE SWITCH | 10A | Smart Key Control Module, Stop Lamp Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit |
| ALT | 150A | Alternator |
| B+1 | 50A | Smart Junction Block (Fuse - (S/HEATER FRT, TAIL GATE OPEN, DR LOCK, P/WINDOW LH, P/WINDOW RH, MODULE 7)) |
| B+2 | 50A | Smart Junction Block (Fuse - (STOP LAMP) Arisu-LT2) |
| B+3 | 50A | Smart Junction Block (Fuse - (PDM 1, PDM 2, BRAKE SWITCH, Leak Current Autocut Device) IPS1, Arisu-LT1) |
| IG2 | 40A | PCB Block (Button Start (IG2) Relay) |
| POWER OUTLET | 20A | Power Outlet Relay |
| OBC | 10A | OBC Unit, Rear Heated Relay |
| BMS | 10A | BMS Control Module |
| EPCU | 20A | EPCU |
| CHARGER 2 | 10A | Normal Charge Port Lmap |
| C/FAN | 40A | COOLING FAN 1 Relay, COOLING FAN 2 Relay |
| RR HTD | 40A | Rear Heated Relay |
| IBAU 2 | 30A | Integrated Brake Actuation Unit |
| IBAU 1 | 40A | Integrated Brake Actuation Unit |
| IG1 | 40A | Button Start (ACC) Relay, Button Start (IG1) Relay |
| BLOWER | 40A | Blower Relay |
| IG3 1 | 30A | IG3 #1/#2/#3/#4/#5 Relay |
| EPB 1 | 30A | Electronic Parking Brake Module |
| EPB 2 | 30A | Electronic Parking Brake Module |
| IG3 2 | 10A | Blower Relay, A/C Control Module, A/C Compressor, E/R Junction Block (Cooling Fan 1/2 Relay), Heater Assembly (PTC Heater) |
| CHARGER 1 | 10A | OBC Unit, BMS Control Module |
| EWP | 10A | Electronic Water Pump |
| IG3 3 | 15A | EPCU, Transaxle Range Switch, A/V & Navigation Head Unit, Instrument Cluster |
| HORN | 15A | Horn Relay |
| B/UP LAMP | 10A | Transaxle Range Switch, EPCU |
| BATTERY C/FAN | 25A | Battery C/FAN Relay |
