Kia Optima Hybrid 2014 Fuse Box Info
Passenger fuse box location:

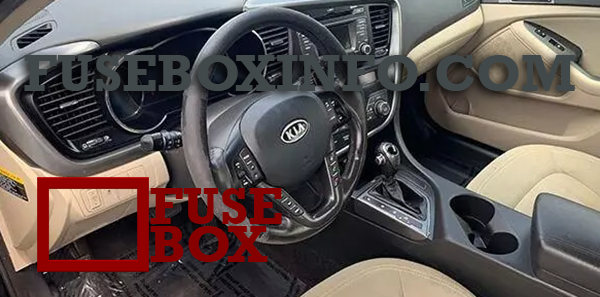

The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

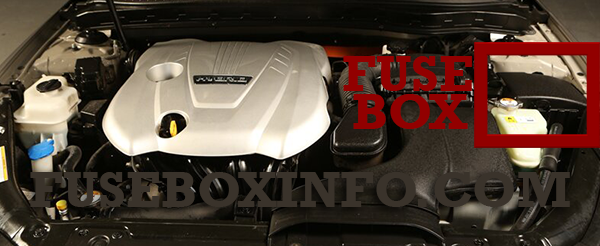

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MULTIMEDIA | 15A | AUDIO_UVO, AUDIO (PA30A,B), NAVI_3.0, NAVI_4.0, TMU |
| PDM 1 | 25A | Smart Key Control Module (With Smart Key) |
| SPARE | 10A | - |
| PDM2 | 10A | SMK UNIT, BUTTON START SW |
| P/SEAT(PASS) | 20A | Passenger Seat Manual Switch |
| AMP | 30A | AMP |
| P/SEAT(DRV) | 30A | Driver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch (2WAY) |
| MEMORY 2 | 7.5A | PIC_RF_RECEIVER |
| TRUNK | 10A | Trunk Lid Relay, Trunk Room Lamp |
| MODULE 7 | 10A | SPORT_MODE_SW, RR POWER WINDOW SW |
| DR LOCK | 20A | Door Lock/Unlock Relay, Turn Signal Lamp Sound Relay |
| S/HEATER(RR) | 20A | Rear Seat Warmer Relay LH/RH |
| P/WDW(RH) | 25A | Passenger Safety Power Window Module (LHD), Rear Safety Power Window Module RH, Power Window RH Relay |
| P/WDW(LH) | 25A | Driver Safety Power Window Module (LHD), Rear Safety Power, Window Module LH, Power Window LH Relay |
| MODULE 2 | 10A | BCM, Panorama Sunroof, Rain Sensor |
| BRAKE SWITCH | 10A | Smart Key Control Module, Start Stop Button Switch, Stop Lamp Switch |
| MEMORY 1 | 10A | SEAT EXTN (IMS), DR_TRIM_EXTN (FOLD’G), CLUSTER, A/CON, ECM, AUTO FOLDING RLY, TPMS, POWER OUTLET, A_L_PHOTO_SNSR, MUT |
| SUNROOF | 20A | Panorama Sunroof |
| S/HEATER(FRT) SEAT VERNT(FRT) | 20A | SEAT_EXTN (HEAT/VENT) |
| SPARE | 10A | - |
| A/BAG IND | 10A | Instrument Cluster |
| MODULE 3 | 10A | Sport Mode Switch |
| MODULE 4 | 10A | Driver/Passenger CCS Control Module (With CCS), Driver/Passenger Seat Warmer Module (W/O CCS), Front Seat Warmer & CCS Switch, Oil Pump Inverter, Tire Pressure Monitoring Module |
| A/BAG | 15A | A/BAG UNIT IG1 , WCS_PASS IG1 |
| INTERIOR LAMP | 10A | Driver/Passenger Smart Key Outside Handle (With Smart Key), Driver/Passenger Door Lamp, A/C Control Module, RF Receiver (With Smart Key), Driver IMS Module, BCM, Data Link Connector, Driver/Passenger Door Scuff Lamp, Power Outside Mirror Switch, Lamp Auto Cut Relay, Instrument Cluster |
| CLUSTER | 10A | CLUSTER (IGN1) |
| MDPS | 7.5A | Crash Pad Switch, EPS Control Module (With MDPS), ATM Lever Indicator, EPB Switch, EPB Control Module |
| PDM 3 | 7.5A | Smart Key Control Module (With Smart Key) |
| EPB | 10A | EPB |
| HEV ECU | 20A | HCU UNIT IG1 |
| IG 1 | 25A | E/R BOX IG1 |
| BMS | 10A | BMS UNIT B+ |
| POWER OUTLET | 20A | Front Power Outlet |
| MODULE 1 | 10A | Auto Head Lamp Leveling Device Module (Auto HLLD), Head Lamp Leveling Device Switch (Manual HLLD), Head Lamp Leveling Device Actuator LH/RH, BCM, Front Smart Parking Assist Sensor Module, Instrument Cluster, Electro Chromic Mirror, A/C Control Module, Driver IMS Module, Rear Parking Assist Buzzer, Lane Keeping Assist Module |
| START | 7.5A | B/ALARM RLY |
| HTD STRG | 15A | Steering Wheel Heater |
| MODULE 5 | 7.5A | Smart Key Control Module (With Smart Key), Rear Seat, Warmer Relay LH/RH, E/R Fuse & Relay Box (RLY.2), Diesel Box (Fuel Filter Relay) |
| A/CON | 7.5A | A/C Control Module, E/R Fuse & Relay Box (RLY.14) |
| SPARE | 15A | - |
| WIPER | 25A | E/R BOX WIPER RLY |
| C/LIGHTER | 20A | Cigarette Lighter |
| MODULE 6 | 7.5A | PANORAMA SUNROOF (IG2), IONIZER, DSL_BOX, RR_SEAT_WARMER |
| HTD MIRR | 10A | Driver/Passenger Power Outside Mirror |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| RR HTD | 40A | E/R BOX RR HTD RLY COIL |
| HORN | 15A | HORN (LH, RH) |
| F/PUMP | 20A | FUEL PUMP MTR |
| ECU 3 | 15A | PCU (GDI) BATT. DIRECT |
| SENSOR 1 | 15A | DN O2 SENSOR (GDI), UP O2 SENSOR (GDI) |
| INJECTOR | 10A | E/R BOX F/PUMP RLY COIL |
| SENSOR 3 | 10A | CMP1, 2 (GDI, TGDI), SMATRA IMMOBILIZER |
| SENSOR 2 | 10A | CKP (GDI), VIS (GDI), OCV1, 2 (GDI), PCSV (GDI), CCV (GDI) |
| IGN COIL | 20A | ENGINE IG COIL |
| ECU 1 | 30A | ECU RLY |
| SPARE | 10A | - |
| SPARE | 15A | - |
| SPARE | 20A | - |
| WIPER | 10A | BCM, RAIN SNSR, WIPER MTR |
| AMS | 10A | BATTERY SENSOR |
| OPCU 1 | 20A | OPCU UNIT B+ |
| OPCU 2 | 20A | OPCU UNIT IG1 |
| TCU 1 | 20A | TCU |
| STOP LAMP | 15A | RLY.10 (HAC Relay), STOP LAMP RELAY |
| DEICER | 20A | RLY.7 (Deicer Relay) |
| IG1 | 40A | IGN SW |
| B+ 1 | 50A | B+ |
| B+ 2 | 60A | B+ |
| BLOWER | 40A | RLY.14 (Blower Relay) |
| IG 2 | 40A | IGN SW, IG2 RLY |
| AHB 1 | 40A | ESC UNIT MOTOR B+, DIAGNOSIS ABS A/B VALVE B+ |
| AHB 2 | 40A | ESC UNIT SOLENOID B+ |
| RR HTD | 40A | RLY.1 (RR HTD Relay) |
| B+ 3 | 60A | B+ |
| MDPS | 80A | EPS Control Module |
| HEV HCU | 20A | TCU UNIT B+ |
| BATTERY C/FAN | 20A | BMS |
| INVERTER | 50A | O_P_INVERTER |
| EPB 2 | 30A | EPB UNIT BATT2 |
| EPB 1 | 30A | EPB UNIT BATT1 |
| ECU 2 | 40A | EMS BOX (B+) |
| ECU 4 | 10A | ENGINE ECU |
| TCU 2 | 15A | SPEED SNSR, POSITION SW, O_P_INVERTER |
| AHB 3 | 10A | ESC UNIT IGN1 |
| B/UP LAMP | 10A | ELECTRO CHROMIC MIRROR, BCM, REAR COMBINATION LAMP (IN) LH/RH |
| EWP | 10A | WATER PUMP MTR B+ |
Sub relay fuse panel:
| Fuse/Relay Name | Rating | Functions |
| EWP | 10A | ELEC_WATER_PUMP UNIT IG1 |
| BMS | 10A | BMS UNIT IG1 |
| INVERTER | 10A | LDC UNIT IG1 , ENGINE INVERTER IG1 |
| C/FAN | 60A | C/FAN RLY SWITCH |
| OPCU | 80A | OPCU UNIT B+ |
