Hyundai Elantra 2025 Fuse Box Info

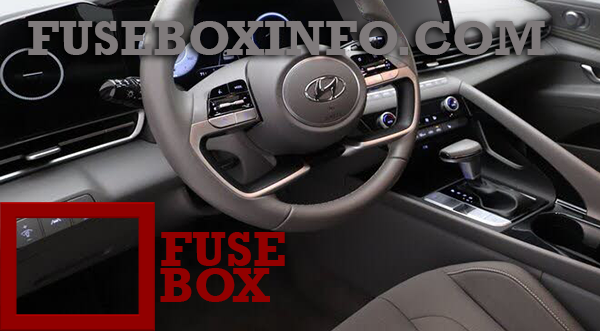

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

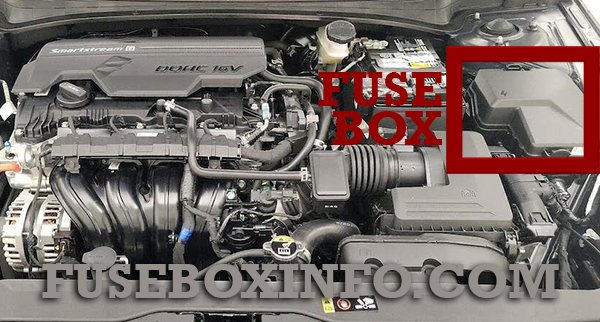

Engine compartment fuse box location:
Fuse Box Diagram | Layout

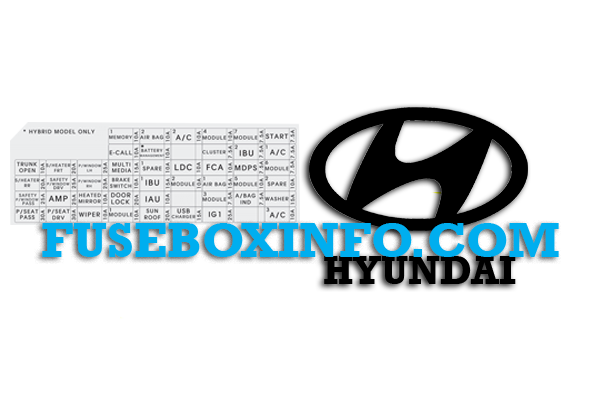

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MEMORY1 | 10A | Instrument Cluster, A/C Controller, A/C Control Module, DRV/PASS Folding Outside Mirror, Crash Pad Switch, Surround View Monitor |
| AIR BAG2 | 10A | SRS Control Module |
| MODULE4 | 10A | Front View Camera, Crash Pad Switch, IBU, A/T Shift Lever Indicator, Front Console Switch |
| START | 7.5A | Burglar Alarm Relay, Transaxle Range Switch, PCM/ECMIBU, E/R Junction Block (Start Relay) |
| CLUSTER | 7.5A | Instrument Cluster |
| IBU2 | 7.5A | IBU |
| A/C1 | 7.5A | E/R Junction Block (PTC Heater Relay, Blower Relay), A/C Control Module, A/C Controller |
| TRUNK | 10A | Trunk Lid latch |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module |
| P/WINDOW LH | 25A | Power Window Main Switch |
| MULTIMEDIA | 15A | Audio, A/V & Navigation Head Unit, DC-DC Converter (Smartstream G 2.0 Atkinson ISG only) |
| LDC | 10A | ADAS_PRK_SVM, AVN, Cluster, DATC/MTC, BCW(Rear Corner Radar), Console Switch |
| FCA | 10A | Front Radar |
| MDPS | 7.5A | MDPS Unit |
| MODULE6 | 7.5A | IBU, IAU |
| S/HEATER RR | 20A | Rear Seat Warmer |
| SAFETY P/WINDOW DRV | 25A | Driver Safety Power Window Module |
| P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| BRAKE SWITCH | 10A | Stop Lamp Switch, IBU |
| IBU1 | 15A | IBU, Sport Mode Switch |
| MODULE2 | 10A | E/R Junction Block (Power Outlet Relay), AMP, IBU, IAU, Audio, Power Side View Mirror Switch, DC-DC Converter (Smartstream G 2.0 Atkinson ISG only), A/V & Navigation Head Unit |
| AIR BAG1 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| MODULE5 | 10A | A/T Shift Lever Indicator, Front Wireless Charger, A/C Controller,Electro Chromic Mirror, A/C Control Module, Audio, A/V & Navigation Head Unit, AMP, DC-DC Converter (Smartstream G 2.0 Atkinson ISG only), Data Link Connector, Front Seat Warmer Control Module, Rear Seat Warmer Control Module |
| SAFETY P/WINDOW PASS |
25A | Passenger Safety Power Window Module |
| AMP | 25A | AMP, DC-DC Converter (Smartstream G 2.0 Atkinson ISG only) |
| HEATED MIRROR | 10A | DRV/PAS Side View Mirror Heated, A/C Control Module, A/C Controller, ECU (N Line only) |
| DOOR LOCK | 20A | Door Lock/Unlock Actuator |
| IAU | 10A | BLE Unit, IAU, Driver/Passenger Door NFC Module |
| MODULE3 | 7.5A | Sport Mode Switch, Stop Lamp Switch, IAU |
| A/BAG IND | 7.5A | Instrument Cluster, Overhead Console Lamp |
| WASHER | 15A | Multifunction Switch |
| P/SEAT PASS | 30A | Power Seat |
| P/SEAT DRV | 30A | Power Seat |
| WIPER | 10A | PCM/ECM, IBU |
| MODULE1 | 10A | Driver/Passenger Smart Key Outside Handle, Data Link Connector, Hazard Switch, Key Solenoid |
| SUNROOF | 20A | Sunroof Motor |
| USB CHARGER | 15A | Front USB Charger, Rear Console USB Charger |
| IG1 | 25A | PCB Block (Fuse - ABS3, ECU5, EOP2, TCU2) |

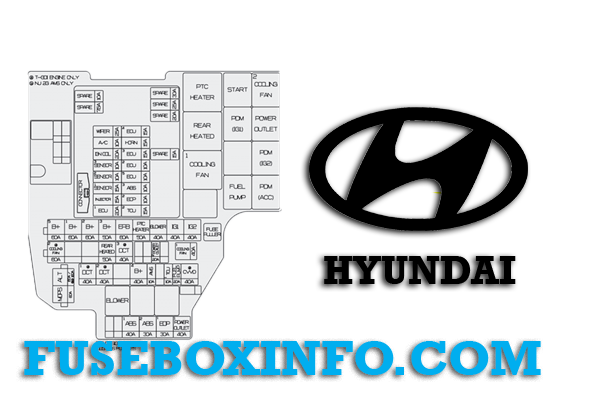

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 150/180A |
[Smartstream G 2.0 Atkinson with AMS2] Alternator, (Fuse - ABS1, ABS2, EOP1, POWER OUTLET1) [Smartstream G 2.0 Atkinson & Smartstream G1.6 T-GDi without AMS2] Alternator, (Fuse - ABS1, ABS2, POWER OUTLET1) |
| MDPS1 | 80A | MDPS Unit |
| COOLING FAN2 |
60A | [G4FP] Cooling Fan Controller |
| DCT3 | 40A | [G4FP] SGA |
| REAR HEATED |
50A | Rear Glass Heated |
| B+5 | 60A | PCB Block (Engine Control Relay, Fuse - ECU3, ECU4, HORN, WIPER, A/C) |
| B+1 | 60A | ICU Junction Block (IPS2/IPS3/IPS5/IPS6/IPS7/IPS14) |
| B+2 | 60A | ICU Junction Block (IPS1/IPS4/IPS8/IPS9/IPS10) |
| B+3 | 50A | ICU Junction Block (Fuse - TRUNK, AMP, SAFETY P/WINDOW DRV, SAFETY P/WINDOW PASS, P/SEAT DRV, P/SEAT PASS, S/HEATER FRT, Long Term Load Latch Relay), S/HEATER RR |
| EPB | 60A | ESC Control Module |
| PTC HEATER | 50A | PTC HEATER |
| BLOWER | 40A | BLOWER Motor, Multipurpose Check Connector |
| IG1 | 40A | E/R Junction Block (PDM (IG1/ACC) Relay), Ignition Switch |
| IG2 | 40A | E/R Junction Block (PDM (IG2) Relay, Start Relay), Ignition Switch |
| POWER OUTLET2 | 20A | Front Power Outlet |
| COOLING FAN1 | 40A | Cooling Fan (Smartstream G 2.0 Atkinson only) |
| DCT1 | 40A | [G4FP] TCM |
| DCT2 | 40A | [G4FP] TCM |
| B+4 | 40A | ICU Junction Block (Fuse - AIR BAG2, IBU1, BRAKE SWITCH, DOOR LOCK, IAU, MODULE1, SUNROOF,Power Window Relay) |
| AMS | 10A | Battery Sensor |
| TCU1 | 10A | [DCT] TCM |
| FUEL PUMP | 20A | Fuel Pump Control Module (T-GDI), Fuel Pump Motor (NU MPI AKS) |
| CVVD | 40A | [G4FP] CVVD Actuator |
| ABS1 | 40A | ABS Control Module, ESC Control Module, Multipurpose Check Connector |
| ABS2 | 30A | ABS Control Module, ESC Control Module, Multipurpose Check Connector |
| EOP1 | 30A | Electronic Oil Pump (Smartstream G 2.0 Atkinson ISG only) |
| POWER OUTLET1 | 40A | P/OUTLET FRT |
| WIPER | 25A | Wiper Motor |
| ECU4 | 15A | PCM/ECM |
| A/C | 10A | [G4FM] A/C Compressor (Smartstream G 2.0 Atkinson only) |
| HORN | 15A | Horn |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| ECU3 | 15A | PCM/ECM |
| SENSOR3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| ECU2 | 15A | PCM/ECM (Smartstream G1.6 T-GDi only) |
| SENSOR2 | 10A |
[G4NS] Variable Intake Solenoid Valve, Oil Pump Solenoid Valve, Oil Control Valve #1/#2, Canister Close Valve, Purge Control Solenoid Valve,PCB Block (A/C Relay), E/R Junction Block (Cooling Fan1/2 Relay), Oil Level Sensor
|
| ECU5 | 10A | CVVD Actuator (Smartstream G1.6 T-GDi only), ECM/ PCM |
| SENSOR1 | 15A | Oxygen Sensor (UP/DOWN) |
| ABS3 | 10A | ABS Control Module, ESC Control Module, Multipurpose Check Connector |
| INJECTOR | 15A | [G4FM/G4FG/G4NA] Injector #1~#4 (Smartstream G 2.0 Atkinson only) |
| ECU1 | 20A | PCM/ECM |
| TCU2 | 15A | Transaxle Range Switch, [G4FP] TCM (Smartstream G1.6 T-GDi & DCT only) |
