Hyundai Elantra 2004 Fuse Box Info

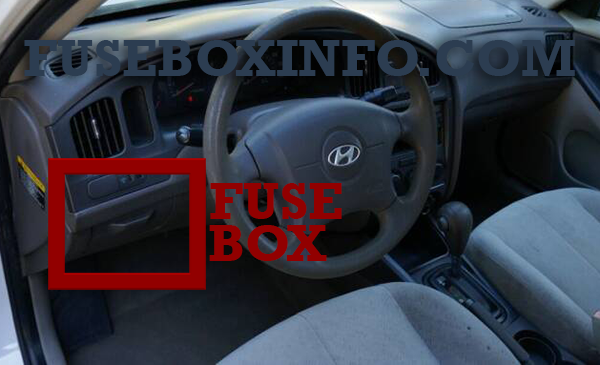

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

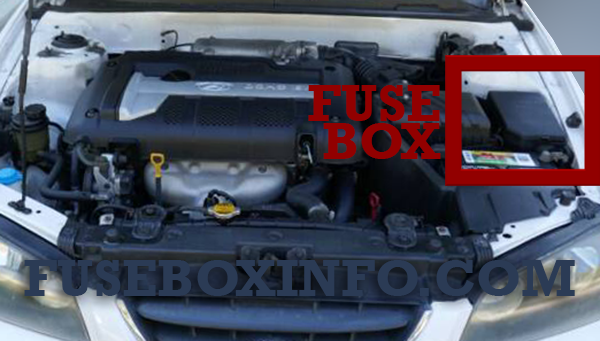

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| T/SIG | 10A | Turn signal lamps, Back-up lamp |
| CLUSTER | 10A | Pre-excitation resistor, Instrument cluster (IND) |
| A/BAG | 15A | SRS control |
| HAZARD | 10A | Hazard relay, Hazard lamps |
| A/C SW | 10A | A/C Control |
| TAIL-RH | 10A | Short connector, Illumination lamps, Tail lamp (RH), Head lamp washer |
| TAIL-LH | 10A | Tail lamp (LH), Exterior lamps |
| START | 10A | B/Alarm relay |
| AUDIO | 10A | Digital clock, Power outside mirror & mirror folding, Audio |
| E C U | 10A | Cruise control, PCM, Vehicle speed sensor, Ignition coil |
| A B S | 10A | ABS control |
| A/BAG IND | 10A | Instrument cluster (Air bag IND) |
| RR HTR | 30A | Defogger relay |
| A M P | 20A | Power antenna |
| S/ROOF | 15A | Power door lock control, Sunroof |
| STOP | 15A | Stop lamps, Power window, Power outside mirror folding |
| HTD MIR | 10A | Rear window & outside mirror defogger, A/C control |
| C/LIGHT | 15A | Cigarette lighter, Power outlet |
| RR FOG | 10A | Rear fog lamps |
| I G N | 10A | Head lamp, Head lamp washer, Fuel filter heating |
| R/WIPER | 15A | Rear wiper & washer |
| F/WIPER | 20A | Front wiper & washer |
| S/HTR | 20A | Seat warmer |
| A/CON | 10A | Blower & A/C control, ETACM, Sunroof controller, Electronic chrome mirror |
| ROOM LP | 15A | Door lamps, Instrument cluster, Data link connector, Multipurpose check connector, Room lamps, ETACM, Audio, Power connector |
| P/WINDOW | 30A | Power window |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| BATT | 120A | Generator |
| BATT | 50A | Fusible link (P/WDW), Tail lamp relay, Power connector |
| COND | 20A | Condenser fan relay.1 |
| RAD | 20A | Radiator fan relay |
| ECU | 20A | Generator, Engine control relay, Fuel pump relay, PCM |
| IGN | 40A | Ignition switch, Start relay |
| ABS.1 | 30A | ABS control (Motor) |
| ABS.2 | 30A | ABS control (Solenoid) |
| BLOWER | 30A | Blower relay |
| INJ. | 15A | Injectors |
| SNSR | 10A | PCM, Heated oxygen sensor, SMATRA, Heater relay, Glow plug relay |
| DRL | 15A | DRL control |
| H/LP WASHER | 20A | Head lamp washer |
| F/FOG | 15A | Front fog lamp relay |
| ECU | 10A | Siren, PCM |
| HORN & A/C | 15A | A/C relay, Horn relay |
| H/LP (HI) | 15A | Head lamp (Hight) |
| H/LP (LO) | 15A | Head lamp (Low) |
