Hyundai Staria 2023 Fuse Box Info

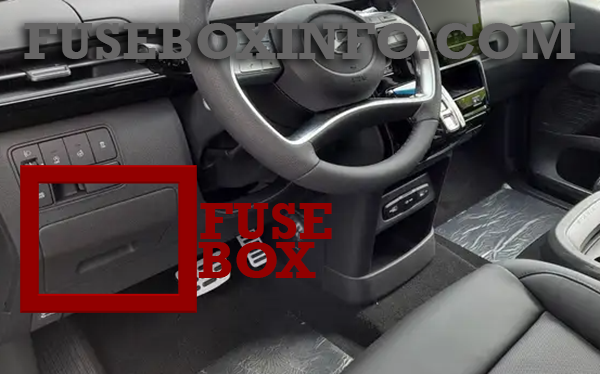

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| START2 | 10A | Ignition Switch |
| SUN ROOF1 | 20A | Front Sunroof Motor |
| P/WINDOW RH |
25A | Power Window Main Switch, Passenger Power Window Switch |
| SUNROOF2 | 20A | Rear Sunroof Motor |
| P/WINDOW LH |
25A | Power Window Main Switch, Passenger Power Window Switch |
| SAFETY WINDOW LH |
25A | Driver/passenger Safety Power Window Module |
| P/SEAT REAR LH |
20A | Rear Seat LH Connector |
| P/SEAT FRT RH |
30A | Passenger Seat Connector |
| MULTI MEDIA1 |
25A | [With ISG] Low DC-DC Converter [W/O ISG] Audio, A/V & Navigation Head Unit |
| DOOR LOCK | 20A | Relay Box (Center Door Lock/Unlock Relay, Rear LH Door Lock/Unlock Relay) |
| S/HEATER REAR LH |
20A | Rear Seat LH Connector |
| POWER TAILGATE |
30A | Power Tailgate Module |
| MEMORY | 10A | Rear A/C Control Module, Low DC-DC Converter, Instrument Cluster, Front A/C Control Panel, Front A/C Control Module, Folding/Unfolding Mirror Relay |
| MODULE11 | 10A | Power Tailgate & Power Sliding Door Switch, Key Solenoid, Data Link Connector, Hazard Switch, ATM Shift Lever, Rear Seat LH/RH Connector, Power Tailgate Module |
| S/HEATER FRT LH/RH |
20A | Driver Seat Connector |
| AMP | 30A | [With ISG] Low DC-DC Converter [W/O ISG] AMP |
| E-CALL | 10A | Emergency Call (E-call) Module |
| MODULE7 | 10A | Hazard Switch, BSSW Unit |
| AIRBAG2 | 10A | SRS Control Module |
| P/SEAT REAR RH |
20A | Rear Seat RH Connector |
| P/SEAT FRT LH |
30A | Driver Seat Connector |
| MODULE8 | 7.5A | Diesel Filter Heater |
| MODULE9 | 7.5A | IBU |
| S/HEATER REAR RH |
20A | Rear Seat RH Connector |
| SAFETY WINDOW RH |
25A | Driver/Passenger Safety Power Window Module |
| E-SHIFTER1 | 7.5A | Electronic ATM Shift Lever, SCU |
| WASHER | 15A | Multifunction Switch |
| IBU2 | 10A | IBU |
| TAILGATE | 10A | Tailgate Release Relay |
| MODULE5 | 7.5A | Dosing Control Module, AWD ECU, Clutch & Ignition Lock Switch, Center Facia Switch, Crash Pad Switch, IBU, Front View Camera, Rear Corner Radar LH/RH |
| MODULE3 | 10A | Emergency Call (E-CALL) Module, IBU, Audio, Keyboard, AMP A/V & Navigation Head Unit |
| BRAKE SWITCH |
10A | Stop Lamp Switch, IBU |
| START1 | 10A | [With Smart Key] IBU, ECM, Transaxle Range Switch [W/O Smart Key] Ignition Switch, B/Alarm Relay |
| MODULE2 | 15A | Front USB Charger, Passenger Seat Connector, USB Charger LH/RH, Luggage USB Charger LH/RH, Luggage USB Charger LH/RH (3RD) |
| MODULE1 | 10A | Driver Power Outside Mirror Switch, Low DC-DC Converter, AMP |
| AIRBAG1 | 15A | SRS Control Module |
| MODULE6 | 10A | Keyboard, A/V & Navigation Head Unit, Data Link Connector, Front A/C Control Module, Front A/C Control Panel, Audio, Emergency Call (E-call) Module, Electro Chromic Mirror, Crash Pad Switch, ATM Shift Lever Indicator, Wireless Charger, Low DC-DC Converter |
| MODULE10 | 7.5A | Rear Seat LH/RH Connector, AC Inverter Outlet, AC Inverter Module, E/R Junction Block (RLY.4 / RLY.8) |
| A/C | 7.5A | Front A/C Control Panel, Front/Rear A/C Control Module, Sub Junction Block (RLY.6), E/R Junction Block (RLY.3 / RLY.13) |
| AIRBAG IND |
7.5A | Instrument Cluster |
| MULTI MEDIA2 |
10A | Front A/C Control Panel, Front/Rear A/C Control Module, Wireless Charger, Instrument Cluster, Rear Corner Radar LH/RH |
| IBU1 | 7.5A | IBU |
| MDPS1 | 7.5A | EPS Unit |
| CLUSTER | 7.5A | Instrument Cluster |
| MODULE4 | 7.5A | Stop Lamp Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS1 | 100A | MDPS Unit |
| COOLING FAN |
80A | Cooling Fan Motor |
| B+1 | 60A | ICU Junction Block (IPS1/IPS2/IPS3/IPS4) |
| B+3 | 60A | ICU Junction Block (Power Window Relay, Fuse - F1/F2/F5/F8/F9/F13/F14/F18/F19/F24/F29) |
| FRONT BLOWER |
50A | RLY. 3 (Front Blower Relay) |
| DCU1 | 50A | [D4HE] RLY. 1 (DCU Relay) |
| IG1 | 40A | PCB Block (ACC Relay, IG1 Relay) |
| IG2 | 40A | PCB Block (IG2 Relay) |
| TRAILER1 | 30A | Trailer Connector |
| E-SHIFTER1 | 30A | With SBW] SCU |
| B+4 | 60A | ICU Junction Block (Long Term Load Latch Relay, Fuse - F7/F11/F17/F22/F23/F28/F32/F33/F37) |
| W/S HEATED GLASS LH |
60A | RLY. 8 (Windshield Heated Glass LH Relay) |
| ABS2 | 40A | ESP Control Module |
| REAR HEATED1 |
50A | RLY. 7 (Rear Heated1 Relay) |
| TRAILER2 | 15A | Trailer Connector |
| AMS | 10A | Battery Sensor |
| E-SHIFTER2 | 10A | With SBW] SCU, Electronic ATM Shift Lever [D4HE & M/T] Clutch & Ignition Lock Switch |
| TRAILER3 | 15A | Trailer Connector |
| B+2 | 50A | ICU Junction Block (IPS5/IPS6/IPS7/IPS8/IPS9) |
| B+5 | 60A | Engine Control Relay, ICU Junction Block (F1/F3/F4/F8/F15/F16) |
| ABS1 | 60A | [With EPB] ESP Control Module |
| REAR BLOWER |
40A | RLY. 13 (Rear Blower Relay) |
| W/S HEATED GLASS RH |
60A | RLY. 4 (Windshield Heated Glass RH Relay) |
| ABS3 | 40A | ESP Control Module |
| POWER OUTLET1 |
40A | PCB Block (Power Outlet Relay) |
| PSD1 | 40A | Power Sliding Door Module |
| PSD2 | 40A | Power Sliding Door Module |
| RR HTD | 15A | RLY. 9 (Rear Defogger Relay) |
| FUEL PUMP1 | 20A | RLY. 5 (Fuel Pump Relay) |
| INVERTER | 40A | AC Inverter Module |
| HEATED MIRROR |
10A | Driver/Passenger Power Outside Mirror |
| A/C1 | 10A | [Auto A/C] Front A/C Control Module |
| A/C2 | 10A | Rear A/C Control Module |
| REAR HEATED2 |
30A | Rear Defogger LH |
| REAR HEATED3 |
30A | Rear Defogger RH |
| DCU2 | 20A | [D4HE] Dosing Control Module |
| DCU3 | 20A | [D4HE] Dosing Control Module |
| DCU4 | 20A | [D4HE] Dosing Control Module |
| WIPER FRT1 | 30A | Wiper Power Relay |
| WIPER FRT2 | 10A | IBU, ECM |
| TCU1 | 20A | TCM |
| ECU2 | 15A | ECM |
| ECU1 | 20A | [D4HE] Fuel Metering Valve, [G6DU] ECM |
| SENSOR4 | 15A | [D4HE] NOX Sensor (Front/MID/Rear), PM Sensor |
| TCU2 | 15A | [D4HE] TCM |
| A/C3 | 10A | E/R Junction Block (RLY. 12) |
| SENSOR6 | 15A | [D4HE] Electronic VGT Actuator, PTC Breather, Oil Sensor, EGR Cooling Bypass Solenoid Valve, Crankshaft Position Sensor E/R Junction Block (RLY. 4 (PTC Heater1 Relay)) [G6DU] Injector #1/#2/#3/#4/#5/#6 |
| SENSOR1 | 15A | [D4HE] Fuel Metering Valve, [G6DU] ECM |
| SENSOR5 | 10A | [D4HE] Glow Control Unit |
| POWER OUTLET2 |
20A | Front Power Outlet |
| HORN | 20A | Horn Relay |
| B/ALARM | 20A | Burglar Alarm Horn Relay |
| SENSOR2 | 10A | E/R Junction Block (RLY. 12 (A/C Relay)) [D4HE] Lambda Sensor #1/#2, Oil Sensor, Stop Lamp Switch, Cooling Fan Motor [G6DU] Oil Control Valve #1/#2/#3/4 (Intake/exhaust), Oxygen Sensor #1/#2/#3/#4, Variable Intake Solenoid Valve, Variable Oil Pump Solenoid, Purge Control Solenoid Valve |
| FUEL PUMP2 | 10A | E/R Junction Block (RLY. 5) [D4HE] E/R Junction Block (RLY.11) |
| ECU3 | 10A | ECM |
| ABS4 | 10A | ESP Control Module |
| SENSOR3 | 20A | [D4HE] Rail Pressure Control Valve [G6DU] Ignition Coil #1/#3/#5 |
| CRUISE | 10A | Front Radar |
| GLOW | 80A | Glow Control Unit |
| PTC HEATER1 | 50A | RLY. 4 (PTC Heater1 Relay) |
| PTC HEATER2 |
50A | RLY. 6 (PTC Heater2 Relay) |
| FUEL HEATER |
30A | E/R Junction Block (RLY. 11) |
| 4WD | 20A | AWD ECU |
