Hyundai Exter 2023 Fuse Box Info

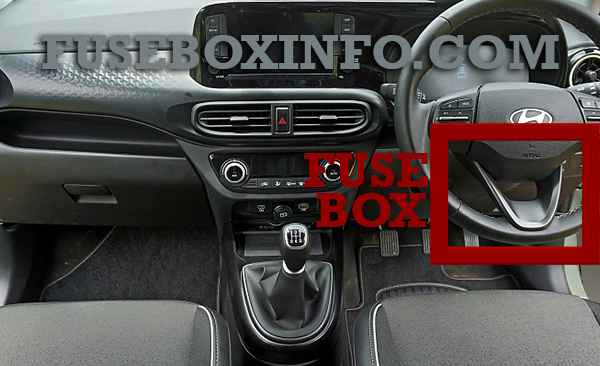

Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| REAR HEATED | 10A | RR Heated Relay |
| POWER WINDOW RH |
25A | FRT Power Window RH |
| TCU | 10A | AT : Speed Sensor Out, Inhibit SW. AMT: AMT Lever |
| MODULE8 | 10A | OBD |
| MEMORY | 10A | A/Con (FATC), Cluster |
| SUNROOF | 15A | Sunroof Motor |
| POWER WINDOW LH |
25A | FRT Power Window LH |
| MODULE2 | 10A | ESC Switch, BCM(IBU) *for CNG:CNG_SW:IGN1 |
| MULTIMEDIA | 20A | AUDIO |
| AIRBAG | 10A | ACU |
| A/CON1 | 7.5A | FATC, Blower Motor |
| DOOR LOCK | 20A | Door Lock |
| MODULE5 | 10A | Crash_VDMS_Extension |
| ABS3 | 10A | ABS/ESC Unit |
| BRAKE SWITCH |
7.5A | Stop Switch |
| START1 | 7.5A | Inhibitor Switch, Start Relay |
| CLUSTER | 10A | Cluster |
| MODULE4 | 7.5A | BCM (IBU) |
| IBU2 | 10A | BCM (IBU) |
| ACC | 10A | Crash_VDMS_Extension, USB Charger, Audio_B, IBU |
| MODULE7 | 10A | TEMP. OBD |
| FRONT WASHER |
15A | Multi Functional Switch |
| MODULE6 | 7.5A | OBD |
| POWER OUTLET2 |
20A | Power Outlet |
| IBU1 | 10A | BODY CONTROL MODULE (IBU) |
| AIRBAG INDICATOR |
10A | Cluster |
| A/CON2 | 7.5A | MTC, FATC, Dual Switch |
| REAR WIPER | 15A | RR Wiper Motor, Washer Motor |
| FRONT WIPER1 | 20A | MFSW, Wiper Motor |
| Power Outlet1 | 15A | Power Outlet |
| ECU8 | 10A | ECU |
| MDPS2 | 10A | MDPS |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MAIN RELAY | 30A | ECU (MT, AMT, CNG, BS6) |
| BLOWER | 35A | ICU |
| START | 20A | ECU, Start Solenoid |
| AIR CONDITIONER |
20A | A/CON, ECU (MT, AMT) |
| FRONT WIPER(HIGH) |
35A | Front Wiper Motor, IBU |
| REAR WIPER | 20A | IBU |
| FUEL PUMP | 20A | ECU (MT, AMT, CNG, BS6) |
| HORN | 20A | HORN |
| BURGLAR ALARM HORN |
20A | IBU |
| FRONT WIPER(LOW) |
35A | Front Wiper Motor, IBU |
| COOLING FAN | 35A | Radiator Fan Motor, ECU (AMT, MT) |
| ECU1 | 30A | ECU |
| FUEL PUMP | 15A | Fuel Pump Relay |
| AMT3 | 15A | TCU/AMT |
| IGNITION2 | 40A | Starting, Start Relay |
| AMT1 | 40A | AMT |
| BATTERY4 | 50A | ICU |
| ECU7 | 10A | Main Relay *for CNG:ECU7 |
| ECU2 | 15A | Main Relay *for CNG:SHUTOFF VALVE111 |
| ECU5 | 15A | Main Relay *for CNG:ECU4 |
| ECU4 | 15A | Main Relay *for CNG:INJECTOR_3&4 |
| FRONT WIPER2 | 10A | Engine Room Junction Box |
| AMT2 | 40A | AMT |
| COOLING FAN | 30A | Radiator Fan Motor, ECU (AMT, MT) |
| IGNITION1 | 30A | Starting |
| BATTERY3 | 30A | ICU |
| BATTERY2 | 40A | ICU |
| BATTERY1 | 40A | ICU |
| ECU3 | 15A | ECU (MT, AMT, BS6) |
| HORN | 15A | Horn Relay |
| AIR CONDITIONER3 |
10A | A/Con Relay |
| BLOWER | 40A | Blower Relay |
| REAR HEATED | 40A | ICU |
| ABS/ESC2 | 40A | ABS/ESC Unit |
| POWER OUTLET | 40A | ICU |
| ABS/ESC1 | 40A | ABS/ESC Unit |
| ALTERNATOR | 125A/ 150A |
K1.2 |
| MDPS | 50A | Economical type |
