Hyundai Tucson Plug-in Hybrid 2022 Fuse Box Info
Passenger compartment fuse box location:

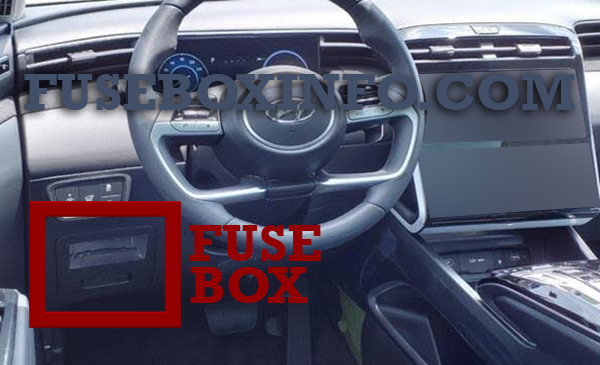

The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| DR Lock | 20A | Dead Lock Relay, Data Link Connector, Door Unlock/Lock Relay |
| P/WDW RH | 25A | Power Window Main Switch, Passenger Power Window Switch (LHD) |
| P/WDW LH | 25A | Power Window Main Switch, Passenger Power Window Switch (RHD) |
| Seat Warmer (RR) |
20A | Rear Seat Warmer Control Module |
| Seat Warmer (DR/PS) |
20A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| P/Seat(PS) | 30A | Passenger Power Seat Switch, Passenger Seat Relay Unit |
| ECS | 15A | ECS Unit |
| Safety Window RH |
25A | Driver(LHD)/Passenger(RHD) Safety Power Window Module, Rear Safety Power Window Module RH |
| Sunroof1 | 20A | Sunroof Control Unit (Blind) |
| P/Seat(DR) | 30A | Driver Power Seat Switch, Driver IMS Control Module |
| A/BAG2 | 10A | SRS Control Module |
| AMP | 25A | AMP |
| Module17 | 10A | "Driver/Passenger Smart Key Outside Handle, Crash Pad Switch, Hazard Switch, UIP Sensor UIP Siren, Data Link Connector, Rain Sensor" |
| Sunroof1 | 20A | Sunroof Control Unit (Glass) |
| IBU2 | 10A | IBU, Ignition Switch |
| Safety Window LH |
25A | Driver(RHD)/Passenger(LHD) Safety Power Window Module, Rear Safety Power Window Module LH |
| 10A | 10A | Outside Mirror Folding/Unfolding Relay, ROA Sensor, Driver IMS Control Module, Power Tailgate Unit, Driver/Passenger Door Mood Lmap, A/C Control Module, Console Mood Lamp, Instrument Cluster, Mood Lamp Unit, A/C Control Switch, Crash Pad Mood Lamp |
| Brake Switch | 10A | IBU, Stop Lamp Switch |
| E-Call | 10A | E-Call Unit |
| Module7 | 7.5A | IBU |
| PTG | 10A | Tailgate Relay |
| Multi Media | 20A | Audio, A/V & Navigation Head Unit |
| Washer | 15A | Multifunction Switch |
| Module8 | 7.5A | Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| A/BAG1 | 15A | SRS Control Module |
| A/C | 7.5A | Electronic A/C Compressor, Front/Rear A/C Control Switch A/C Control Module, E/R Junction Block (RLY.10, RLY.13) |
| Module2 | 15A | Front USB Charge Connector, Rear USB Charge Connector |
| Module1 | 10A | E-Call Unit, Audio, A/V & Navigation Head Unit, AMP, Audio Keyboard, A/V & Navigation Keyboard, IBU, BMS, ADAS Parking ECU, Power Outside Mirror Switch |
| Module6 | 10A | Front Console Switch, EPB Switch |
| IBU1 | 7.5A | IBU |
| Module5 | 10A | Front/Rear Seat Warmer Control Module, E-Call Unit, AMP, Driver IMS Control Module, Front/Rear A/C Control Switch, Audio, A/V & Navigation Head Unit, Wireless Charger Unit, Front Air Ventilation Seat Control Module, Data Link Connector, A/C Control Module, Heat Lamp LH/RH, Electro Chromic Mirror |
| A/BAG IND. | 7.5A | Instrument Cluster, Overhead Console Lamp |
| IG3 4 | 10A | HPCU |
| IG3 2 | 10A | Electronic Water Pump (HEV) |
| Module4 | 7.5A | Front View Camera, IBU, AWD ECM, VESS Unit, Crash Pad Switch, ECS Unit, ADAS Parking ECU |
| E-Shifter | 7.5A | Electronic Shift Switch, SCU |
| IG3 3 | 10A | BMS, E/R Junction Block (RLY.2) |
| Cluster | 7.5A | Instrument Cluster |
| Module3 | 7.5A | Stop Lamp Switch, Overhead Console Lamp, Multifunction Switch (R-MDPS) |
| MDPS | 7.5A | MDPS Unit (Column Type) |
