Hyundai Elantra 2007 Fuse Box Info

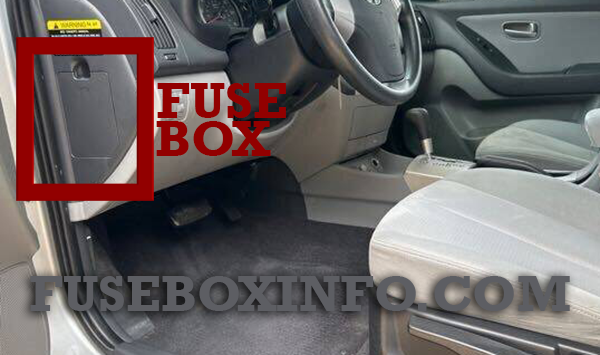

Passenger compartment fuse box location:
The instrument panel fuse box is located in the end of the driver side of the instrument panel.

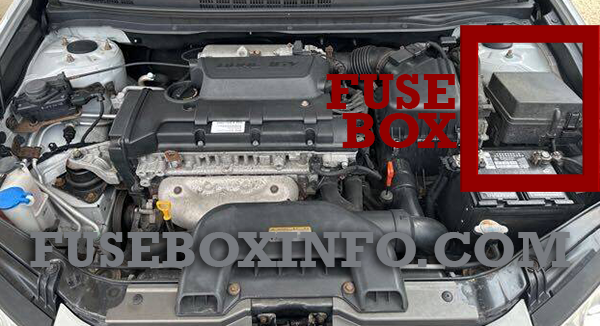

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| START | 10A | Ignition lock switch, Anti-theft alarm, Transaxle range switch |
| A/CON SW | 10A | A/C control module |
| HTD MIRR | 10A | Outside heated mirror motor |
| SEAT HTR | 15A | Seat warmer switch |
| A/CON | 10A | Blower relay, A/C control module, Sunroof control module |
| HEAD LAMP | 10A | Head lamp relay |
| FR WIPER | 25A | Front wiper relay |
| RR WIPER | 15A | (Spare) |
| DRL | 15A | Daytime running lamp unit |
| WCS | 10A | Occupant classification sensor |
| P/WDW DR | 25A | Power window main switch, Rear power window switch(LH) |
| CLOCK | 10A | Digital clock, Audio |
| C/LIGHTER | 15A | Power outlet |
| DR LOCK | 20A | Sunroof control module, Door unlock/lock relay |
| DEICER | 15A | - |
| STOP | 15A | Stop lamp switch |
| ROOM LP | 15A | Trunk room lamp, Dome lamp, Map lamp, Digital clock, HomeLink |
| AUDIO | 15A | Audio |
| T/LID | 15A | Trunk lid relay |
| AMP | 25A | Amplifier |
| SAFETY P/WDW | 25A | Safety power window module |
| P/WDW ASS | 25A | Front & rear power window switch(RH), Power window main switch |
| P/OUTLET | 15A | Power outlet |
| T/SIG | 10A | Hazard switch |
| A/BAG IND | 10A | Airbag indicator(instrument cluster) |
| CLUSTER | 10A | Instrument cluster, EPS module, ESC switch |
| A/BAG | 15A | SRS control module |
| SPARE | 15A | (Spare) |
| SPARE | 15A | (Spare) |
| TAIL RH | 10A | Head lamp(RH), Glove box lamp, Rear combination lamp(RH), License lamp |
| TAIL LH | 10A | Head lamp(LH), Power window main switch, Rear combination lamp(LH), License lamp |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALTERNATOR | 125A | Generator |
| EPS | 80A | EPS control module |
| ABS.2 | 20A | ESC control module, ABS control module, Multi purpose check connector |
| ABS.1 | 40A | ESC control module, ABS control module, Multi purpose check connector |
| B+.1 | 50A | Instrument panel junction box |
| RR HTD | 40A | Instrument panel junction box |
| BLOWER | 40A | Blower relay |
| C/FAN | 40A | Condenser fan #1, 2 relay |
| B+.2 | 50A | Instrument panel junction box |
| IGN.2 | 40A | Ignition switch, Start relay |
| IGN.1 | 30A | Ignition switch |
| ECU | 30A | Main relay, ECM |
| SPARE.1 | 20A | (Spare) |
| FR FOG | 15A | Front fog lamp relay |
| A/CON | 10A | A/C relay |
| HAZARD | 15A | Hazard switch, Hazard relay |
| F/PUMP | 15A | Fuel pump relay |
| INJ | 15A | A/C relay, Fuel pump relay, Injector #1,2,3,4, ECM, Idle speed actuator etc. |
| SNSR.2 | 10A | Pulse generator 'A', 'B’, Stop lamp switch, Vehicle speed sensor etc. |
| HORN | 15A | Horn relay |
| ABS | 10A | ESC control module, ABS control module, Multi purpose check connector |
| ECU.2 | 10A | ECM |
| B/UP | 10A | Back up lamp switch, Transaxle range switch, Cruise control module |
| H/LP LO RH | 10A | Head lamp(RH) |
| H/LP LO LH | 10A | Head lamp(LH) |
| H/LP HI | 20A | Head lamp Hi relay |
| SNSR.1 | 10A | Oxygen sensor, ECM, Mass air folw sensor etc. |
| SPARE | 10A | (Spare) |
| SPARE | 15A | (Spare) |
| SPARE | 20A | (Spare) |
