Honda Civic 2025 Fuse Box

Honda Hits: 148

Honda Civic 2025 Fuse Box Info

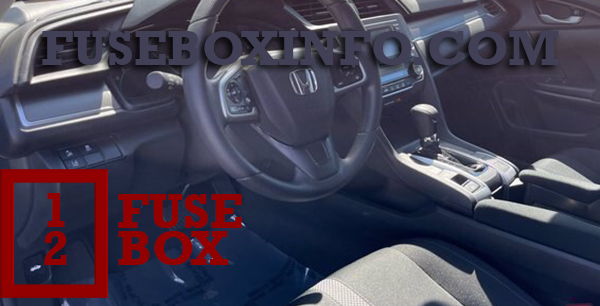

Passenger compartment fuse box location:

The interior fuse box and sub fuse box are located under the dashboard.

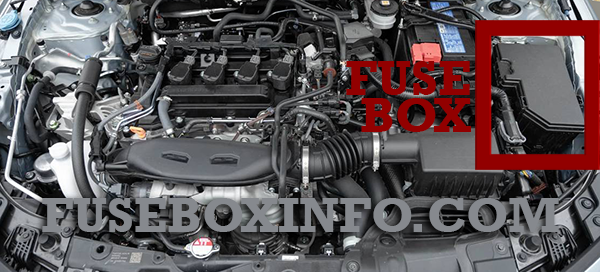

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box (Fuse box 1) - Sedan:

Fuse/Relay N° Rating Functions
1 20A P/W DR
2 20A P/W AS
3 20A P/W RR R
4 20A P/W RR L
5 10A OPTION
6 10A SRS
7 10A T/G MTR / TRUNK ACT
8 - -
9 20A FR ACC SOCKET
10 20A DOOR LOCK
11 10A METER
12 10A OPTION3 (ST CUT)
13 (10A) OPTION2 (RR WIP)*
14 10A OPTION6 (VB SOL)
15 (10A) DR DOOR UNLOCK
16 (20A) SUNROOF*
17 (10A) SBW1*
18 - -
19 - -
20 (10A) RR FOG*
21 (20A) CARGO ACC SOCKET*
22 10A SMART
23 (10A) DR DOOR LOCK
24 (7.5A) SBW2*
25 10A IMG
26 10A SRS
27 20A ACG / D/V / ST CUT RLY
28 10A OPTION5
29 15A FUEL PUMP
30 10A L SIDE DOOR UNLOCK
31 10A R SIDE DOOR UNLOCK
32 - -
33 - -
34 - -
35 - -
36 (20A) OPTION3 (SUNSHADE)*
37 (15A) IGA2*
38 - -
39 10A R SIDE DOOR LOCK
40 (20A) P/SEAT REC / RR HI*
41 (20A) P/SEAT SLIDE / FR HI*
42 (10A) BACK LT*
43 10A A/C
44 10A DRL
45 10A ACC
46 10A ACC KEY LOCK
47 10A L SIDE DOOR LOCK
48 20A H/SEAT
49 (20A) AS P/SEAT REC*
50 (10A) P/LUMBAR DR*
51 (10A) P/LUMBAR AS*
52 (20A) RR H/SEAT*
53 (20A) AS P/SEAT SLI*
54 10A OPTION1 / FUEL LID
55 (30A) AUDIO AMP*
56 (30A) ADS*

* Not available on all models



Passenger compartment fuse box (Fuse box 1) - Hatchback:

Fuse/Relay N° Rating Functions
1 20A P/W DR
2 20A P/W AS
3 20A P/W RR R
4 20A P/W RR L
5 10A OPTION
6 10A SRS
7 10A T/G MTR / TRUNK ACT
8 - -
9 20A FR ACC SOCKET
10 20A DOOR LOCK
11 10A METER
12 10A OPTION3 (ST CUT)
13 (10A) OPTION2 (RR WIP)
14 10A OPTION6 (VB SOL)
15 (10A) DR DOOR UNLOCK
16 (20A) SUNROOF*
17 (10A) SBW1*
18 - -
19 - -
20 (10A) RR FOG*
21 (20A) CARGO ACC SOCKET*
22 10A SMART
23 (10A) DR DOOR LOCK
24 (7.5A) SBW2*
25 10A IMG
26 10A SRS
27 20A ACG / D/V / ST CUT RLY
28 10A OPTION5
29 15A FUEL PUMP
30 10A L SIDE DOOR UNLOCK
31 10A R SIDE DOOR UNLOCK
32 - -
33 - -
34 - -
35 - -
36 (20A) OPTION3 (SUNSHADE)*
37 (15A) IGA2*
38 - -
39 10A R SIDE DOOR LOCK
40 (20A) P/SEAT REC / RR HI*
41 (20A) P/SEAT SLIDE / FR HI*
42

-*1

(10A)*2

-

BACK LT
43 10A A/C
44 10A DRL
45 10A ACC
46 10A ACC KEY LOCK
47 10A L SIDE DOOR LOCK
48 20A H/SEAT*
49 (20A) AS P/SEAT REC*
50 (10A) P/LUMBAR DR*
51 (10A) P/LUMBAR AS*
52 (20A) RR H/SEAT*
53 (20A) AS P/SEAT SLI*
54 10A OPTION1 / FUEL LID
55 (30A) AUDIO AMP*
56 (30A) ADS*

* Not available on all models

 *1 Continuously variable transmission models
 *2 Manual transmission models



Passenger compartment fuse box (Fuse box 2) - Sedan:

Fuse/Relay N° Rating Functions
A (10A) BACKUP2 MAIN
B (7.5A) AUDIO SUB VST*
C (10A) ACC VST
D (10A) VST 1
E (15A) AUDIO VST
F (20A) EOP*
G - -
H (10A) VST 2

* Not available on all models



Passenger compartment fuse box (Fuse box 2) - Hatchback:

Fuse/Relay N° Rating Functions
A (10A)*1 BACKUP2 MAIN
B (7.5A)*1 AUDIO SUB VST*
C (10A)*1 ACC VST
D (10A)*1 VST 1
E (15A)*1 AUDIO VST
F (20A)*1 EOP*
G -*1 -
H (10A)*1 VST 2

* Not available on all models

 *1 Continuously variable transmission models
 *2 Manual transmission models



Engine compartment fuse box - Sedan:

Fuse/Relay N° Rating Functions
1 125A BATTERY
2

40A

40A

60A

40A*1

(40A)*2

(30A)

60A

-

-

F/BOX OPTION

-

F/BOX OPTION2*

DC/DC2

F/BOX MAIN
3

40A

40A

40A

40A

40A

40A

40A

-

-

-

RR DEFROSTER

-

HTR MTR

-
4

30A

40A

(30A)

30A

30A

30A

30A

-

ABS/VSA MTR

DC/DC

-

IG MAIN

-

R/M2
5

30A

30A

70A

30A

40A

30A

40A

ST MAGNETIC SW

WIPER

EPS

R/M1

ABS/VSA FSR

MAIN FAN

F/BOX MAIN2
6 30A SUB FAN
7 30A IG MAIN2
8 - -
9 - -
10 - -
11 (10A) USB CHG*
12 - -
13 (10A) H/STRG*
14 - -
15 - -
16 (10A) MG CLUTCH
17 15A WASHER
18 10A HORN
19 15A BACK UP
20 (15A) AUDIO*
21 - -
22 15A DBW
23 (20A) EOP*
24 10A BACKUP FI-ECU
25 15A IGP
26 (15A) TCU*
27 (15A) LCM L
28 15A INJ
29 10A STOP
30 (15A) LCM R
31 15A IG COIL
32 20A EVTC*
33 15A HAZARD
34 - -
35 - -
36 (30A) AUDIO VST MAIN
37 (30A) BACKUP2
38 - -
39 - -
40 10A VBACT*
41 10A IGPS [LAF]
42 7.5A IG1 MON2

* Not available on all models

*1 Models with A-type meter
*2 Models with B-type meter



Engine compartment fuse box - Hatchback:

Fuse/Relay N° Rating Functions
1

150A*1

125A*2

 BATTERY
2

40A

40A

60A

40A

(40A)*1/40A*2

(30A)

60A

-

-

F/BOX OPTION

-

F/BOX OPTION2*

DC/DC2*

F/BOX MAIN
3

40A

40A

40A

40A

40A

40A

40A

-

-

-

RR DEFROSTER

-

HTR MTR

-
4

30A

40A

(30A)

30A

30A

30A

30A

-

ABS/VSA MTR

DC/DC*

-

IG MAIN

-

R/M2
5

30A

30A

70A

30A*1

50A*2

40A

30A

40A

ST MAGNETIC SW

WIPER

EPS

R/M1

RFC

ABS/VSA FSR

MAIN FAN*1 / R/M1*2

F/BOX MAIN2
6

30A*1

-*2

SUB FAN

-
7 30A*2 IG MAIN2
8

-*1

7.5A*2

-

ACTIVE EXHAUST VALVE
9

-*1

(30A)*2

-

EVP*
10

-*1

(7.5A)*2

-

AUDIO SUB*
11 - -
12 - -
13 (10A) H/STRG*
14 - -
15

-*1

(10A)

-

FR FOG*
16 (10A) MG CLUTCH
17 15A WASHER
18 10A HORN
19 15A BACK UP
20

-*1

(15A)

-

AUDIO*
21

-*1

7.5A*2

-

RFC RLY CL+
22 15A DBW
23 (20A) EOP*
24 10A BACKUP FI-ECU
25 15A IGP
26 (15A) TCU*
27 (15A) LCM L
28

(15A)*1

-*2

INJ*

-
29 10A STOP
30 (15A) LCM R
31 15A IG COIL
32

20A*1

-*2

EVTC

-
33 15A HAZARD
34

-*1

(7.5A)*2

-

AUDIO SUB VST*
35 - -
36 (30A) AUDIO VST MAIN*
37

(30A)*1

-*2

BACKUP2

-
38 - -
39 - -
40

-*1

(10A)*2

-

VBACT*
41 10A IGPS [LAF]
42 7.5A*1/(7.5A)*2 IG1 MON2*
43 -*2 -
44 (30A)*2  BACKUP2*

* Not available on all models

 *1 Continuously variable transmission models
 *2 Manual transmission models
