Ford F-150 2016 Fuse Box Info
Fuse box location:
The fuse box is in the right-hand side of the passenger footwell behind a trim panel.

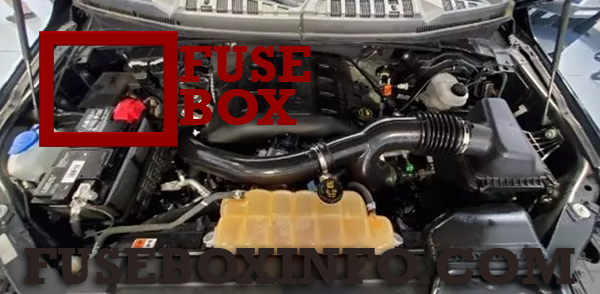

Engine compartment fuse box:
Fuse Box Diagram | Layout

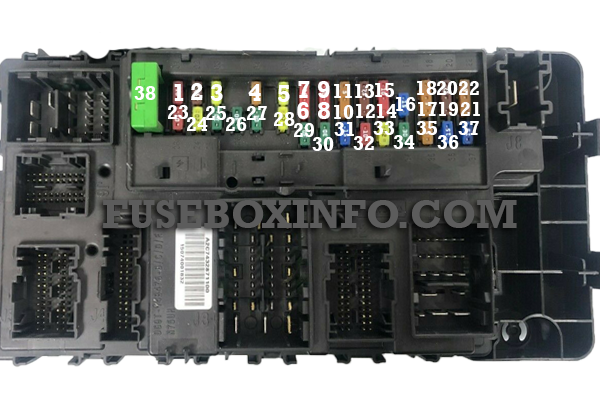

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Demand lamp relay, Power seats relay, Glove box, Vanity lamps, Overhead console, Dome, Courtesy, Map lamps |
| 2 | 7.5A | Memory module logic, Memory seat switches, Lumbar motor |
| 3 | 20A | Driver door lock motor |
| 4 | 5A | Trailer brake control |
| 5 | 20A | Not used |
| 6 | 10A | Not used |
| 7 | 10A | Not used |
| 8 | 10A | Not used |
| 9 | 10A | Not used |
| 10 | 5A | Not used (spare) |
| 11 | 5A | Combined sensor module |
| 12 | 7.5A | Climate head module, Smart datalink converter |
| 13 | 7.5A | Cluster, SCCM |
| 14 | 10A | Brake |
| 15 | 10A | Smart datalink converter |
| 16 | 15A | Tailgate release |
| 17 | 5A | HUD |
| 18 | 5A | Ignition switch and passive-entry passive start start stop switch, Key inhibit solenoid |
| 19 | 7.5A | Tow haul (O/D) cancel for floor or column shifter |
| 20 | 7.5A | Not used |
| 21 | 5A | HUD, In car temperature with humidity sensor |
| 22 | 5A | EPB, Power seat |
| 23 | 10A | PDRG switch, Inverter, Driver side window, Moonroof, Vista roof |
| 24 | 20A | Central lock/unlock |
| 25 | 30A | Driver door control module |
| 26 | 30A | Passenger door control module |
| 27 | 30A | Vista roof, Moonroof |
| 28 | 20A | Not used |
| 29 | 30A | Not used |
| 30 | 30A | Not used |
| 31 | 15A | Adjustable pedal switch and motor |
| 32 | 10A | Multi-function display, Global position system, Sync 1, Sync 2, Radio frequency receiver |
| 33 | 20A | Radio |
| 34 | 30A | Run-start relay |
| 35 | 5A | Restraints module |
| 36 | 15A | 360 camera module, Heated steering wheel module, Rear-view mirror, Rear heated seats |
| 37 | 20A | Power distribution box run-start relay |
| 38 | 30A | Rear window switches and motors |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | - | Not used |
| 4 | - | Telescoping side-view mirror |
| 5 | 40A | Rear window defroster |
| 6 | - | Not used |
| 7 | - | Not used |
| 8 | - | Telescoping side-view mirror |
| 9 | - | Not used |
| 10 | - | Not used |
| 11 | 60A | Automatic brake system motor |
| 12 | 50A | Body control module 1 |
| 13 | 60A | Body control module 2 |
| 14 | 20A | Amplifier |
| 15 | 25A | 4x4 |
| 16 | 10A | Spot light module |
| 17 | 15A | Heated seat |
| 18 | 10A | Steering-column lock |
| 19 | 10A | Power seats |
| 20 | 15A | Snow plow, Rear heated seats |
| 21A | - | Not used |
| 21B | - | Not used |
| 22 | 30A | Windshield wiper motor |
| 23 | 15A | Rain sensor |
| 24 | 25A | Series fan feed |
| 25 | - | Not used |
| 26 | 30A | Driver seat motors |
| 27 | 30A | Passenger power seat |
| 28 | 30A | Climate controlled seat |
| 29 | - | Not used |
| 30 | - | Air conditioner clutch relay |
| 31 | - | Not used |
| 32 | - | Not used |
| 33 | 50A | Electric fan 3 |
| 34 | 25A | Trailer tow park lamps |
| 35 | 20A | Trailer tow stop-turn relay fuse |
| 36 | 25A | Trailer tow lamps module |
| 37 | 50A | Electric fan 1 |
| 38 | 10A | Alt A sensor |
| 39 | 10A | Integrated wheel end solenoid |
| 40 | 15A | E-locker |
| 41 | 10A | Telescoping mirror |
| 42 | 30A | Transmission fluid pump |
| 43 | 25A | Horn |
| 44 | 10A | Air conditioner clutch |
| 45 | 10A | Powertrain control module relay coil |
| 46 | 10A | Wiper relay coil |
| 47 | - | Not used |
| 48 | - | Not used |
| 49 | 30A | Trailer brake control module |
| 50 | 30A | Power running boards |
| 51 | - | Fuel pump relay |
| 52 | - | Not used |
| 53 | - | Not used |
| 54 | 30A | Voltage quality module, Body-control-module voltage-quality module feed |
| 55 | 40A | Body control module RP2 feed |
| 56 | 20A | Fuel pump |
| 57 | 30A | Right-hand EPB actuator |
| 58 | 30A | Left-hand EPB actuator |
| 59 | 30A | Starter |
| 60 | 40A | Blower motor |
| 61 | 30A | Brake control module, Automatic brake system valves |
| 62 | - | Power seat relay |
| 63 | 15A | Heated mirrors |
| 64 | - | Not used |
| 65 | - | Starter relay |
| 66 | - | Powertrain control module relay |
| 67 | - | Windshield wiper relay |
| 68 | - | Blower motor relay |
| 69 | - | Power sliding back window relay |
| 70 | - | Electric fan 1 relay |
| 71 | - | Not used |
| 72 | 25A | 4x4 |
| 73 | - | Not used |
| 74 | 30A | PDRG motor |
| 75 | - | Horn relay |
| 76 | - | Not used |
| 77 | - | Steering column lock relay |
| 78 | - | Not used |
| 79 | - | Trailer tow parking lamp relay |
| 80 | - | Rear window defroster relay |
| 81 | - | Not used |
| 82 | - | PDRG close relay |
| 83 | - | Not used |
| 84 | - | Not used |
| 85 | - | Not used |
| 86 | - | Not used |
| 87 | 10A | Trailer tow backup lamps |
| 88 | - | Not used |
| 89 | 20A | Cigar lighter power point 1 |
| 90 | 20A | Power point 2 |
| 91 | 20A | Power point 3 |
| 92 | 20A | Power point 4 |
| 93 |
25A 10A |
GTDI vehicle power 1 PFI vehicle power 1 |
| 94 | - | Not used |
| 95 | 25A | Vehicle power 2 |
| 96 | - | Not used |
| 97 | 10A | Vehicle power 3 |
| 98 | - | Not used |
| 99 |
20A 15A |
Vehicle power 4 (PFI) Vehicle power 4 (GTDI) |
| 100 | - | Not used |
| 101 | - | Not used |
| 102 | - | Snow plow relay |
| 103 | - | Not used |
| 104 | - | Electic fan 3 relay |
| 105 | 10A | Power steering |
| 106 | - | Not used |
| 107 | 10A | Anti-lock brakes |
| 108 | - | Not used |
| 109 | 10A | Powertrain control module |
| 110 | 10A | 4x4 run/start, Adaptive cruise control |
| 111 | 10A | Transmission pump run-start |
| 112 | - | Not used |
| 113 | 7.5A | Blind spot information system, Rear view camera, Front view camera, Voltage quality module |
| 114 | - | Electric fan 2 relay |
| 115 | - | Not used |
| 116 | - | Not used |
