Ford F-150 2009 Fuse Box Info
Fuse box location:
The fuse box is located under the right-hand side of the instrument panel.
Engine compartment fuse box:
Fuse Box Diagram | Layout

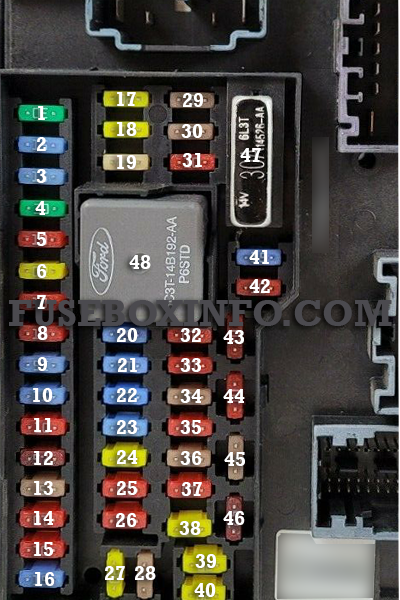

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Moon roof |
| 2 | 15A | Not used (spare) |
| 3 | 15A | Not used (spare) |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Keypad illumination, Brake Shift Interlock (BSI), SJB microprocessor power |
| 6 | 20A | Turn signals, Stop lamps |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior courtesy lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Power mirror switch, Memory seat module microprocessor power, Steering column switch |
| 13 | 5A | SYNC |
| 14 | 10A | Not used (spare) |
| 15 | 10A | Climate control |
| 16 | 15A | Ignition switch feed |
| 17 | 20A | All lock motor feeds |
| 18 | 20A | Driver memory seat switch |
| 19 | 25A | Not used (spare) |
| 20 | 15A | Adjustable pedals, Datalink |
| 21 | 15A | Fog lamps, Fog lamp indicator |
| 22 | 15A | Park lamps, Side marker lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn |
| 25 | 10A | Interior demand lamps, Mid box power feed |
| 26 | 10A | Instrument panel cluster, Key out inhibit solenoid, Radio info display (CID), Radio buttons, Key-in chime |
| 27 | 20A | Not used |
| 28 | 5A | Radio muting |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Passenger airbag disable indicator |
| 31 | 10A | Restraints control module |
| 32 | 10A | Non-integrated compass module, Heated-only seat module |
| 33 | 10A | Trailer brake controller |
| 34 | 5A | Electronic locking differential indicator |
| 35 | 10A | Rear park assist |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Not used (spare) |
| 38 | 20A | Subwoofer |
| 39 | 20A | Radio, Navigation display |
| 40 | 20A | Not used (spare) |
| 41 | 15A | EC mirror, Door lock switch illumination, Radio accessory delay |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Heated mirror/backlight relay, Rain sensor, Reverse camera |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Front wiper logic, Blower motor relay |
| 46 | 7.5A | Occupant classification sensor (OCS) |
| 47 | 30A | Power windows, Moon roof, Power sliding backlight |
| 48 | - | Delayed accessory relay (Feeds fuse 41 and circuit breaker 47) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | PCM power relay |
| 2 | - | Starter relay |
| 3 | - | Blower motor relay |
| 4 | - | Heated backlite relay |
| 5 | - | Not used |
| 6 | - | Trailer tow park lamp relay |
| 7 | - | Not used |
| 8 | - | Fuel pump |
| 9 | - | Trailer tow battery charger |
| 10 | - | Not used |
| 11 | 30A | Power running board motors |
| 12 | - | Not used |
| 13 | 30A | Starter relay |
| 14 | 30A | Passenger power seats |
| 15 | - | Not used |
| 16 | - | Not used |
| 17 | 30A | Trailer brake |
| 18 | - | Not used |
| 19 | - | Not used |
| 20 | 20A | 4x4 module (ESOF) |
| 21 | 30A | Trailer tow battery charge |
| 22 | 20A | Cigar lighter |
| 23 | - | A/C clutch relay |
| 24 | - | Not used |
| 25 | - | Not used |
| 26 | 10A | PCM (KAPWR), Canister vent solenoid, Transmission, PCM relay |
| 27 | 20A | Fuel pump relay |
| 28 | - | Not used |
| 29 | 10A | 4x4 |
| 30 | 10A | A/C clutch |
| 31 | 20A | Trailer tow park lamp relay |
| 32 | 40A | Heated backlite/mirror relay |
| 33 | - | Not used |
| 34 | 40A | PCM relay |
| 35 | - | Not used |
| 36 | 30A | Roll stability control module (RSC) |
| 37 | - | Trailer tow left hand stop/turn relay |
| 38 | - | Trailer tow right hand stop/turn relay |
| 39 | - | Back up lamps |
| 40 | - | Not used |
| 41 | - | Not used |
| 42 | - | Not used |
| 43 | 20A | Backup lamp relay |
| 44 | - | Not used |
| 45 | 20A | Trailer tow stop turn relay feed |
| 46 | 15A | Brake on/off (BOO) switch |
| 47 | 60A | Roll stability control module (RSC) |
| 48 | - | Not used |
| 49 | 30A | Wiper motor, washer pump |
| 50 | - | Not used |
| 51 | 40A | Blower motor relay |
| 52 | - | Not used |
| 53 | 5A | Power train control module (PCM), 6R80 transmission |
| 54 | 5A | 4x4 module, Back up lamp, Roll Stability Control (RSC), Trailer tow battery charge relay |
| 55 | 5A | Electronic compass mirror (6R transmission only) |
| 56 | - | Not used |
| 57 | - | Not used |
| 58 | 15A | Trailer tow backup lamps |
| 59 | 15A | Heated mirrors |
| 60 | - | One-touch Start diode |
| 61 | - | Fuel pump diode |
| 62 | - | Not used |
| 63 | - | Not used |
| 64 | 30A | Amplifier |
| 65 | 20A | Auxiliary power point (instrument panel) |
| 66 | 20A | Auxiliary power point (inside center console) |
| 67 | - | Not used |
| 68 | 20A | 4x4 module |
| 69 | 30A | Passenger heated/cooled seats |
| 70 | - | Not used |
| 71 | - | Not used |
| 72 | 20A | Auxiliary power point (Rear) |
| 73 | - | Not used |
| 74 | 30A | Driver power seat |
| 75 | 15A | PCM – VPWR1 |
| 76 | 20A | VPWR2,VBV, MAF/IAT, CMS 12 and 22 with 6R80 transmission, Brake on/off switch (BOO) |
| 77 | 10A | VPWR3, Electric fan clutch, A/C clutch relay coil, Floor shifter (4–speed transmission) |
| 78 | 25A | Ignition coils, VPWR4 |
| 79 | 10A | CMS 4–speed transmission, 12 and 22 with 4–speed transmission |
| 80 | 5A | Steering wheel illumination |
| 81 | - | Not used |
| 82 | 10A | Traction brake control module (TBCM), Center high mount brake lamp (CHMSL), After market CHMSL |
| 83 | - | Not used |
| 84 | - | A/C clutch |
| 85 | - | Not used |
