Ford Capri 2024 Fuse Box Info
Passenger compartment fuse box location:

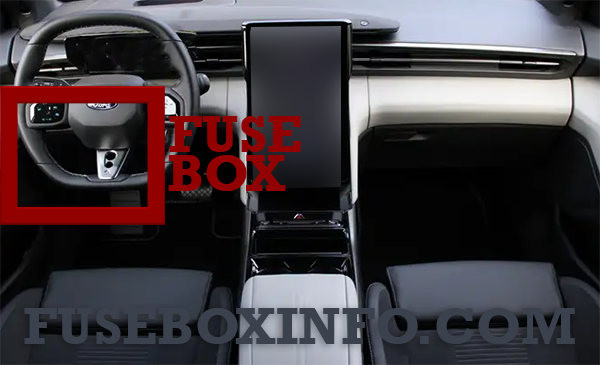

The fuse box is located at the left side of the steering column at the bottom of the instrument panel (LHD). The fuse box is located in the glove box, behind the cover (RHD).
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | - | Not used |
| 2 | 15A | Restraints control module |
| 3 | 25A | Trailer tow control module |
| 4 | 7.5A | Front camera assistance system |
| 5 | 25A | Body control module, Left-hand exterior lamps |
| 6 | 30A | Body control module, Interior lighting, Ambient lighting module, Trunk lighting, Vanity mirror |
| 7 | 30A | Heated front seats |
| 8 | - | Not used |
| 9 | 30A | Left-hand front door module, Left-hand rear door module |
| 10 | - | Not used |
| 11 | 15A | Trailer tow control module |
| 12 | - | Not used |
| 13 | 40A | Body control module, Liftgate locking system, Dual washer system |
| 14 | 30A | Amplifier |
| 15 | - | Not used |
| 16 | 10A | Not used |
| 17 | 5A | Parking assist control module, Blind spot detection control modules |
| 18 | 5A | Keyless access control module, Keyless access sensors, Steering column lock, Hands-free liftgate control module |
| 19 | 5A | Instrument cluster, On-board communication control module |
| 20 | 7.5A | Phone wireless charger |
| 21 | 7.5A | Top-view camera control module, Rear view camera |
| 22 | 10A | Powertrain control module |
| 23 | 5A | Trans-receiver control module |
| 24 | 10A | USB port center console |
| 25 | - | Not used |
| 26 | 30A | Right-hand front door module, Right-hand rear door module |
| 27 | - | Not used |
| 28 | 10A | HV traction battery service disconnect, HV safety line |
| 29 | 15A | Trailer tow control module |
| 30 | 20A | Multi-function display |
| 31 | 25A | Trailer tow control module |
| 32 | 25A | Body control module, Right-hand exterior lamps |
| 33 | - | Not used |
| 34 | 15A | Air conditioning control module |
| 35 | - | Not used |
| 36 | 40A | Blower regulator control module |
| 37 | 30A | Rear liftgate control module |
| 38 | 7.5A | Front seat lumbar control module |
| 39 | 15A | Steering column control module |
| 40 | 10A | Anti-theft alarm |
| 41 | 5A | Data gateway control module |
| 42 | 10A | USB port second row |
| 43 | 7.5A | Interior temperature sensor, Heated rear window relay, Interior carbon-dioxide sensor |
| 44 | 7.5A | Light switch, Rain and light sensor, Anti-theft sensor, On-board diagnostic interface, External function panel, Headliner control module, Power window control panel |
| 45 | 5A | Steering column control module |
| 46 | 10A | Center display, Head-up display |
| 47 | 15A | Center display movement system |
| 48 | - | Not used |
| 49 | - | Not used |
| 50 | - | Not used |
| 51 | - | Not used |
| 52 | 20A | Trunk 12V power socket |
| 53 | - | Not used |
| 54 | - | Not used |
| 55 | - | Not used |
| 56 | - | Not used |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | 7.5A | Trunk 12V power socket relay |
| 60 | 7.5A | On-board diagnostic interface |
| 61 | 5A | Inverter front powertrain, Inverter rear powertrain |
| 62 | - | Not used |
| 63 | 7.5A | Not used |
| 64 | 7.5A | Auto-dimming interior mirror |
| 65 | - | Not used |
| 66 | 15A | Rear window wiper |
| 67 | 30A | Heated rear window |
| Relays | ||
| R1 | 20A | Trunk 12V power socket relay |
| R2 | 20A | Switched positive relay |
| R3 | 40A | Heated rear window relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | - | Not used |
| 2 | 7.5A | Powertrain control module relay, ABS-ESP control module. |
| 3 | 15A | Inverter front powertrain, Inverter rear powertrain, Onboard charger |
| 4 | 30A | Left-hand headlamp |
| 5 | 30A | Right-hand headlamp |
| 6 | 7.5A | Front radar distance control |
| 7 | - | Not used |
| 8 | - | Not used |
| 9 | 15A | Horn |
| 10 | 30A | Windshield wiper |
| 11 | 7.5A | Air conditioning system |
| 12 | 7.5A | Pedestrian alert system |
| 13 | 25A | ABS-ESP control module |
| 14 | - | Not used |
| 15 | 40A | ABS-ESP control module |
| 16 | 50A | Cooling fan |
| 17 | - | Not used |
| 18 | - | Not used |
| 19 | - | Not used |
| 20 | - | Not used |
| 21 | - | Not used |
| 22 | - | Not used |
| 23 | 10A | Powertrain control module |
| 24 | 5A | Cooling fan control module |
| 25 | 15A | Coolant pump, HV traction battery pre-heater |
| 26 | 15A | Coolant pump, Radiator shutter |
| 27 | - | Not used |
| 28 | - | Not used |
| 29 | - | Not used |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | 50A | Brake booster |
| Relays | ||
| R1 | 40A | Powertrain control module relay |
| R2 | - | - |
| R3 | 20A | Horn relay |
| R4 | - | - |
| R5 | - | - |
| R6 | 20A | Air conditioning system relay |
