Ford F-150 2024 Fuse Box Info

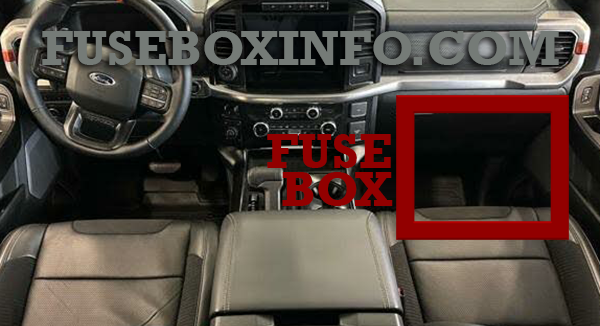

Passenger compartment fuse box location:
The fuse box is in the right-hand side of the passenger footwell behind a trim panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Rating | Functions |
3 | 7.5A | Wireless charger |
6 | 10A | Driver power window switch |
7 | 10A | Gear shift module |
8 | 7.5A | Cell phone passport module |
9 | 5A | Overhead console combined sensing module |
10 | 25A | Multi-contour seat module |
12 | 5A | Climate control |
13 | 7.5A | Steering column control module |
19 | 5A | Head up display |
20 | 5A | Ignition switch |
23 | 30A | Driver door control module |
24 | 30A | Moonroof |
26 | 30A | Passenger door control module |
30 | 10A | USB charging port 1 |
31 | 10A | Terrain management switch |
32 | 20A | Audio control module |
33 | 5A | Instrument cluster display |
35 | 5A | Electronic toll collection |
36 | 5A | Interior temperature sensor |
37 | 15A | Adjustable pedals |
38 | 5A | Exterior mirrors |
39 | 5A | Driver monitor |
40 | 30A | Amplifier |
41 | 10A | Navigation |
42 | 15A | Voice control module |
43 | 30A | Tailgate |
44 | 40A | Driver seat |
45 | 30A | Passenger seat |
52 | 5A | Tailgate brake lamp |
53 | 5A | Climate controlled rear seats |
55 | 5A | Electrochromatic rear view mirror |
60 | 10A | Rear sliding window, Moonroof, Driver power window |
61 | 30A | Rear power window switch |
70 | 20A | Adaptive driver assistance systems |
71 | 5A | High mounted camera |
72 | 15A | Towing trailer connector |
80 | 15A | Steering column control, Heated steering wheel |
101 | 10A | USB charge port 3 |
Engine compartment fuse box:
Fuse/Relay N° | Rating | Functions |
1 | 30A | Body control module - battery power in feed 1 |
2 | 30A | Body control module - battery power in feed 2 |
3 | 30A | Body control module - power feed 3 |
4 | 50A | Electric brake booster |
5 | 50A | Customer interface module 1 |
6 | 40A | Climate control module |
7 | 50A | Electric brake booster |
8 | 30A | Trailer tow 1 |
9 | 50A | Customer interface module 2 |
10 | 30A | Trailer tow braking |
13 | 40A | All wheel drive module |
14 | 10A | Hybrid powertrain control module, Powertrain control module |
15 | 25A | Powertrain control module |
16 | 20A | Vehicle power 2 |
17 | 10A | Vehicle power 3 |
18 | 20A | Vehicle power 4 |
19 | 20A | Transmission |
22 | 15A | Right headlamp |
23 | 15A | Left headlamp |
24 | 30A | Starter |
26 | 30A | Fuel pump |
27 | 20A | Power outlet 1 |
28 | 20A | Power outlet 2 |
29 | 20A | Power outlet 3 |
31 | 30A | Front wiper motor |
32 | 5A | Rain switch |
34 | 15A | Multi access tailgate switch |
36 | 30A | Body control module - power feed 4 |
42 | 20A | Trailer brake control module |
43 | 30A | Interior power distribution box - run/start power |
46 | 20A | Rear seat climate control |
47 | 15A | Spotlight |
49 | 5A | Electric brake booster |
50 | 5A | Powertrain control module |
53 | 10A | Air quality/Oxides of nitrogen sensor |
54 | 40A | Rear heated windshield |
59 | 25A | Horn |
60 | 30A | Trailer tow park lamps |
61 | 15A | Upfitter 2 relay (Raptor, Tremor, Raptor R) |
62 | 40A | Blower motor |
63 | 10A | Trailer tow connector |
66 | 25A | Rear sliding window |
69 | 5A | Power steering module |
70 | 10A | Diagnostic connector |
75 | 50A | Electric fan 1 |
76 | 50A | Electric fan 2 |
79 | 5A | Adaptive front light |
82 | 5A | Hybrid powertrain control module |
84 | 15A | Fuel injectors |
95 | 15A | Hybrid powertrain control module |
98 | 10A | Engine cooling valve |
146 | 10A | Traction battery control module |
159 | 5A | DC/DC power |
168 | 15A | Traction battery control |
169 | 10A | Motor electric coolant pump |
170 | 10A | Auxiliary water pump |
172 | 30A | Fuel pump 2 |
173 | 15A | Upfitter 1 |
174 | 15A | Upfitter 2 |
175 | 10A | Upfitter 3 |
176 | 10A | Upfitter 4 |
177 | 5A | Upfitter 5 |
178 | 5A | Upfitter 6 |
179 | 15A | Charge air pump |
181 | 40A | Intercooler fan |
R04 | - | Electronic fan relay 1 |
R06 | - | Electronic fan relay 3 |
R35 | - | Not used |
R36 | - | Not used |
