Ford Escort 1996 Fuse Box Info

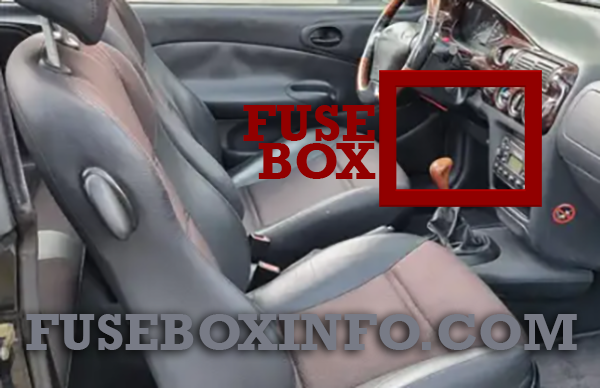

Passenger compartment fuse box location:
The fuse box is located below the instrument panel in front of the driver’s door.

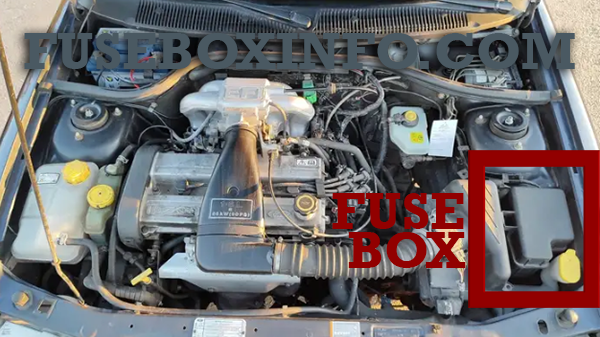

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | A/C On Indicator, Air Conditioner Relay, Air Conditioner Switch, Daytime Running Lamp Module, Daytime Running Lamp Relay, Rear Wiper and Washer Motor, Wide-Open Throttle Cutout Relay |
| 2 | 30A | Door Lock Motor |
| 3 | 20A | Brakelamp, Electronic Automatic Transaxle Module, Powertrain Control Module, High-Mount Brakelamp, Horn, Shift Interlock System, Speed Control |
| 4 | 15A | Hazard Flasher, Front and Rear Turn Lamp, Turn Indicator Lamp |
| 5 | 30A | Passive Belt Control Module, Passive Belt Motor |
| 6 |
15A |
Powertrain Control Module (1.8L engine), Exterior Lamps, Interior Illumination, Parking Lamp Relay, Warning Chime Module |
| 7 |
15A (1.8L engine) 15A (1.9L engine) |
Dome and Map Lamp, Door Lock Switch, Engine Room, Ignition Key Illumination, Luggage Lamp, Premium Sound Amplifier, Radio (memory), Powertrain Control Module, Shift Interlock System, Visor Mirror Lamp, Warning Chime Module |
| 8 | 30A | Power Window Motor |
| 9 | 15A | Moon Roof Motor |
| 10 | 15A | Cooling Fan System, Powertrain Control Module Power Relay |
| 11 | 15A | Air Bag Diagnostic Module, Backup Lamps, Cluster, Flasher Unit, Passive Belt Control Module, Powertrain Control Module (Canada only), Shift-Lock System, Speed Control, Turn Signal Flashers, Warning Chime |
| 12 | 15A | Instrument Panel Dimmer Module, Radio, Remote Control Mirror |
| 13 | 20A | Front Wiper and Washer Motor, Interval Governor, Interval Wiper and Washer Switch |
| 14 | 20A | Powertrain Control Module (1.8L engine), Rear Window Defrost |
| 15 | 30A | Blower Motor, Powertrain Control Module (1.8L engine) |
| 16 |
10A (1.9L engine) 20A (1.8L engine) |
Heated Exhaust Gas Oxygen Sensor (1.9L engine) (on joint box side, not shown) Horn (on joint box side, not shown) |
| 17 | 20A | Cigar Lighter (on joint box side) |
| 18 | 10A | Anti-lock Brake System (1.8L engine) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Charging System (1.8L engine), Fuel Injection System |
| 2 | 30A FL | Daytime Running Lamp (Canada only), Fog Lamps, Headlamps, High Beam Indicator |
| 3 |
80A FL (1.8L engine) 100A FL (1.9L engine) |
Charging System, Engine Component Fuse Panel (ABS, A/C, BTN, Fan, Horn (1.8L engine)), Engine Controls, Instrument Cluster (Manual Transaxle Only), Instrument Panel Fuse Panel (Cigar, Defrost, Engine ABS, Heater, HEGO (1.9L engine), Meter, Power Window, Radio, Rear Wiper, Sun Roof), Starting System |
| 4 |
60A FL (1.8L engine) 40A FL (1.9L engine) |
Charging System (1.9L engine), Instrument Panel Fuse Panel (Belt, Door Lock, Hazard, Room, Stop, Tail) |
| 5 |
30A (1.8L MTX engine) 40A (1.9L engine) (1.8L ATX engine) |
Cooling Fan System |
| 6 |
10A (1.9L engine) 20A (1.8L engine) |
Air Conditioner Magnet Cluch, Powertrain Control Module (1.9 engine) |
| 7 |
20A FL (1.8L engine) 20A (1.9L engine) |
Fuel Pump Relay, Powertrain Control Module Fuel Pump |
| 8 | 60A (1.8L engine) | Anti-lock Brake System |
| 9 | 10A | Air Bag Diagnostic Module |
| 10 |
20A (1.8L engine) 10A (1.9L engine) |
Fuel Pump OBD-II (Data link connector) |
