Ford Windstar 1996 Fuse Box Info

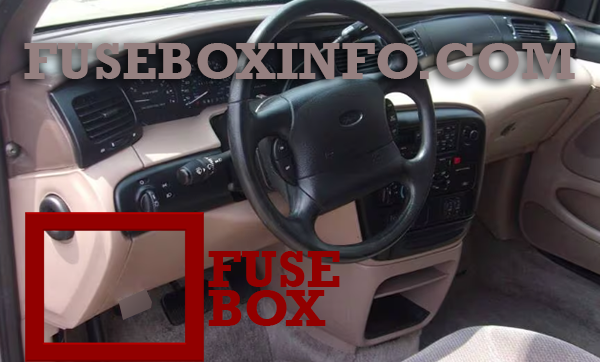

Passenger compartment fuse box location:
The fuse box is located under the instrument panel to the left of the steering wheel.

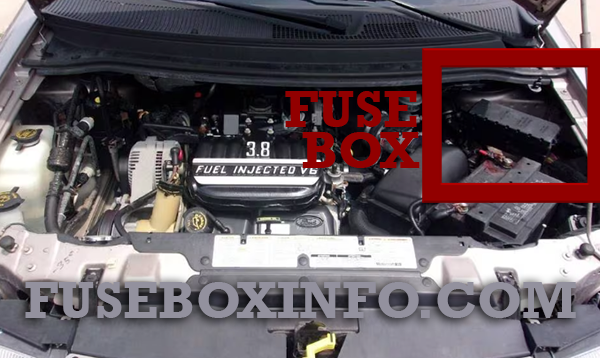

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. Power Mirror | 10A | Power mirror/Anti-theft warning lamp/ Diagnostic conn power |
| 2. Prove Out | 10A | LH Tail, Stop, Park lamps |
| 3. Dimmer Illumination | 5A | Instrument cluster/Radio remote radio/Cigar lighter/Headlamp graphics/Heated backlight switch/Heater controls/Power locks/Power windows/Rear wiper switch/Rear heater/Fog lamp switch |
| 4. Side Lamp | 10A | Side marker lamps |
| 5. Headlamp | 20A | Headlamp washer |
| 6. Quarter Flip Window | 15A | Left quarter flip window/Right quarter flip window |
| 7. Stoplamp | 15A | High mount brakelamp/Right stoplamp/Left stoplamps/EEC/Brake shift interlock/Speed control |
| 8. Audio/Amp | 10A | RH Tail, Stop, Park lamps |
| 9. - | - | Not used |
| 10. Hi-beam | 10A | High beam indicator (electronic instrument cluster only) |
| 11. Park Lamps | 15A | Park lamps |
| 12. Run/Acc | 10A | GEM/Anti-theft module/Keyless entry module/Lamp outage module/Radio receiver/ Remote radio/ Lamp outage module lamp |
| 13. Audio | 15A | Radio/CD disk changer |
| 14. Run/Start | 5A | Instrument cluster/Electrochromic mirror |
| 15. GEM | 15A | GEM |
| 16. Horn | 15A | Horn/Horn relay (coil) |
| 17. Fog Lamp | 15A | Front fog lamps |
| 18. Front Wiper | 25A | Wiper relays/Wiper/Washer pump |
| 19. GEM | 10A | GEM/Elcctronic cluster |
| 20. Ignition | 25A | Ignition coil/Ignition capacitor/IRCM |
| 21. Run | 10A | A/C clutch/Brake shift interlock/Heated backlight relay (coil)/Blend door motor, electronic cluster/Airbag diagnostic module |
| 22. Rear Cigar | 20A | Rear cigar lighter/Power plug |
| 23. Flash to Pass | 15A | Wipers and Flash to Pass |
| 24. Rear Wiper | 20A | Rear wiper motor/Rear washer pump |
| 25. Hazards | 10A | Turn lamps/Turn indicator R (cluster) |
| 26. Lamps | 10A | LH Aero headlamp |
| 27. DRL | 15A | Daytime running lamps |
| 28. Front Cigar | 15A | Front cigar lighter |
| 29. Interior Illumination | 15A | Battery saver relay (coil)/Interior lamp relay (coil)/Delayed accessory relay (coil)/Visor lamps/Underhood lamp/Glove box lamp/2nd row reading lamp/Rail lamp/B-pillar lamp/ Cargo lamp/Dome lamp/Courtesy lamps/ Puddle lamps/Keyhole lamps/Keyless entry module |
| 30. Speed Control | 25A | Speed control/Brake pressure switch |
| 31. Load Leveling | 10A | Load leveling compressor/Left and right spring solenoid |
| 32. Lamps | 10A | RH Aero headlamp |
| 33. ABS | 15A | ABS module/ABS relay |
| 34. Left Window | 30A | Left power window/One-touch down relay (coil) |
| 35. Anti-theft | 15A | Anti-theft module |
| 36. Blower | 30A | AC mode switch |
| 37. Power Door Locks | 20A | Power door lock motors |
| 38. Mirror | 15A | Heated mirrors |
| 39. Rear Blower | 30A | Rear heater blower motor |
| 40. Right Window | 30A | Right power window |
| 41. - | - | Not used |
| 42. - | - | Not used |
| 43. - | - | Not used |
| 44. - | - | Not used |
Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| A. Trailer tow | 50A | Trailer towing |
| B. Fan-Hi | 60A | Engine cooling fans |
| C. Start | 60A | Starter solenoid/fuse 30/fuse 36/fuse 2 |
| D. Ignition | 60A | Fuse 6/fuse 12/fuse 8/fuse 18/fuse 14/ fuse 24/fuse 20/fuse 21/fuse 27/fuse 33 |
| E. Rear blower/ Load leveling | 60A | Rear heater blower motor/fuse 39/Air suspension |
| F. Seat | 60A | Power seats |
| G. - | - | Not used |
| H. Fan-Lo | 40A | Engine cooling fans |
| J. Battery | 60A | Fuse 13/fuse 25/fuse 1/fuse 34/fuse 37/fuse 40/fuse 7/fuse 19/fuse 4 |
| K. Light | 60A | Headlamps/fuse 10/fuse 11/fuse 3/fuse 9/fuse 23/fuse 29/fuse 35/fuse 41 |
| L. ABS | 60A | ABS control/pump motor module |
| M. Heated backlight | 60A | Heated backlight/fuse 16/fuse 28/fuse 22/fuse 38 |
| N. Fuel | 20A | PCM/Fuel pump |
| P. - | - | Not used |
| R. PCM | 15A | PCM memory |
| S. PCM (3.8L) | 30A | Axode/cylinder identification sensor/ EDIS module/ PCM power/ EGR control/HEGO's/IAC/injectors/ MAFS/VMV |
| T. Alt/Reg | 15A | Internal alternator regulator |
| U. Airbag | 10A | Airbag power |
| V. Trans light | 10A | Overdrive off indicator light |
| W. Fan | 10A | PCM fan monitor |
| D1 | - | Hood switch |
