Ford Excursion 2000 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.

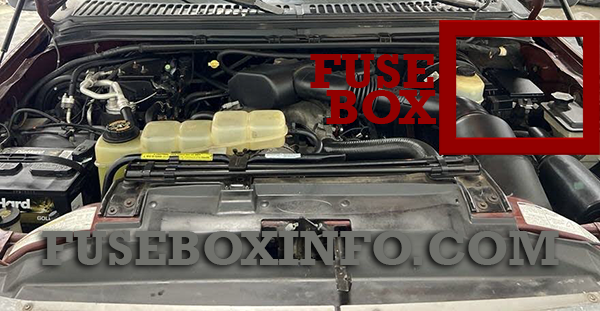

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Radio, Secondary Fusing for Audio Options |
| 2 | 5A | Instrument Cluster, Powertrain Control Module (PCM) Keep Alive Memory, PATS LED |
| 3 | 20A | Cigar Lighter, Data Link Connector |
| 4 | - | Not Used |
| 5 | 10A | Ignition Run Power Feed (Customer Access) |
| 6 | 15A | DRL, Brake Shift Interlock (BSI), ECM, Overhead Trip Computer (OTC), AUX A/C Components, Hazard Flasher, Speed Control, Vacuum Pump, Backup Lamps, Electronic Shift On The Fly Hublock Solenoid, Heated Seat |
| 7 | 5A | Power Window/Lock Switch Illumination |
| 8 | 5A | Headlamp Switch, LED/Radio |
| 9 | - | Not Used |
| 10 | - | Not Used |
| 11 | 30A | Wiper Run/Park Relay Coil, Wiper Hi/LO Relay Coil, Washer Pump Relay Coils, Front Wiper Motor, Rear Wiper Motor Relay Coils |
| 12 | - | Not Used |
| 13 | 20A | Stop Lamps, Center High-mount Stop Lamp/Hazard, Trailer Tow Stop Lamp, Speed Control |
| 14 | 15A | Dome Lamp, Cargo Lamp, Courtesy Lamps, Running Boards, Power Mirrors, Vanity Mirrors, Map Lamps, Underhood Lamps, Glove Box Lamp, Power Windows (Delayed Accessory) |
| 15 | 5A | Stop Lamp Switch (Logic), PATS, GEM |
| 16 | 15A | Hi-beam Headlamps, Instrument Cluster (Hi-beam Indicator) |
| 17 | 15A | Heated Mirrors, Rear Defroster "ON" indicator |
| 18 | 10A | Rear Integrated Control Panel (RICP), CD Changer |
| 19 | 10A | Instrument Cluster, GEM Module, Overdrive Cancel Switch, PATS/PATS Transiever, Idle Validation Switch (Diesel only) |
| 20 | 15A | Starter Motor Relay, GEM, Radio (w/Secondary) |
| 21 | 5A | Radio Start Feed |
| 22 | 10A | Air Bag Module, Blower Motor Relay Coil |
| 23 | - | Not Used |
| 24 | 10A | A/C Clutch, Blend Door Actuator, Trailer Tow Battery Charge Relay Coil |
| 25 | 5A | 4-Wheel Anti-Lock Brake System (4WABS) |
| 26 | - | Not Used |
| 27 | - | Not Used |
| 28 | - | Not Used |
| 29 | 5A | Instrument Cluster (Charge and Airbag Warning Lamps) |
| 30 | 30A | PCM Relay Coil, Ignition Coil (Gasoline only), Fuel Heater (Diesel only), Wastegate Solenoid (Diesel only), Injector Driver Module Relay Coil (Diesel only) |
| 31 | - | Not Used |
| Relay 1 | - | Interior Lamp Relay |
| Relay 2 | - | Battery Saver Relay |
| Relay 3 | - | Rear Defroster |
| Relay 4 | - | Power Window One Touch Down Relay |
| Relay 5 | - | Accessory Delay Relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Rear Wiper |
| 2 | 10A | Air Bag |
| 3 | 15A | Quarter Flip Window Motor |
| 4 | 20A | Trailer Tow Backup Lamps, Trailer Tow Park Lamps |
| 5 | 20A | Instrument Panel Auxiliary Power Point |
| 6 | 10A | Gasoline only-A/C (CASS) Diesel only-Alternator "A" Field |
| 7 | 20A | Floor Console Auxiliary Power Point |
| 8 | 15A | Park Lamps |
| 9 | 20A | Left Rear Quarter Auxiliary Power Point |
| 10 | 30A | Head Lamps |
| 11 | 20A | Cargo Auxiliary Power Point |
| 12 | 15A | DRL |
| 13 | 10A | Washer |
| 14 | 15A | Horn |
| 15 | - | Not Used |
| 16 | - | Not Used |
| 17 | - | Not Used |
| 18 | - | Not Used |
| 19 |
20A (Gasoline |
Gasoline only-E40D/HEGO Diesel only-Not Used |
| 20 | 7.5A | Trailer Tow Stop /Turn LH |
| 21 | 10A | Left Headlamp |
| 22 | 7.5A | Trailer Tow Stop /Turn RH |
| 23 | 10A | Right Headlamp |
| 24 | 20A (Gasoline only) - (Diesel only) |
Gasoline only-Engine Control Diesel only-Not Used |
| 101 | 50A | Ignition Switch (B1 & B3) |
| 102 | 30A | Power Door Locks |
| 103 | 40A | Auxiliary Blower |
| 104 | 30A | Electronic Shift On The Fly (Transfer Case Motor) |
| 105 | 50A | Junction Box Battery Feed |
| 106 | - (Gasoline only) 30A (Diesel only) |
Gasoline only-Not Used Diesel only-Injector Driver Module |
| 107 | 30A | Heated Seats |
| 108 | 30A | Power Seats |
| 109 | 40A | Front Blower Motor |
| 110 | 30A | Trailer Tow Electronic Brake |
| 111 | - | Not Used |
| 112 | 20A | Fuel Pump |
| 113 | 30A (Gasoline only) 20A (Diesel only) |
PCM Power |
| 114 | - | Not Used |
| 115 | 30A | Trailer Tow Battery Charge |
| 116 | 50A | Ignition Switch (B4 & B5) |
| 117 | - | Not Used |
| 118 | 40A | Rear Defroster |
| 201 | - | Park Lamp |
| 202 | - | Fuel Pump |
| 203 | - | Not Used |
| 204 | - | Quarter Flip Window Motor |
| 205 | - | Rear Wiper |
| 206 | - | Rear Washer |
| 207 | - | Wiper Run/Park |
| 208 | - | Wiper HI/LOW |
| 209 | - | Front Washer |
| 301 | - | Horn Relay |
| 302 | - | Gasoline only-A/C (CASS) Diesel only-Injector Driver Module Power Relay |
| 303 | - | Blower Motor |
| 304 | - | EEC Power |
| 401 | - | Not Used |
| 501 | - | Powertrain Control Module Diode |
| 502 | - | A/C Clutch Diode |
| 503 | - | Not Used |
| 601 | 30A | Power Windows |
| 602 | 60A | Four Wheel Anti-Lock Brake Module |
